What bar rack clamp sizes are available?



  Shop for clamps


  A bar rack clamp has two moveable jaws   A bar rack clamp has a long, metal bar with two moveable jaws. The jaws can both be adjusted and re-positioned to allow the mouth to open as wide as possible (depending on the length of the bar).

  Different types of bar rack clamps have different capabilities

Similarly to the standard types, there are five different models of bar rack clamps within its category. These are standard-duty, standard-duty long reach, medium-duty, medium-duty long reach, and heavy-duty.

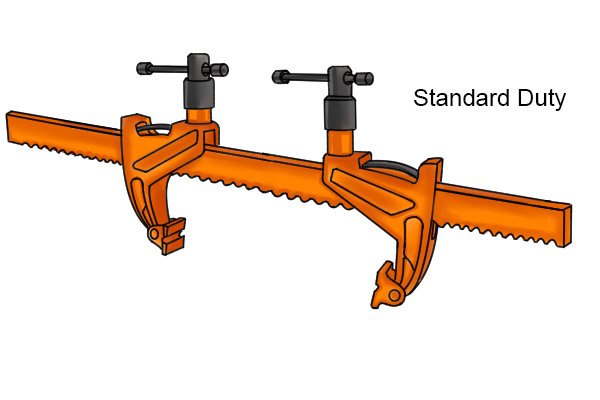

Standard-duty


  Standard duty bar rack clamp

Jaw opening

Smallest available: 600mm (24″ approx.).

Largest available: 2400mm (96″ approx.).



  Standard-duty bar rack clamp throat depth

Throat depth

All sizes: 60mm (2.5″ approx.).





Standard-duty long reach


  Standard-duty long reach bar rack clamp

Jaw opening

Smallest available: 600mm (24″ approx.).

Largest available: 2400mm (96″ approx.).



  Standard-duty long reach bar rack clamp throat depth

Throat depth

All sizes: 120mm (4.5″ approx.).





Medium-duty


  Medium-duty bar rack clamp

Jaw opening

Smallest available: 900mm (36″ approx.).

Largest available: 2100mm (84″ approx.).



  Medium-duty bar rack clamp throat depth

Throat depth

All sizes: 90mm (3.5″ approx.).





Medium-duty long reach


  Medium-duty long reach bar rack clamp

Jaw opening

Smallest available: 900mm (36″ approx.).

Largest available: 2100mm (84″ approx.).



  Medium-duty long reach bar rack clamp throat depth

Throat depth

All sizes: 200mm (8″ approx.).

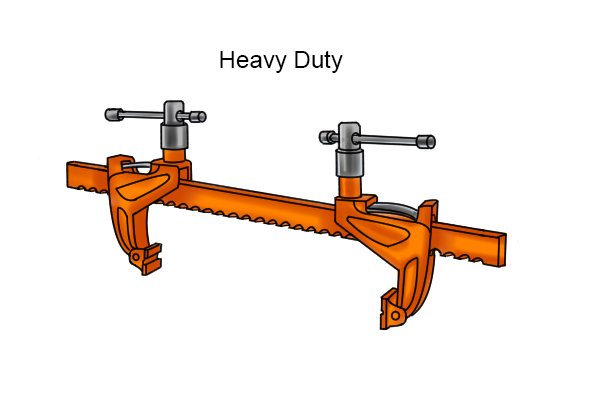

Heavy-duty


  Heavy-duty bar rack clamp

Jaw opening

Smallest available: 2100mm (84″ approx.).

Largest available: 2700mm (108″ approx.).



  Heavy-duty bar rack clamp throat depth

Throat depth

All sizes: 115mm (4.5″ approx.).
