What are the parts of a rack clamp?



  Shop for clamps


Parts of a rack clamp

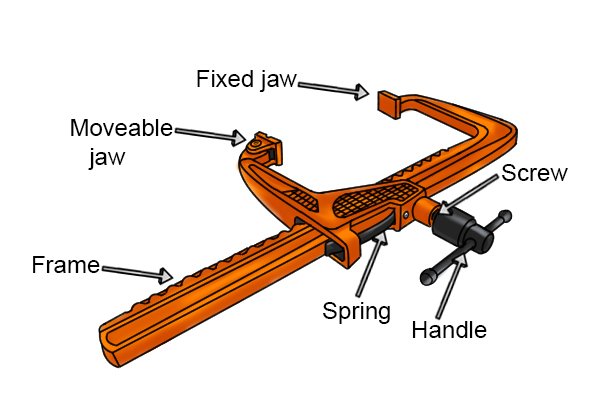

  Parts of a rack clamp   A rack clamp consists of a frame, two jaws, a screw, a handle and a spring.



Frame

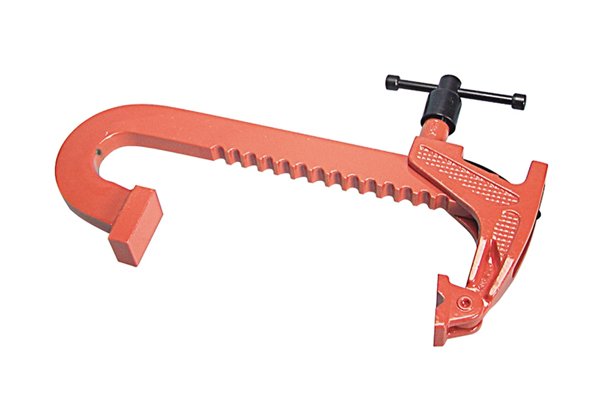

  The frame is the largest part of a rack clamp

The frame is also known as a bar, and it is the largest part of the clamp.



Usually, one end curves round to make up the fixed jaw, whilst the moveable jaw rests on the other end of the frame, and can be manoeuvred along it.



  The length of the frame determines the width of the jaw opening   The length of the frame determines how wide the jaws of a rack clamp can open.



Jaws


  A rack clamp has two jaws

The purpose of the jaws is to grip on to the workpiece during clamping.



A rack clamp has two jaws, which are parallel to one another.

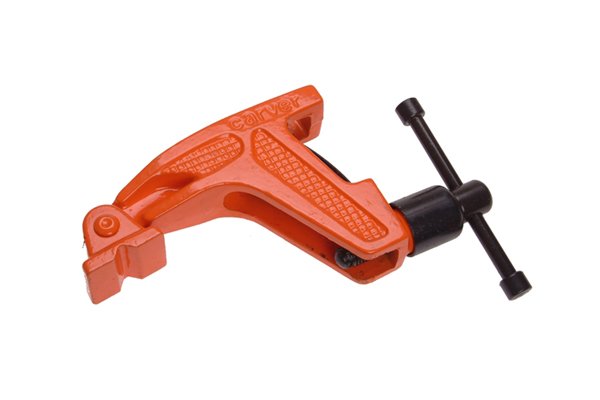

  The moveable jaw can be disconnected and reversed

One jaw is fixed and cannot be moved. The other jaw is moveable and can be adjusted, allowing the jaws to be opened and closed.



The moveable jaw is spring-loaded, meaning when pressure is placed upon the spring, the jaw is loosened and can be re-positioned. It can also be disconnected from the frame and reversed, for versatility.

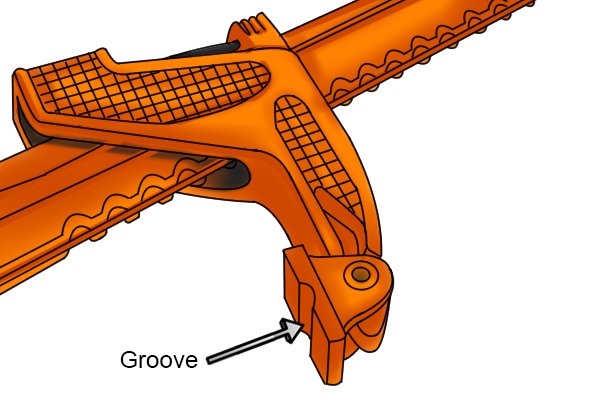

  The moveable jaw has a small groove for gripping tubed objects   The moveable jaw commonly has a groove in its surface, to allow the clamp to grip on to tubed or irregularly shaped objects.



Spring

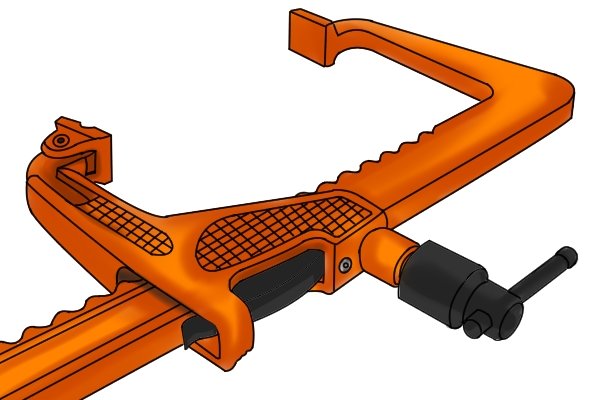

  The moveable jaw is spring-loaded   A rack clamp has a spring which allows the moveable jaw to be adjusted when pressure is placed upon it. Similarly, when the pressure is removed the spring ensures the jaw stays firmly in position.



Screw

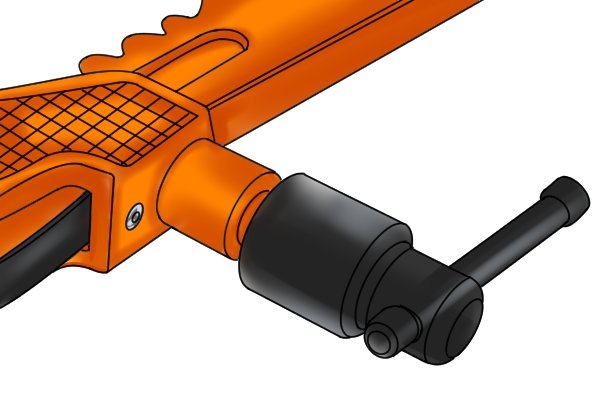

  A rack clamp has a small integral screw   A rack clamp has a small integral screw which controls the moveable jaw by placing pressure on the spring when rotated. The end of the screw is fitted with a collet for the handle to pass through.



Handle


  A rack clamp has a thin sliding pin handle

The handle is used to rotate the integral screw and adjust the moveable jaw. A rack clamp usually has a long, thin sliding pin handle, which makes it easy to gain extra leverage when tightening the screw.



When the handle is turned anti-clockwise jaw will open and when it’s turned clockwise the jaw will close.
