What drill press vice sizes are available?
|
|
|
|
|
|
|
|
|
|
|
|
Shop for Drill Press Vices |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|

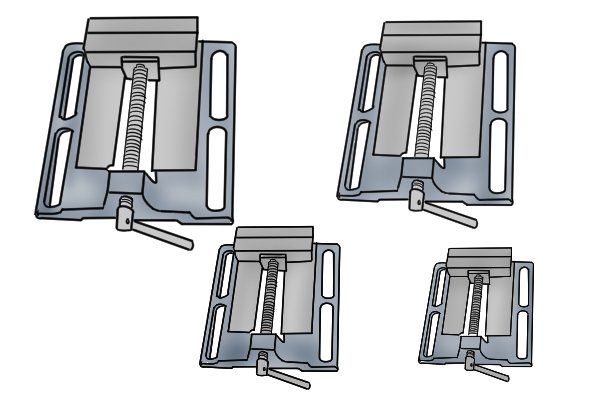

Drill press vices are available with various jaw widths, ranging from smaller light-duty models, to larger heavy-duty models. As the jaw width increases, so does the overall size of the vice to be in proportion with the jaws. |
|
|
|
|
|
|
|
 |
|
The following dimensions apply to all types of drill press vice. |
|
|
|
|
|
|
|
|
|
Weight
|
|
|
 |
|
The weight of a drill press vice can range from 3 lbs up to 55 lbs (1.5-25 kg approx.), depending on the size of the vice. |
|
|
|
|
|
|
|
|
|
Jaw width
|
|
|
 |
|
The jaw width is how wide the jaws are from one side to another and is measured by the horizontal distance along the top of the jaw edge.
Smallest available: 65mm (2.5″ approx.)
Largest available: 200mm (8″ approx.) |
|
|
|
|
|
|
|
|
|

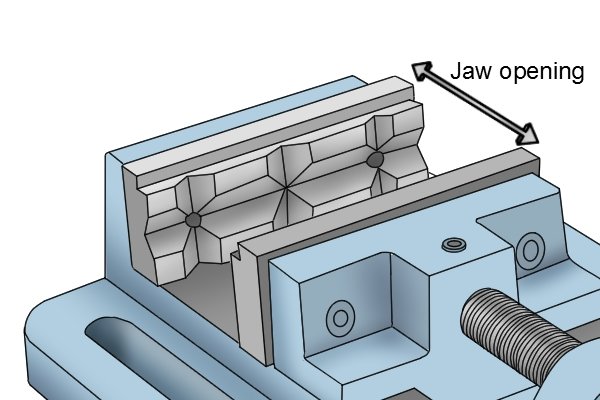

Jaw opening
|
|
|
 |
|
The jaw opening of a vice is how far the mouth of the jaws can open.
Smallest available: 50mm (2″ approx.)
Largest available: 200mm (8″ approx.) |
|
|
|
|
|
|
|
|
|
Throat depth
|
|
|
 |
|
The throat depth is how deep the jaws of a vice are and is measured by the vertical distance from the top edge of the jaws down to the base.
Smallest available: 25mm (1″ approx.)
Largest available: 50mm (2″ approx.) |
|
|
|
|
|
|
|
|
|
How to choose a drill press vice
|
|
|
 |
|
The size of the vice needed depends on the size of the material to be clamped. A user will need to make sure that the opening of the vice jaws is wide enough to hold the workpiece in hand.
A vice with a smaller jaw width and opening will be more restricting than a bigger vice, however it may also be easier to use and manoeuvre as its smaller design means it will be lighter. |
|
|
|
|
|
|
|
 |
|
Weight is another aspect to consider when purchasing a machine vice. Although most drill press machines will have a table that is capable of holding any weight of vice, it is always important to check. To find out what weight capacity your machine’s table has, check the product specifications. |
|
|
|
|
|
|
|
 |
|
For more information on the different vice dimensions, see What are the different vice dimensions? |
|
|
|
|
|
|
