How to rotate the jaws on a rotating vice


	Shop for Multi-purpose Vices


		The jaws on a rotating multi-purpose vice can swivel 180 degrees so that either the regular jaws or the pipe jaws can be on top. Before rotating the jaws, you will need to identify the part of the vice that can unlock the jaws, as this can vary depending on the model.

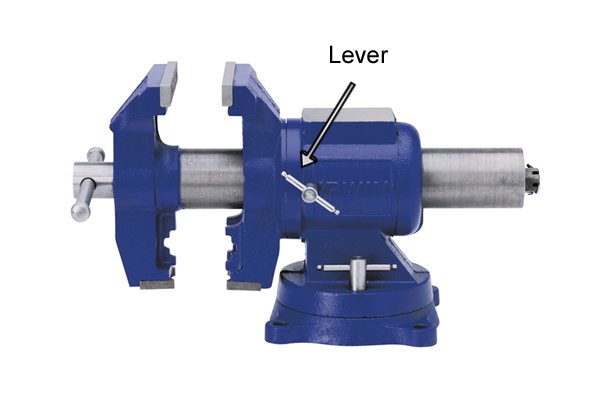

		Some rotating multi-purpose vices have a lever, located on the side of the vice’s main body, that can unlock and re-lock the jaws….

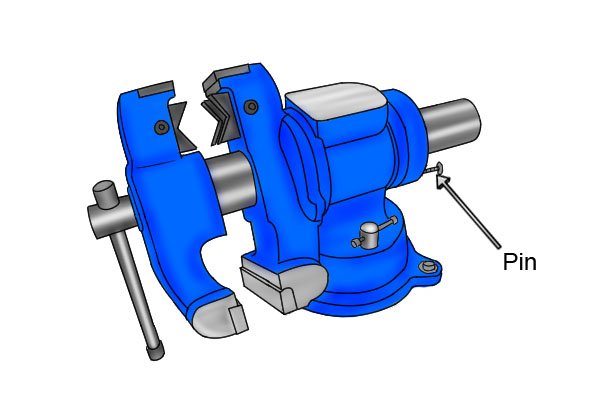

		…Whereas other models have a pin on the back of the main body that will perform the same action.

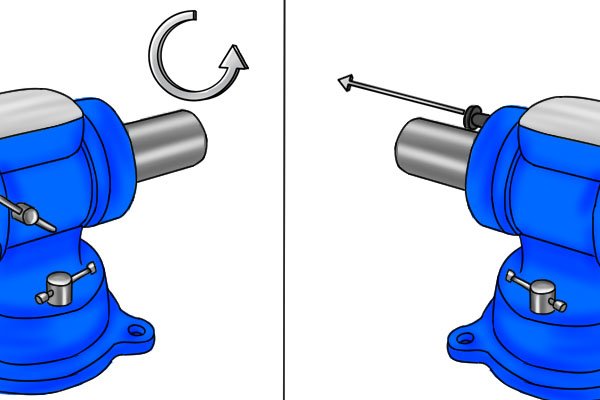

		Step 1 – Unlock jaws Unlock the vice jaws by rotating the lever anti-clockwise, or pulling the pin outwards, depending on which model of vice you have.

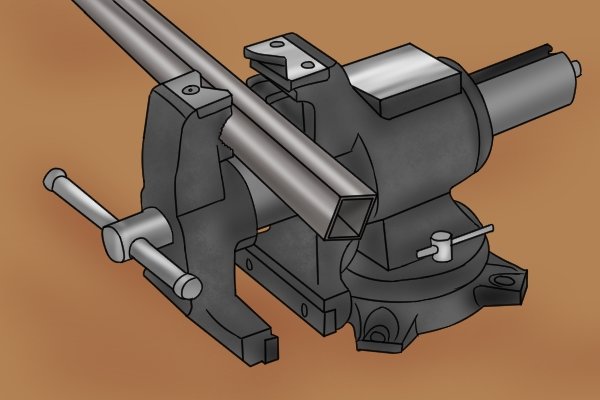

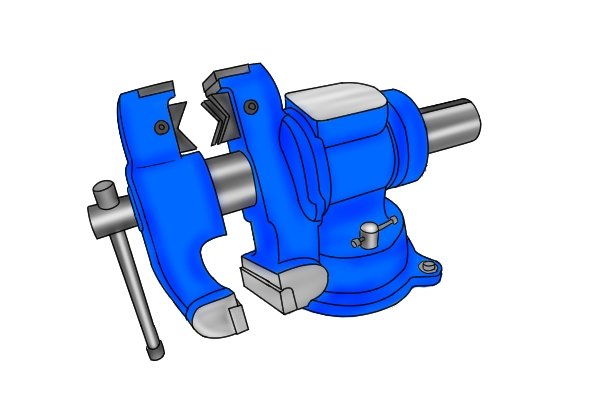

		Step 2 – Rotate jaws Rotate the jaws until they are in the best working position for the task in hand. The jaws can also be rotated to make clamping objects within the pipe jaws more convenient.

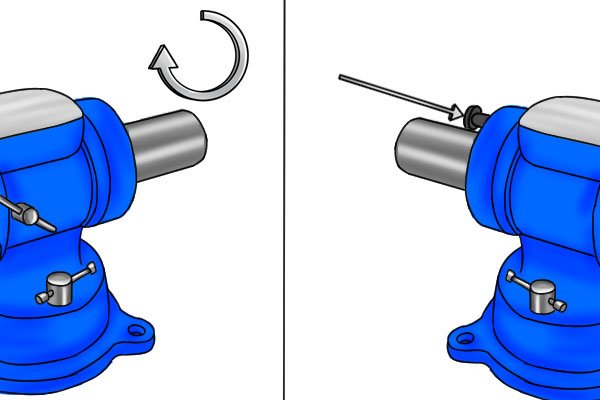

		Step 3 – Lock jaws When in the most convenient working position, lock the jaws by either turning the lever clockwise or pushing the pin inwards, depending on the particular model.

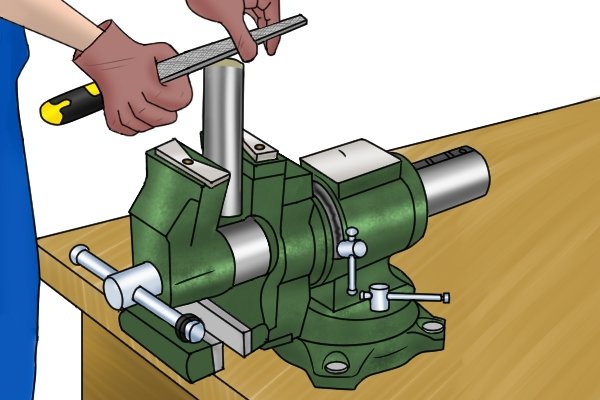

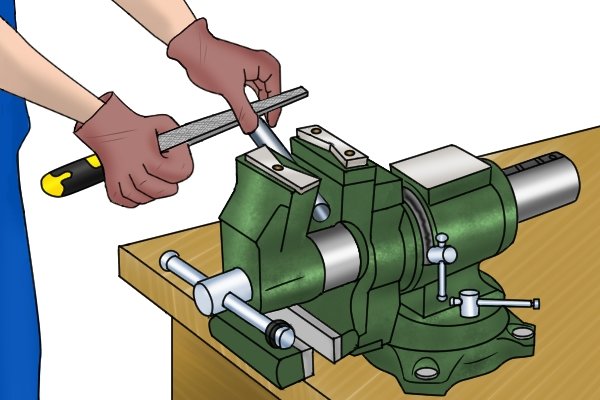

		Step 4 – Clamp workpiece Place your workpiece within the jaws of the vice and clamp tightly to hold it in position.


		Your workpiece is now held securely and ready to be worked upon!
