How to reverse the jaws on a reversible vice
|
|
|
|
|
|
|
|
|
|
|
|
Shop for Multi-purpose Vices |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The jaws on a reversible multi-purpose vice can be easily swapped to increase the clamping capacity for holding larger workpieces. |
|
|
|
|
|
|
|
|
|
Step 1 – Release screw

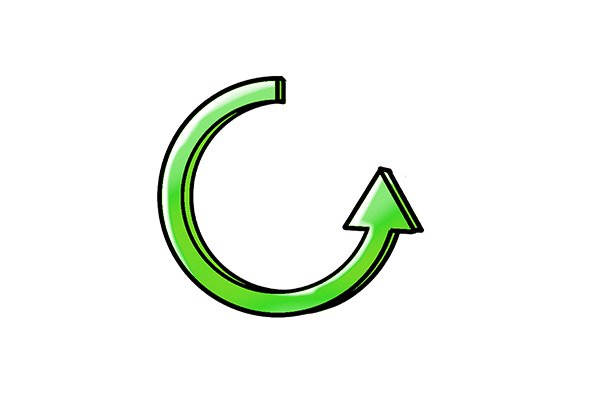

Rotate the handle in an anti-clockwise direction until the sliding jaw fully opens and the screw is no longer engaged in the nut, thus releasing it. |
|
|
|
|
|
|
|
|
|
Step 2 – Remove jaw

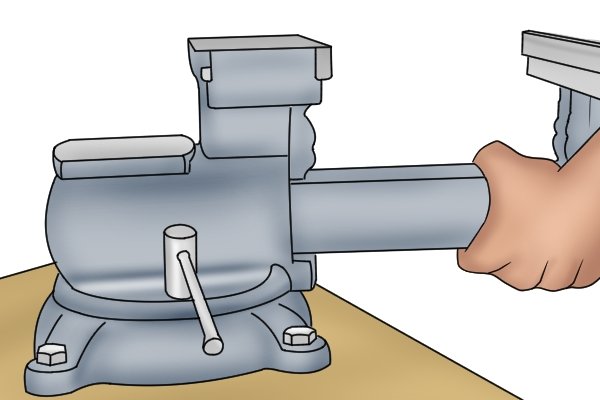

Remove the sliding jaw from the vice’s main body. |
|
|
|
|
|
|
|
|
|
Step 3 – Rotate vice
Rotate the vice body around 180 degrees. |
|
|
|
|
|
|
|
|
|
Step 4 – Insert jaw

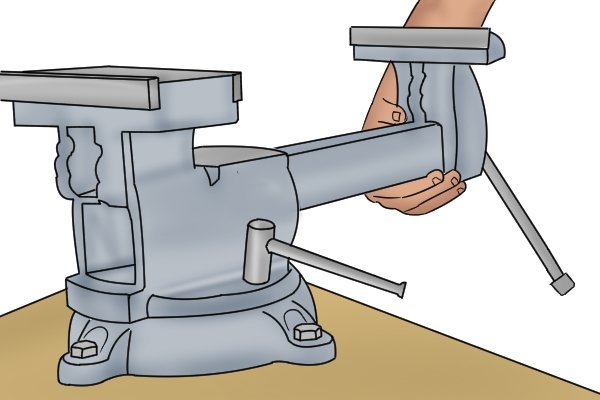

Re-insert the sliding jaw, this time into the back of the vice so that the jaws are reversed. |
|
|
|
|
|
|
|
|
|
Step 5 – Connect screw

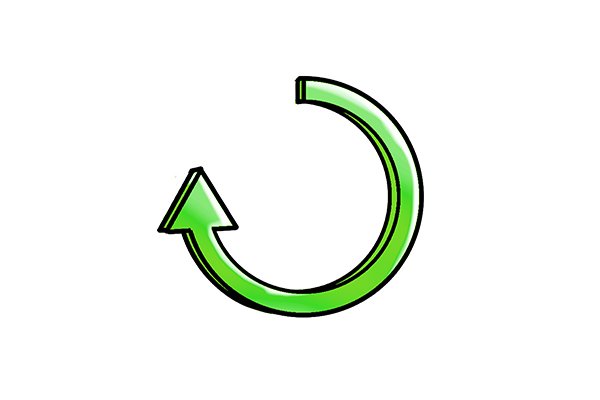

Rotate the handle in a clockwise direction until the screw is reconnected with the nut and the sliding jaw is parallel to the stationary jaw. |
|
|
|
|
|
|
|
|
|
Step 6 – Clamp workpiece
Place your workpiece within the jaws of the vice and clamp tightly to hold it in position. |
|
|
|
|
|
|
|
|
|
The vice is now reversed and the workpiece is held securely to be worked upon. |
|
|
|
|
|
|
