What angle vice sizes are available?
What angle vice sizes are available? |
||||
 |
Angle vices are available with various jaw widths, ranging from smaller light-duty models, to larger heavy-duty models. As the jaw width increases, so does the overall size of the vice to be in proportion with the jaws. | |||
 |
The following dimensions apply to all types of angle vice. | |||
Weight |
||||
 |
The weight of an angle vice can range from 8 lbs (3.5 kg approx.) up to 210 lbs (95 kg approx.), depending on the overall size of the vice. | |||

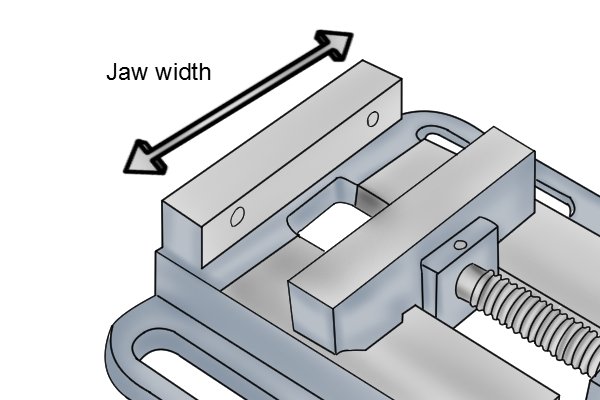

Jaw width |
||||
 |
The jaw width is how wide the jaws are from one side to another and is measured by the horizontal distance along the top of the jaw edge.
Smallest available: 50mm (2″ approx.) Largest available: 200mm (8″ approx.) |
|||

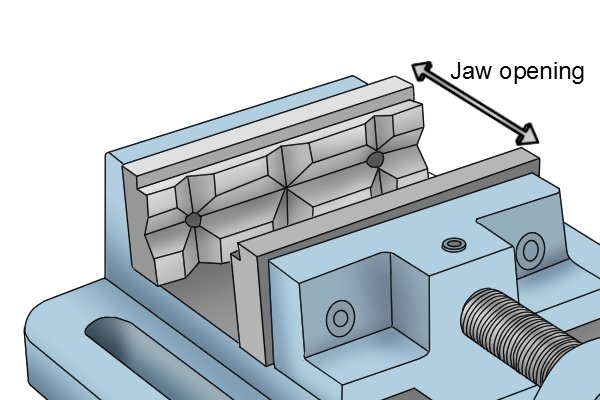

Jaw opening |
||||
 |
The jaw opening of a vice is how far the mouth of the jaws can open.
Smallest available: 50mm (2″ approx.) Largest available: 200mm (8″ approx.) |
|||
Throat depth |
||||
 |
The throat depth is how deep the jaws of a vice are and is measured by the vertical distance from the top edge of the jaws down to the base.
Smallest available: 25mm (1″ approx.) Largest available: 60mm (2.5″ approx.) |
|||
How to choose an angle vice |
||||
 |
The size of the vice needed depends on the size of the material to be clamped. A user will need to make sure that the opening of the vice jaws is wide enough to hold the workpiece in hand. A vice with a smaller jaw width and opening will be more restricting than a bigger vice, however it may also be easier to use and manoeuvre as its smaller design means it will be lighter. | |||
 |
Weight is another aspect to consider when purchasing a machine vice. Although most drill press and milling machines will have a table that is capable of holding any weight of vice, it is always important to check.
To find out what weight capacity your machine’s table has, check the product specifications. |
|||
 |
For more information on the different vice dimensions, see What are the different vice dimensions? | |||
