What are the parts of a hand-held vice?

Shop for Hand Vices

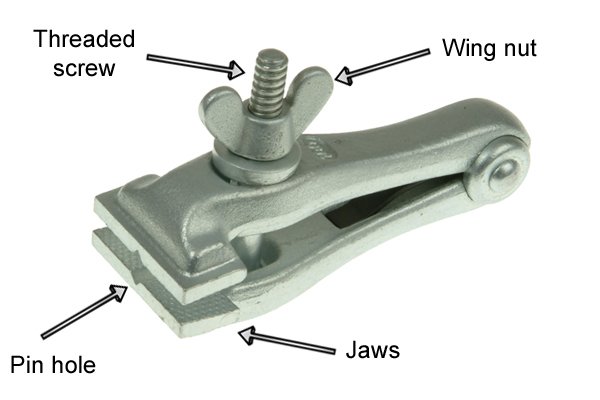

     parts of a hand-held vice

Jaws

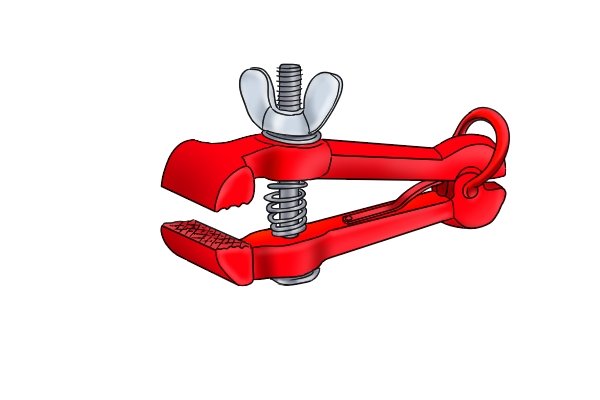

hand vice The jaws of a hand-held vice are located at one end of a pair of handles, which are then attached together at the other end, similarly to a pair of tongs.
textured hand-held vice jaws The face of each jaw is textured in order to grip a workpiece, so that it does not slip out of the jaws.

Screw

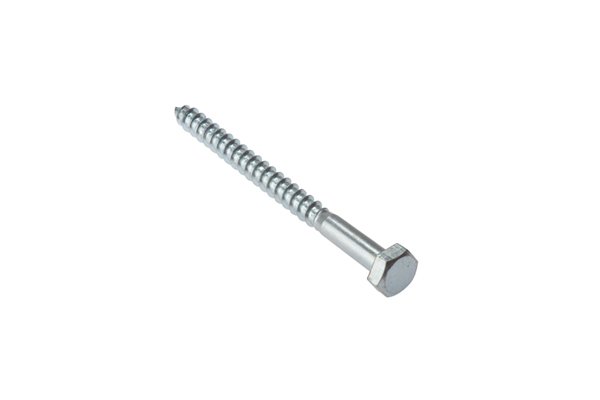

threaded screw The screw is the part that is in control of opening and closing the jaws of the vice. The length of this screw determines how wide the jaws of the vice can be opened.

The body of the screw is threaded so that it remains in place once the vice is closed around a workpiece.

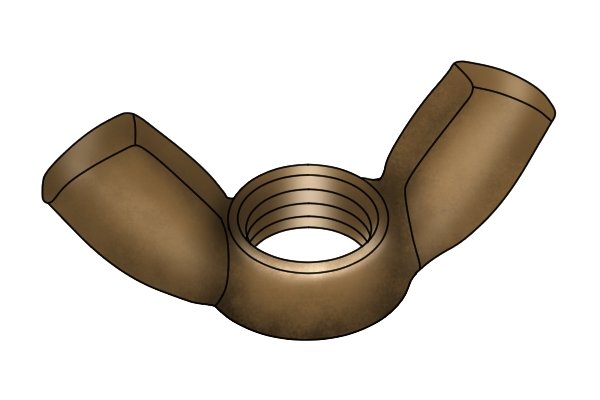

wing nut The screw is tightened by a wing nut.

Additional features

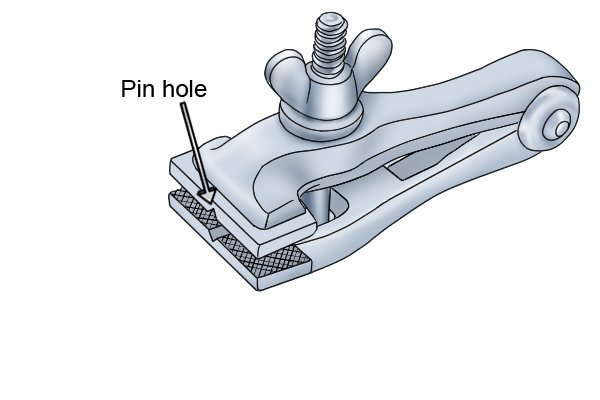

hand vice with pin hole

Pin hole

Some models of hand-held vice have a pin hole in the jaws, in order to grip objects of a small diameter, such as metal wire.

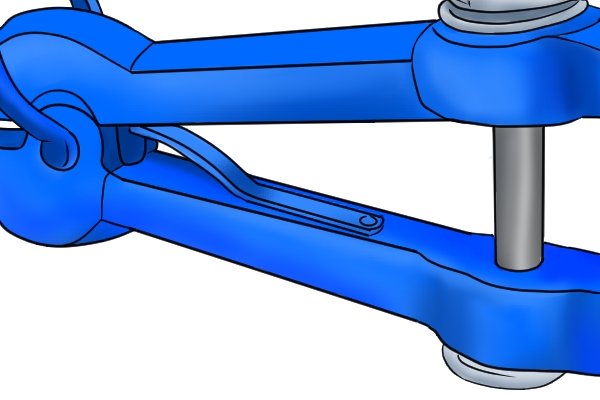

spring catch

Spring-action

Some models can also have a spring-action to keep the jaws open. This works by separating the handles by pushing them out in opposite directions. This is a useful feature as it keeps the jaws from inconveniently coming together when attempting to insert a workpiece.
