How to measure TPI




  Shop for Saws


  Measuring TPI

When purchasing saws, the TPI will usually be listed in the product spec. However, there may come a time when you don’t have this information to hand, and need to find the number yourself.



Please note: When measuring TPI, you should always begin the measurement in the centre of the gullet.



  Measure one inch along blade

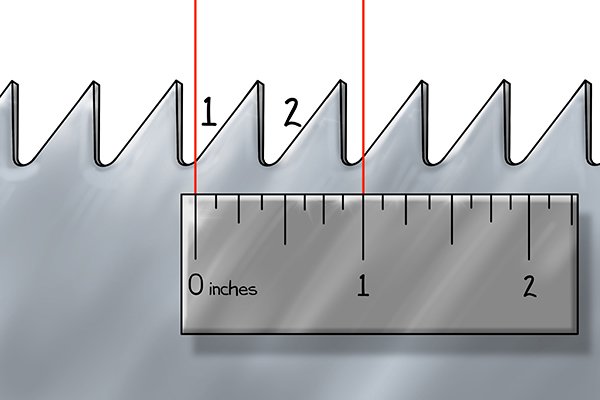

Step 1 – Measure 1 inch along blade

Measure 1 inch along the blade, from the centre of the gullet.

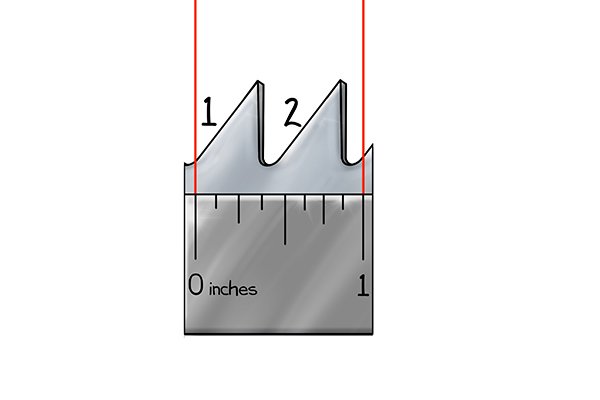

  Saw blade with two teeth per inch





Step 2 – Count teeth

Count the number of teeth in that 1 inch space. This is the blade’s TPI.



The blade on the left has 2 Teeth Per Inch.





A few more examples

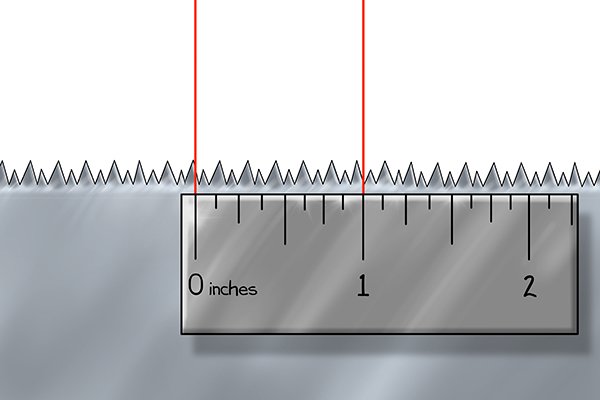

  blade for sawing, plywood and MDF. It has 12 Teeth Per Inch.

This is an example of a blade for sawing plywood and MDF.



It has 12 Teeth Per Inch.

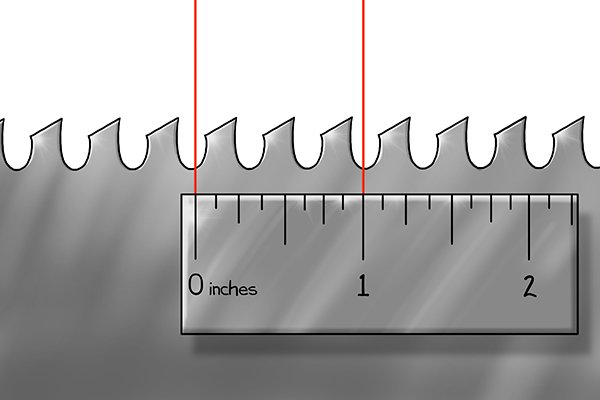

  Example of a blade for sawing masonry, 3 teeth per inch

And this is an example of a blade for sawing masonry.

It has 3 Teeth Per Inch.

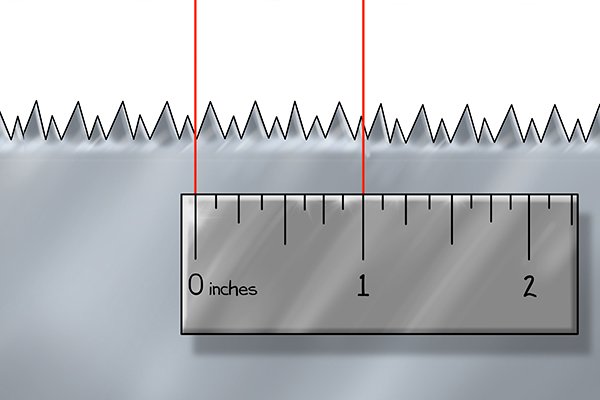

  7.5 teeth per inch

Please note: A blade’s TPI may not always be a whole number.


The blade on the left has 7.5 Teeth Per Inch. Within the 1 inch space, there are 7 and a half teeth visible.
