How to change the blade on a traditional veneer saw?
How to change the blade on
|
||||
| Please note: How this is done may vary depending on the make and model. One method is shown below: | ||||
How is the blade attached? |
||||
 |

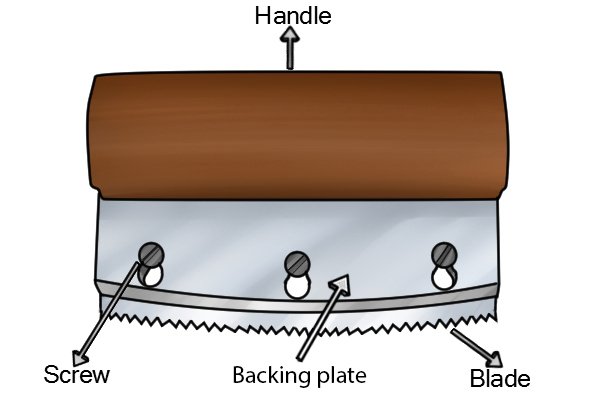

A traditional veneer saw has a wooden handle with a curved metal plate set into it. The blade is mounted on this plate and secured using 3 screws. The blade is slightly longer than the backing plate, so the teeth can reach the material. | |||
 |
A traditional veneer saw viewed from the back | |||
Removing the blade |
||||
 |

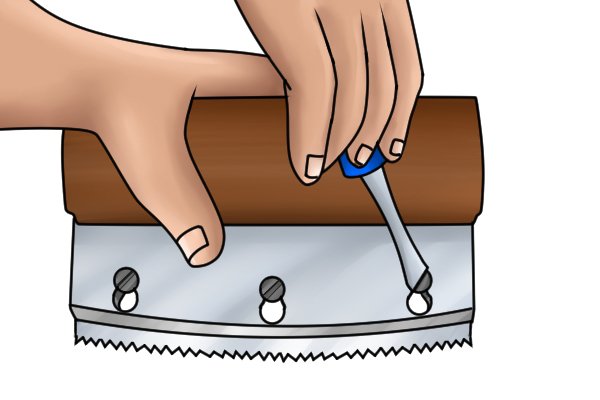

Step 1 – Loosen screwsLoosen the screws holding the blade to the backing plate. |
|||
 |
Step 2 – Slide blade forwardsOnce the screws are loosened you can slide the blade forwards… |
|||
 |
Step 3 – Pull blade off backing plate…and pull it off the backing plate. |
|||
Installing the blade |
||||
 |

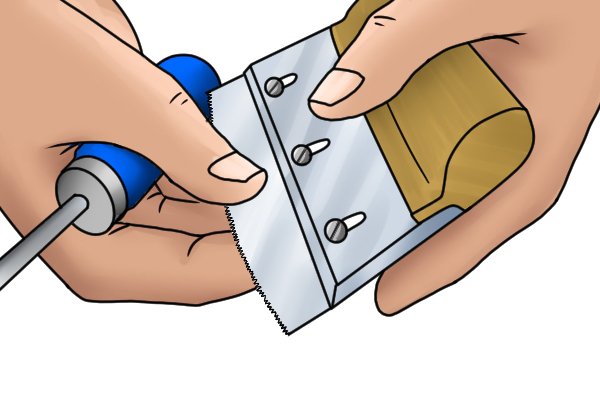

Step 1 – Place blade onto backing plateEnsure the screws on the blade are loosened before sliding it onto the backing plate. |
|||
 |
Step 2 – Tighten screwsTighten the screws to secure the blade. |
|||
