How to change a coping saw blade





   Shop for Coping Saws




Please note: How this is done may vary depending on the make and model. One method is shown below:






Arm, Frame, Handle, Blade





How is the blade attached?


  A coping saw has a removable blade mounted in a metal frame.

A coping saw has a removable blade mounted in a metal frame. Like all frame saws, the blade must be stretched taut in order to cut efficiently.



The blade is held in place by two metal arms on either end of the frame. These arms have thin slots in, to accept the blade.




Pin secures blade of coping saw in place


On either end of a coping saw blade is a little pin. When the saw is tightened, the frame pulls outwards, stretching the blade. The little pins pull against the frame’s arm, preventing the blade from falling out.



  Wonkee Donkee says "How a coping saw blade is installed or removed may vary depending on the brand. This is just one example"



Removing the blade

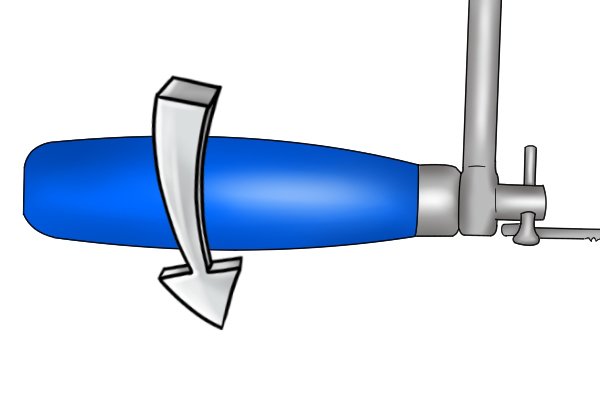

Step 1: Ensure the handle is loose by turning it in a anticlockwise direction.





Step 1 – Turn handle anti-clockwise

Turn the handle in an anti-clockwise direction, until the blade is released from the frame’s arms.

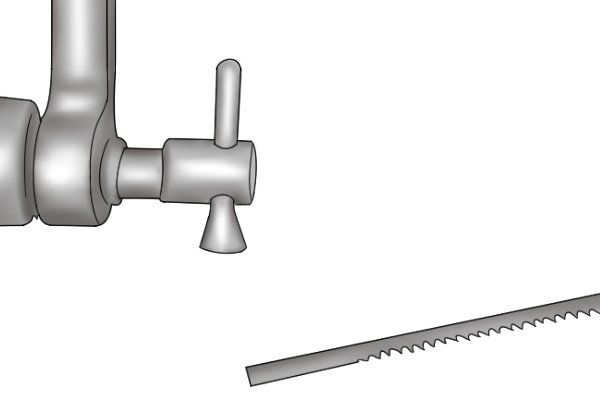

  Remove the blade from the frame completely, and set it aside

Step 2 – Remove blade

Remove the blade from the frame completely, and set it aside







Inserting the blade


  Ensure the handle is loose by turning it in an anticlockwise direction.

Step 1 – Turn handle anti-clockwise

Ensure the handle is loose by turning it in an anti-clockwise direction.

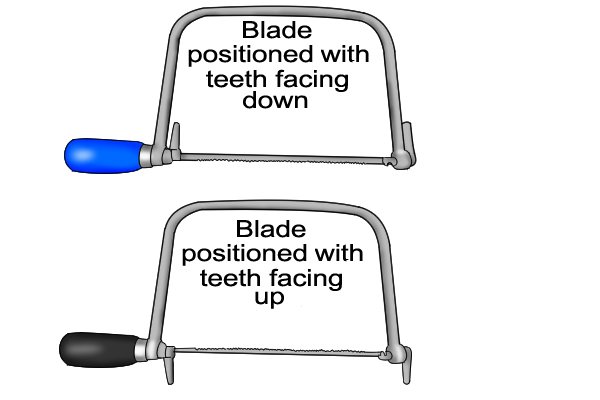

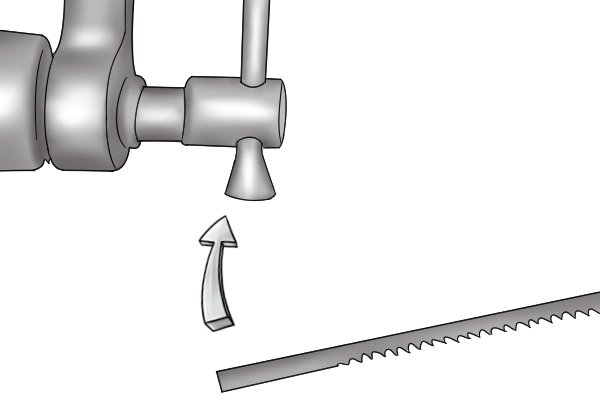

  Step 2 Insert a new blade into the slots on the arms of the frame. Ensure the teeth are on the outside of the frame, and are pointing back towards the handle. This is to ensure that the saw cuts on the pull stroke.

Step 2 – Insert new blade

Insert a new blade into the slots on the arms of the frame.



Ensure the teeth are on the outside of the frame, and are pointing back towards the handle. This is to ensure that the saw cuts on the pull stroke



  Once the blade is in place, turn the handle in a clockwise direction

Step 3 – Turn handle clockwise

Once the blade is in place, turn the handle in a clockwise direction.



  Once the blade is in place turn the handle in a clockwise direction.

This causes the frame and its arms to pull outwards, stretching the blade.





Changing the angle of the blade


  Some models of coping saw allow you to rotate the blade to any angle, to make certain cuts easier.

Some models of coping saw allow you to rotate the blade to any angle, to make certain cuts easier.



How you adjust the blade angle will vary depending on the make and model. One method is shown below:

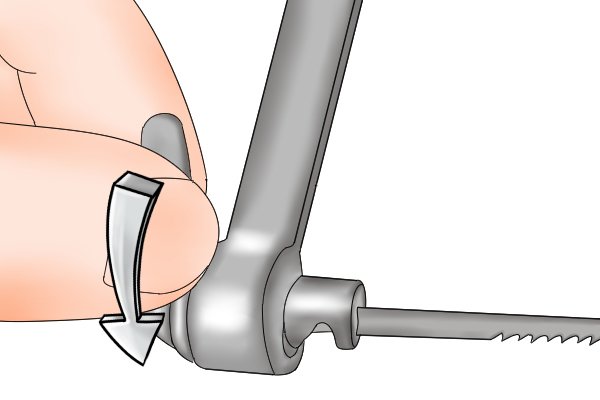

  Before attempting to adjust the blade, turn the handle in an anticlockwise direction

Step 1 – Turn handle anti-clockwise

Before attempting to adjust the blade, turn the handle in an anti-clockwise direction, but only enough to slacken the blade. Turning it too much will cause the blade to fall out.



  You can adjust the blade to any angle you wish, but you must ensure both sides match up, or the blade will be twisted.

Step 2 – Turn metal ‘wings’

When you have done this, you can turn the metal ‘wings’ on either end of the frame to adjust the blade angle. You can either move them towards or away from you.



You can adjust the blade to any angle you wish, but you must ensure both sides match up, or the blade will be twisted.



  Wonkee Donkee says "Don't forget to tighten the handle again before you use the saw!!"
