How to use a dual pipe bender
|
|
|
|
|
|
|
|
|
|
|
|
|
Shop for Pipe Benders
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

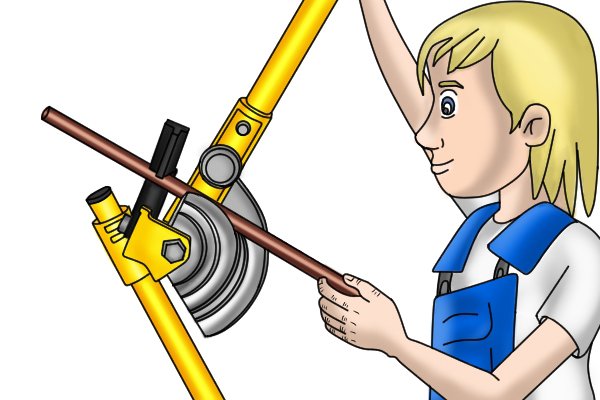

Step 1 – Insert pipe
Open the handles of the pipe bender out fully and slot the pipe into the appropriately sized former. |
|
|
|
|
|
|
|
|
|
Step 2 – Secure pipe
Clip the holding clamp over the end of the pipe and slot in the guide between the top of the pipe and the handle.
Pull the handle down slightly to hold the pipe in position. |
|
|
|
|
|
|
|
|
|

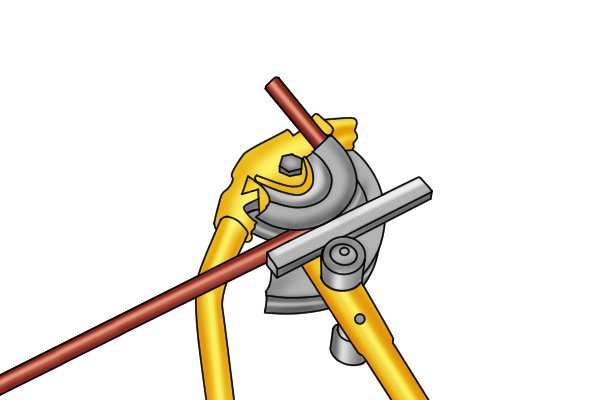

Step 3 – Bend pipe
Pull down the top handle slowly, bending the pipe around the former until you reach the desired angle.
Line up the pipe with the angle line you desire on your former – this will require some of your own judgement. |
|
|
|
|
|
|
|
|
|

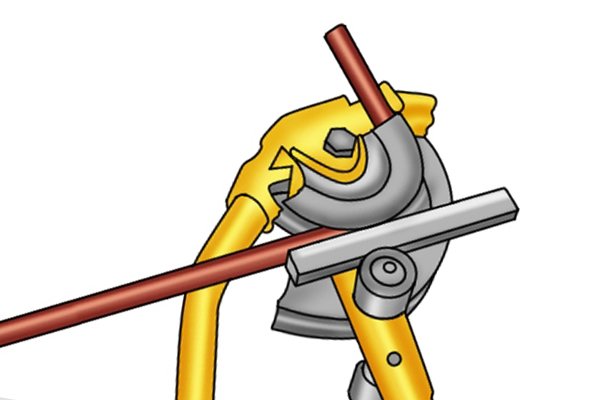

Step 4 – Continue bend
Once the pipe is at the required angle, pull just past the angle line, as, when released, the pipe will spring back slightly. |
|
|
|
|
|
|
|
|
|

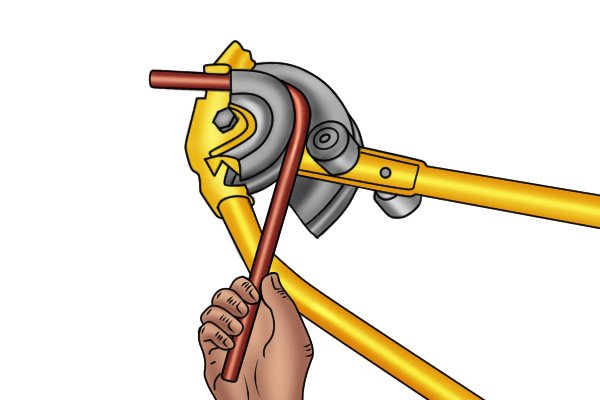

Step 5 – Take out pipe
Open the pipe bender’s handles and remove the guide and pipe now that it has been bent. |
|
|
|
|
|
|
|
|
|
Step 6 – Make any further bends
If the piece of pipe requires any further bending (for example when making saddle bends) repeat the process from step 1. |
|
|
|
|
|
|
