How to use a conduit pipe bender?

3rd March 2020


	How to use a conduit pipe bender


	Shop for Pipe Benders


			Step 1 – Mark pipe Mark on the pipe where the centre of your intended bend will be.

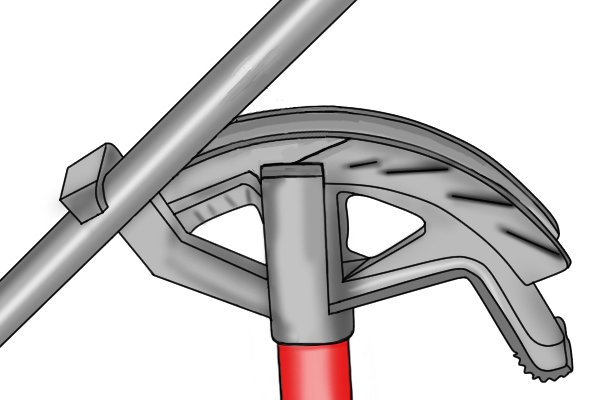

			Step 2 – Insert pipe Insert the pipe into the former with the holding clamp securing it in place. Line up your centre bend mark with the fulcrum mark on the former.

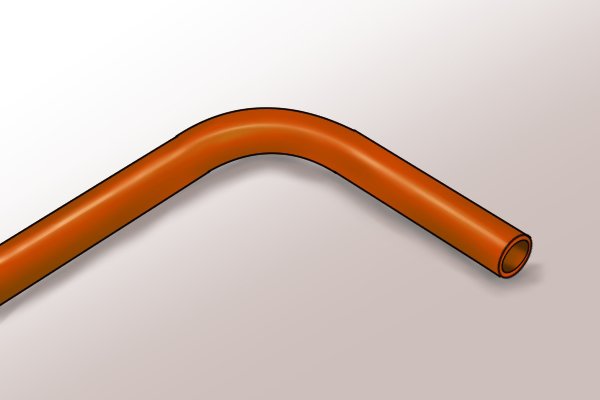

			Step 3 – Bend pipe Place the bender on the floor with the handle facing upwards. Place your foot on the foot press and slowly pull the handle down towards you whilst pushing on the foot press. When the angle marking of the angle you wish to create is facing vertically upwards on the former, the bend is complete. Bend slightly past the angle to allow for spring back.

			Step 4 – Remove pipe Pick up the tool and remove the pipe from the former. If any further bending is required, repeat the process from step 1.

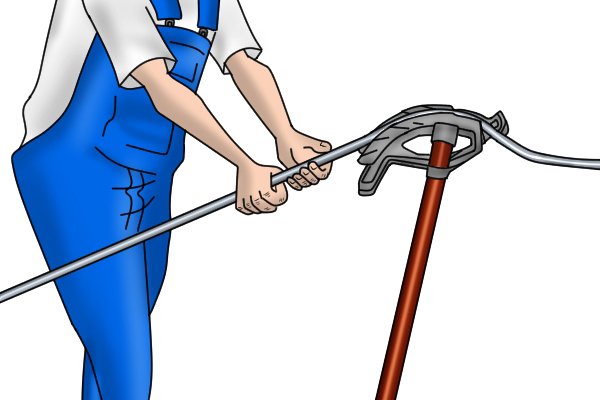

			If the next bend you need to make is in the opposite direction to the first, the bender will need to be used with the handle on the floor, as the pipe will not sit flat. The pipe bender is used in very much the same way, except force will be exerted by your hands to bend the pipe and the intended angle marking will be facing vertically downwards when the bend is complete.
