How to drill a pilot hole with a cordless screwdriver?

How to drill a pilot hole with a
cordless screwdriver

Shop for Cordless Screwdrivers

Wonkee Donkee says; Wonkee Donkee advises that you don’t use cordless screwdriver for drilling other than small pilot holes If you want to drill large holes then you should consider using a cordless drill driver.

Before you begin

Drill bit width and shank width

What size drill bit do I need?

The size of drill bit you need will depend on the size of the screw you want to insert.

A good rule of thumb is to select a drill bit that is slightly smaller than the width of the screw’s thread. This way, the drill bit will remove enough material to prevent splitting but will leave enough for the screw’s threads to bite into when its driven in.

Drill on top of screw You can check the sizes by holding the drill bit in front of the screw, and checking that the screw’s shank is no thicker.

Please note: Cordless screwdrivers all have hexagonal chucks, so ensure you select a drill bit with a hexagonal shank.

Selecting drill mode

Drill mode A cordless screwdriver that has multiple torque settings, may have a drill symbol on the adjustable torque ring. This indicates that it is capable of drilling holes.
Drilling Selecting the drill symbol on the torque ring automatically means that the cordless screwdriver will deliver the highest level of torque it can, in order to turn the drill bit.
User holding cordless screwdriver releasing trigger

Step 1 – Release trigger

Release the speed control trigger and allow the cordless screwdriver to come to a complete stop.

Insert drill bit into cordless screwdriver

Step 2 – Insert drill bit

If there is a bit already in the chuck, remove it, and insert the correct drill bit.

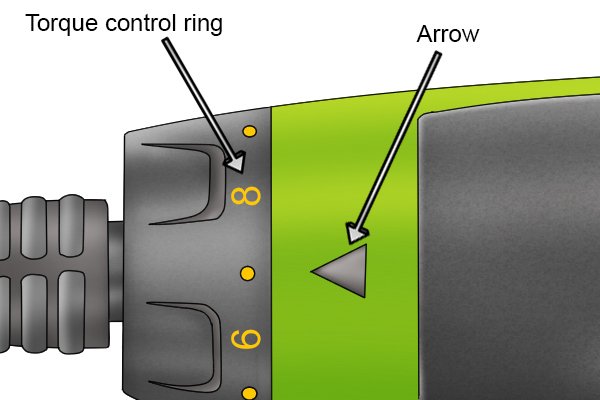

Torque control ring

Step 3 – Adjust torque ring

Adjust the torque control ring until the arrow is aligned with the drill symbol.

Now you are ready to drill your hole.

Drilling the pilot hole

squeezing trigger on cordless screwdriver Please note: The diameter and depth of the holes you can drill will depend on how powerful the cordless screwdriver is.

Step 1 – Squeeze trigger

When you are ready to begin, gently squeeze the trigger and apply light pressure to the cordless screwdriver in order to begin drilling your hole.

Drilling in pilot hole

Step 2 – Speed things up

Once the drill bit penetrates the material, you can apply more pressure to the trigger in order to drill at a faster speed.
