What to do if your jigsaw overheats



 Shop for Jigsaws


 Thermometer, temperature, heat

Cutting particularly thick materials or running a jigsaw at a low speed for an extended period can place too much stress on the motor and cause the tool to overheat.



You may also notice an electrical burning smell.

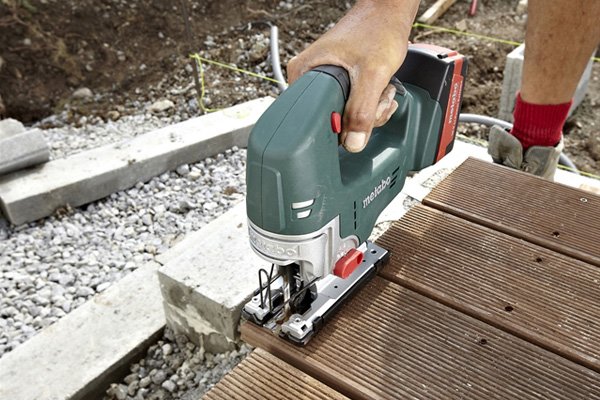

 Cordless jigsaw cutting through timber deckibg, jigsaw coming into contact with workpiece, cooling efficiency is reduced when jigsaw blade contacts workpiece

These signs indicate that the tool is being overworked and its internal fan is not able to cool the motor fast enough.



When the jigsaw runs without load, the fan is able to efficiently keep the motor cool. However, when it comes into contact with a workpiece, it begins to struggle, which can sometimes cause the tool to overheat.



 Jigsaw that has been removed from workpiece, holding running jigsaw without load

If this happens whilst you are using your jigsaw, withdraw the blade from the workpiece for a minute or two, but keep the jigsaw running.



This will enable air to circulate within the motor, cooling it down.

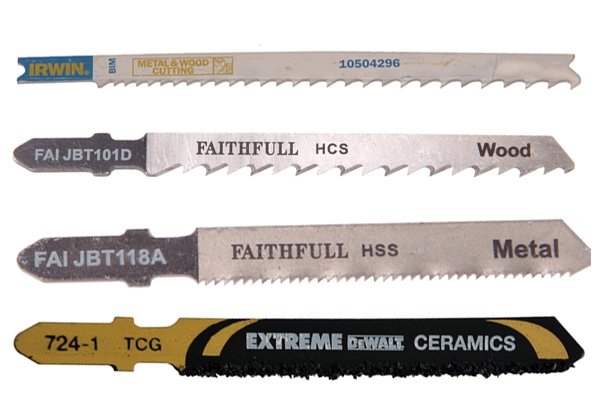

 Jigsaw blade materials, types of jigsaw blade, jigsaw blades for wood, metal and ceramic

To prevent your jigsaw overheating, make sure that you are using the correct blade and are running your tool at the optimum speed for the material you are working with.



 Using 110V jigsaw to cut thick timber on site, cutting thick wood with jigsaw It is also important that you don't use your jigsaw to cut workpieces thicker than the cutting capacity of your tool (specified in your jigsaw's manual).
