How to make a curved cut with a jigsaw



 Shop for Jigsaws


 Jigsaw scroll blades, blades for cutting curves with a jigsaw, curve-cutting blades To make curved cuts with a jigsaw, use a narrower scroll blade rather than a standard blade as it will be able to cut tighter curves without binding or breaking.

 Drawing curved cutting line, marking cut line on wood, drawing cutting line

Step 1 - Mark cutting line

With a pencil, draw onto your workpiece the line you want to cut, either using a stencil or freehand.

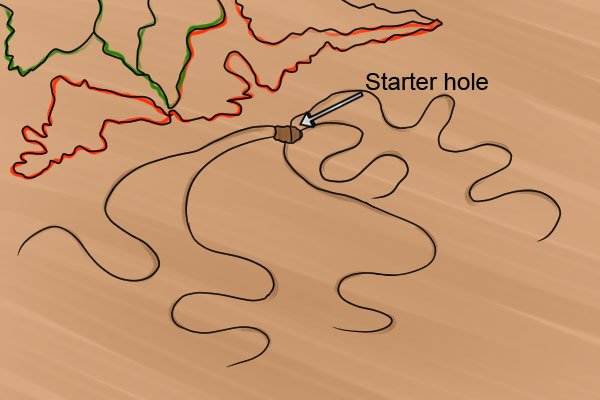

 Starter hole for intricate jigsaw cutting, curved cut with jigsaw, starter hole

Wonkee Donkee top tip:

If you are cutting a particularly intricate pattern, avoid starting a curved cut at the edge of the workpiece to ensure that the blade does not stray from the beginning of the cutting line.



Instead, drill a starter hole in the waste area of the material big enough to accommodate the width of the blade.



 Jigsaw at the beginning of a curved cut, start of curved cut, using jigsaw to cut curve in wood

Step 2 - Position jigsaw

Position the blade on the waste side of the cutting line, with the front of the shoe resting on the edge of the workpiece.



 Cutting curve in wood with jigsaw, making curved cut, curved cutting with jigsaw

Step 3 - Begin to cut

Turn on your jigsaw and wait for the blade to gather speed.



Then slowly start to follow the cutting line. Steer with your elbow, not your wrist and change your body position as you progress through the cut so that you are always behind the jigsaw.



 Jigsaw variable speed dial, speed control dial

Step 4 - Watch your speed

Regulate the rate of the jigsaw with the tightness of the curves it is cutting.



If you come to a tight curve, reduce the speed of the jigsaw using the variable speed dial. If you are cutting wood, you should cut especially slowly so that the blade is able to cut through the cross grain.





Wonkee Donkee says: 'Take your time and don't try to force the jigsaw through the cut. This may cause the blade to bend, resulting in a bevelled cut.'



 Relief cuts, cutting curves with a jigsaw, making relief cuts

Step 5 - Make relief cuts

Following tight curves continuously with a jigsaw can be tricky.



Make relief cuts to remove waste and help to prevent the blade from binding in tight corners.



 End of curved cut, finishing curved cut in wood with jigsaw

Step 6 - Complete cut

Continue to ease your jigsaw along the cutting line.



When you have completed the cut, evaluate your accuracy and, if necessary, tidy up the edges of your workpiece using a sanding block.
