What is a Phillips screw drive design?



What is a Phillips screw drive design?

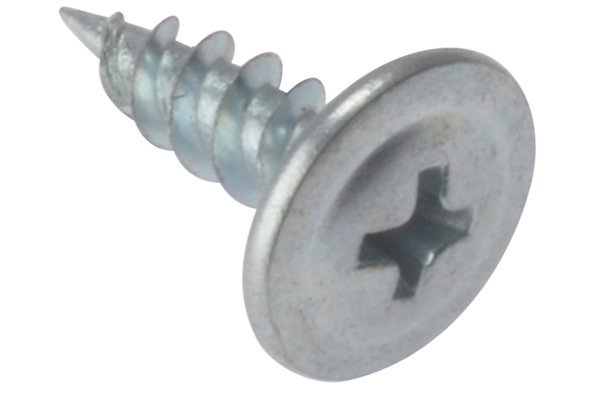

  Screw with philips drive

A Phillips drive is characterised by a cross-shaped recess with rounded edges at the cross sections

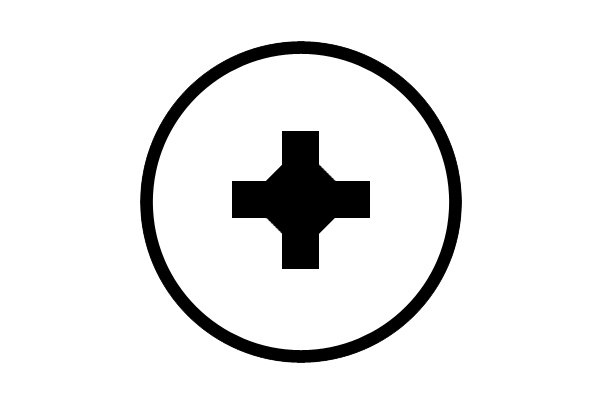

  Philips screw drive from above

Phillips drive as viewed from above.

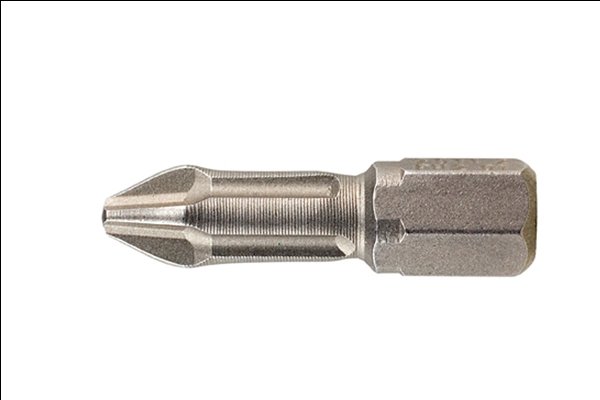

  Screwdriver bit with philips head

Which screwdriver bit?

A screw with a Phillips drive is designed to be driven with a Phillips screwdriver bit. Ensure you select the correct size bit for your screw.



For more information, see section: How to select the correct screwdriver bit for the screw.




Advantages    Disadvantages
  • Phillips bits have a blunt tip which allows the screwdriver bit to cam out when a lot of torque is applied. This prevents it from over tightening the screw

  • Compared to the slotted design, Phillips allows the screwdriver bit to sit more securely in the screw’s drive, allowing for greater torque to be applied



  • Frequent camming out can cause damage to the screw and the work surface, as well as wear down the screwdriver bit

  • The Phillips design looks very similar to the frearson and pozidriv design, which often leads to customers purchasing the wrong screwdriver bit for their screw, or vice versa
