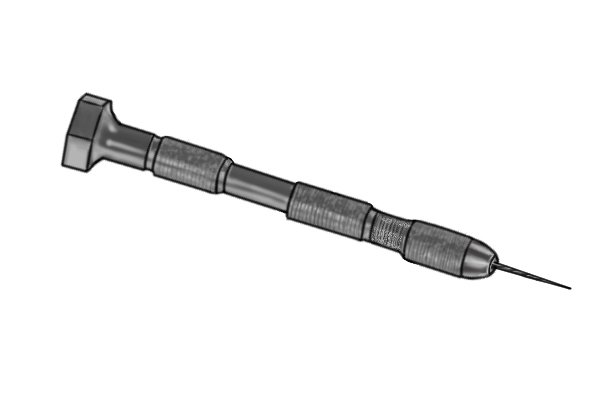

How to use a pin vice

Shop for Pin Chucks and Pin Vices

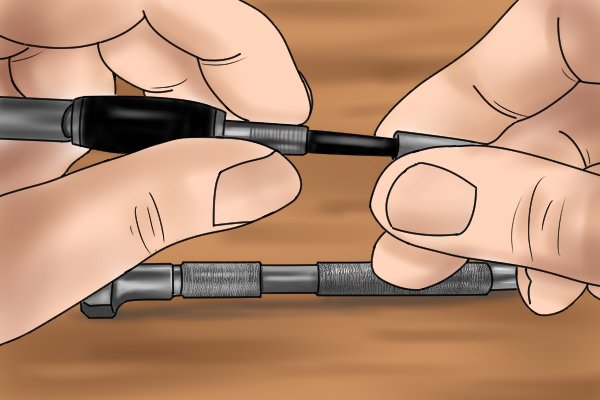

Step 1 – Insert collet

Unscrew the head and insert the required collet.

Depending on the surface of the material, it may be useful to use a bradawl to mark the place where you intend to drill.

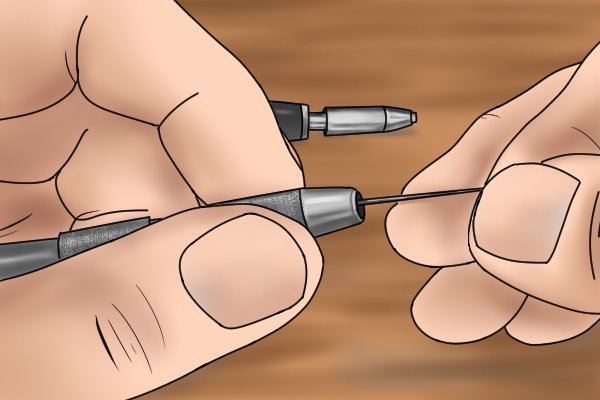

Step 2 – Insert drill bit

Half tighten the chuck, then insert your drill bit or other device into the collet jaws.

Step 3 – Tighten chuck head

Fully tighten the chuck head to secure the drill bit.

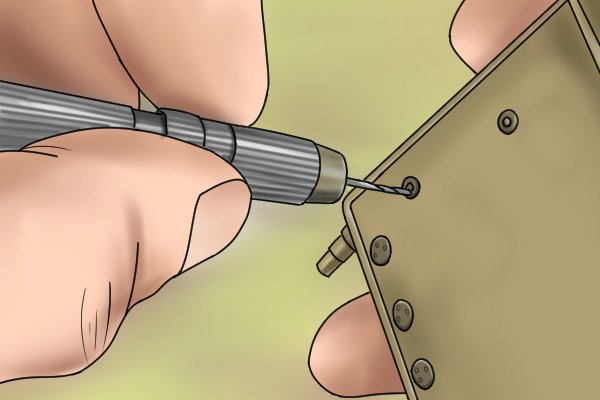

Step 4 – Hold pin vice

Place the palm of your hand over the top of the handle and use your finger tips to turn the central portion of the pin vice. When doing this, you will need to apply a certain amount of even pressure.

For finer control, place your index finger on the top of the handle and turn the central portion with your third finger and thumb.
