What size blades leaves are available?
What leaf or blade sizes are available? |
||||
|
|
||||
 |

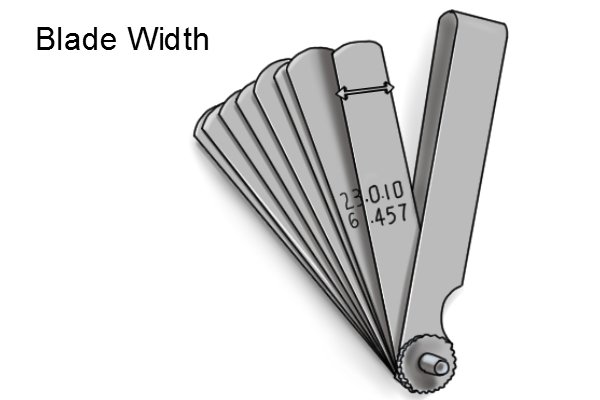

The width of feeler gauges does not vary much. The exception is when blades are tapered or custom made with smaller widths for easier placement in tight locations. | |||
 |

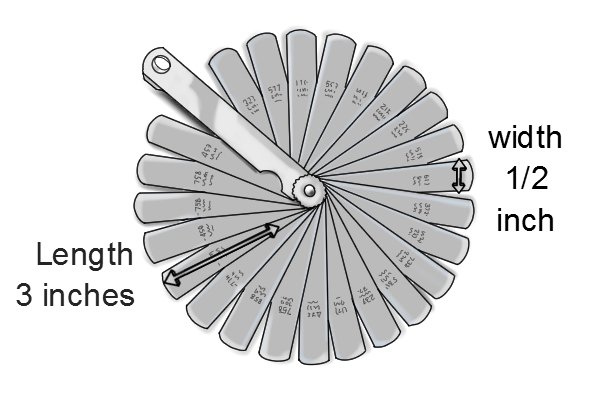

A feeler gauge that is considered short may have blades 12.7mm (½”) wide and 75mm (3″) long.
Short blade gauges are common and have a large variety of applications. |
|||
 |

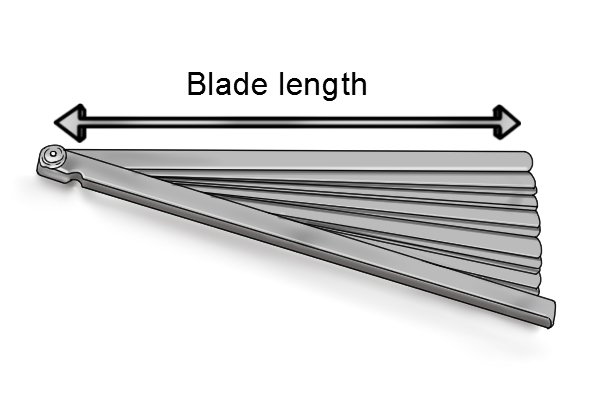

The length of blades do vary considerably. This is because extra length may be needed for difficult to reach applications. | |||
 |

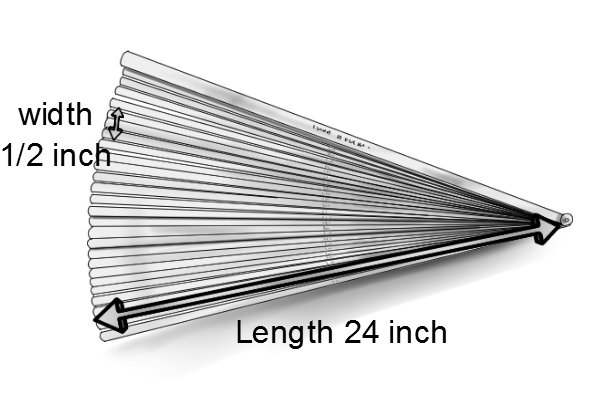

A feeler gauge considered long may have blades 12.7mm (½”) wide and up to 600mm (24″) long.
Long blade gauges are often used to set air gaps between the stator (stationary part of a rotary system) and rotor in electric motors and generators. |
|||
