What is chuck size?




 Shop for Cordless Drill Drivers


 Blue cordless drill driver with a red circle around the chuck

When selecting a cordless drill driver, you will probably come across the term ‘chuck size’. This refers to the maximum shank diameter the chuck will accept.

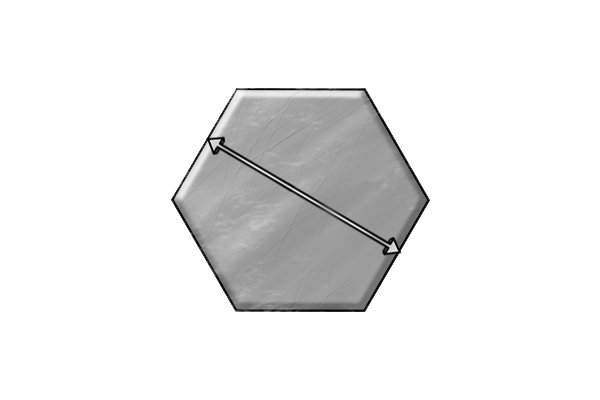

 Grey hexagon with a double ended arrow across the centre

The shank diameter of a bit is the measurement across the centre of the shank. Hexagonal shanks are always measured across their flats.

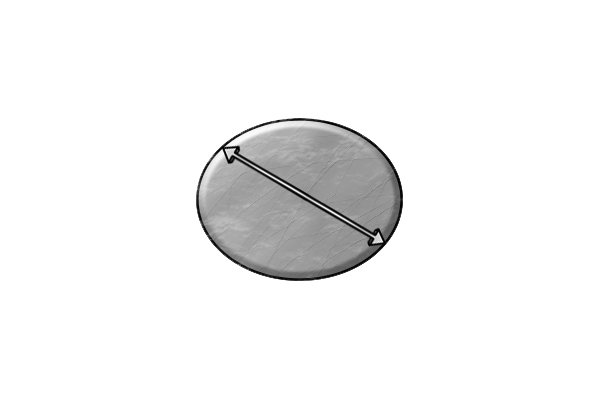

 Grey circle with a double ended arrow across the centre

The measurement for a straight shank's diameter can be take from any point around the circumference.





What size chuck do I need?


 Keyless chuck for a cordless drill driver

Cordless drill driver chucks come in the following sizes:



10mm (3/8 inch)



 13mm cordless drill driver chuck

13mm (1/2 inch)



Quite simply, the larger your chuck size, the larger shank diameter it will accept.



  Wonkee Donkee says "When first selecting a chuck, you should first find out the shank diameter of the bits you want to use, and then select your chuck size accordingly."

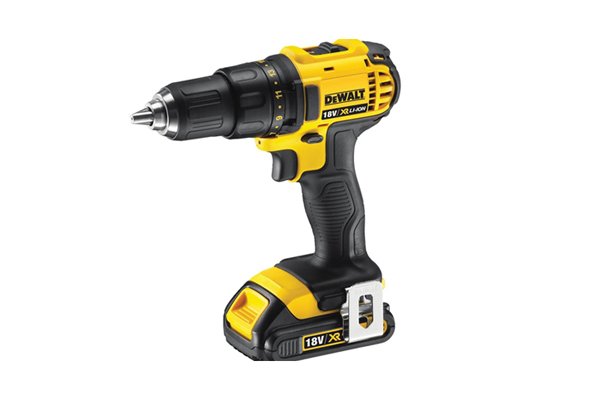

 Yellow and black cordless drill driver with a 13mm chuck

Generally, if you want to drill holes larger than 20mm in diameter or drill into materials such as metal, then consider purchasing a drill driver with a 13mm chuck, to accommodate larger bits.
