Adjustable wrecking bars are a relatively new design, and feature a bent claw with the ability to be adjusted to any one of nine claw angle settings.
This allows users to set the angle of the claw in relation to the shaft across 180 degrees of available adjustment, without changing the angle of the claw itself, which incorporates a fixed-angle bend of roughly 100 degrees.

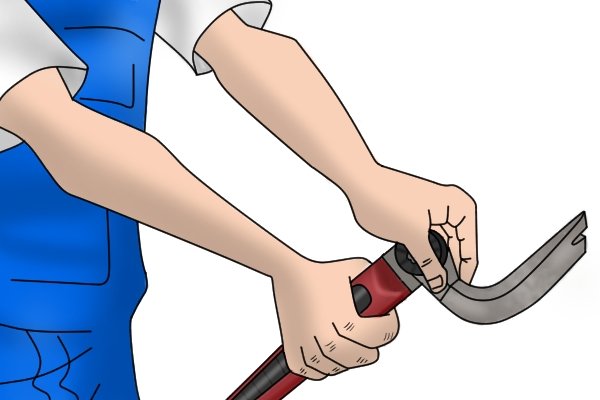

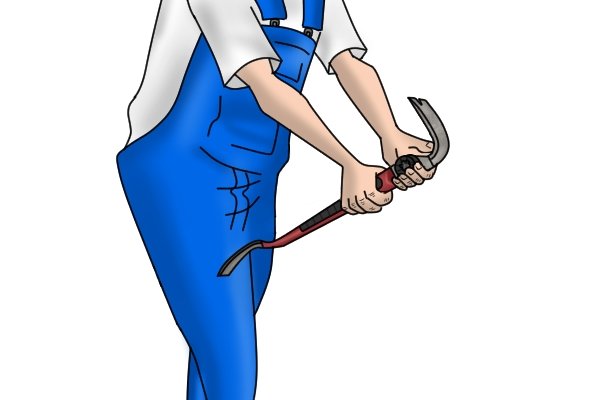

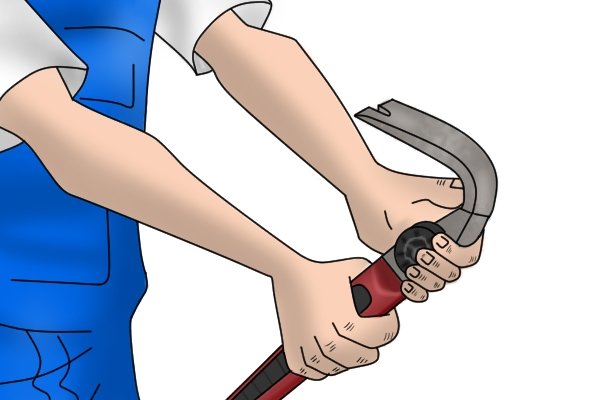

The claw of an adjustable wrecking bar is attached to the shaft using a ring gear system. To adjust the claw, the ring gear is loosened by turning to the left, and tightened when the desired angle is achieved by turning to the right. (See: How to adjust the claw of an adjustable wrecking bar?)

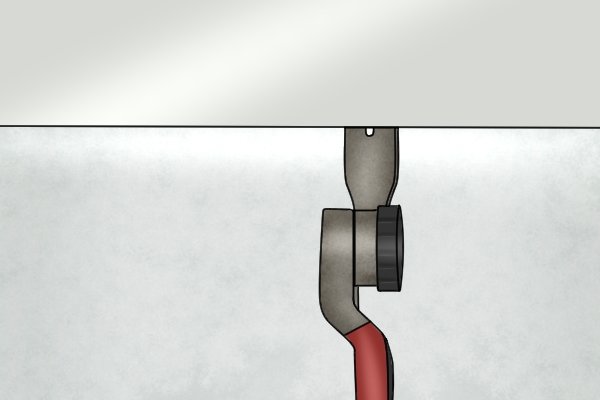

A claw adjusted to an acute angle can be used to lift and pry objects in confined spaces, and to increase the angle of leverage where required.
A claw adjusted to an obtuse angle can be used for gentler prying applications, where less force is required, or to lift and move objects only a short distance.
Additionally, the bent claw features a nail slot bevelled to a very fine inside edge, allowing engagement of stubborn nails without the need to raise them first.
At the opposite end, the adjustable wrecking bar features a chisel edge, cranked at a shallow downward angle from the shaft. This allows space for the fingers to rest when using the chisel end, minimising the risk of bumped knuckles.

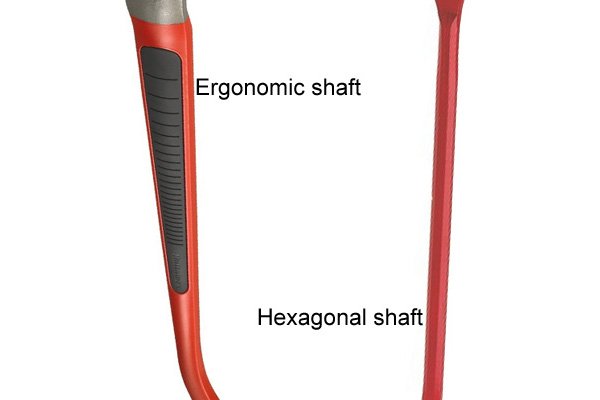

Two adjustable wrecking bars are available: one with a hexagonal shaft, and one with an ergonomically designed shaft, which features a cushioned rubber grip and is contoured to the hand.
What are adjustable wrecking bars used for?
Adjustable wrecking bars are able to cope with a high degree of strain, and are therefore suitable for any ripping, prying or wrecking task, including:
Nail pulling
Pallet breaking

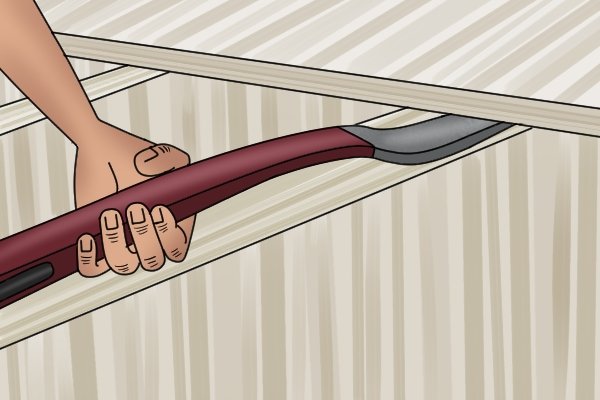

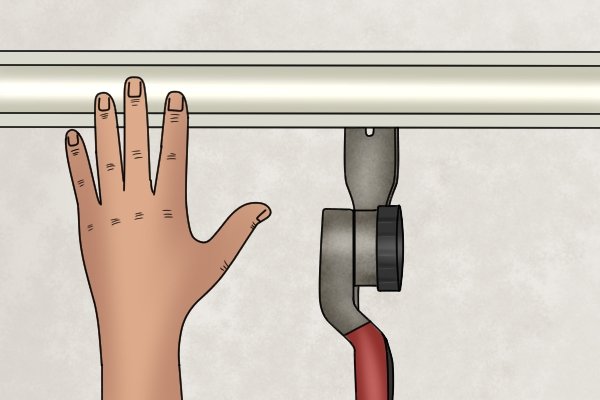

Removing moulding

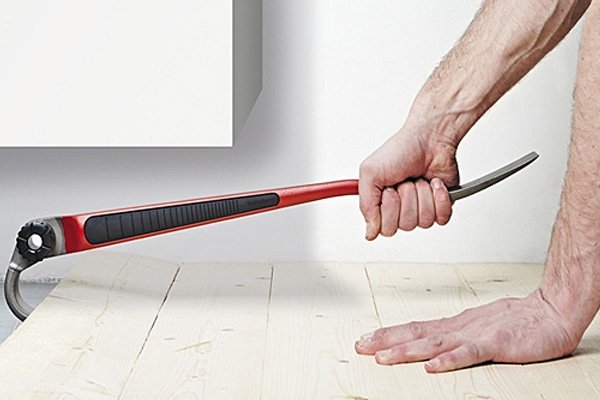

Lifting flooring
Lifting doors

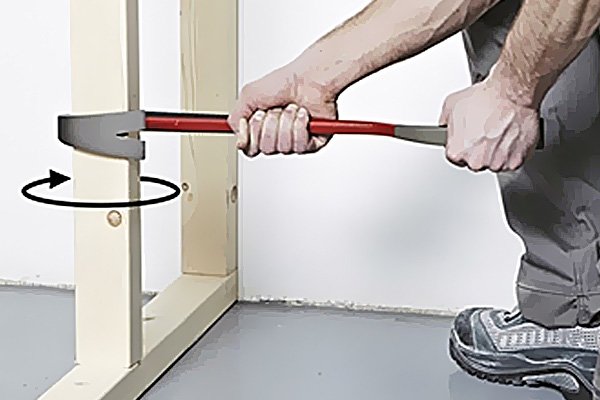

Positioning (or ‘locating’) objects such as studs or beams
What adjustable wrecking bar sizes are available?
Hex shaft models come in one length of of 660mm (26in) and weigh 1700g (3lb 12oz), while the ergonomic model is manufactured to the slightly shorter length of 640mm (25in) and weighs 1730g (3lb 13oz).With only 20mm (1in) difference in the models’ lengths, and 30g (1oz) difference in weight, the main factor to consider, if you will be choosing between them, is shaft design.
Both bars offer roughly the same quality of leverage and are roughly the same weight, but the ergonomic model will be considerably more comfortable to work with; though it will cost you a little more than the hex shaft, due to the relatively complex forging process involved in ergonomic manufacture.
Indeed, if cost is a factor, it’s worth noting that neither of these bars is cheap, and one adjustable wrecking bar may cost up to ten times more than a non-adjustable wrecking bar.This is largely due to the engineering and parts involved in creating a ring gear sturdy enough to take the amount of force a wrecking bar must be able to cope with.
What are adjustable wrecking bars made of?
Adjustable wrecking bars are manufactured from a hardened boron steel alloy.
