What is a panel gauge?

What is a panel gauge?

Shop for Marking Out Gauges

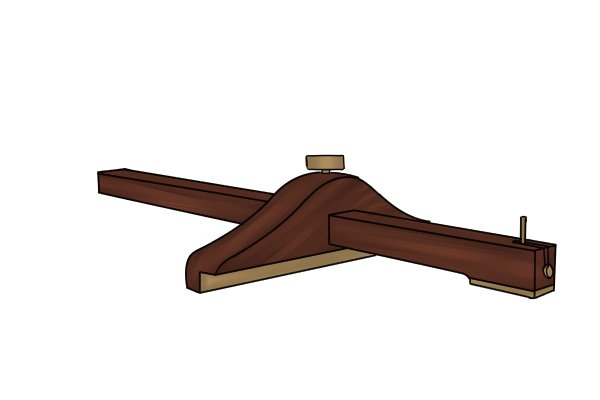

Panel gauge used to mark wood and sheets of wood, much larger than a regular marking gauge A panel gauge is essentially a larger version of the marking gauge. It has a much longer stem, fence and a bigger pin for marking the wood.

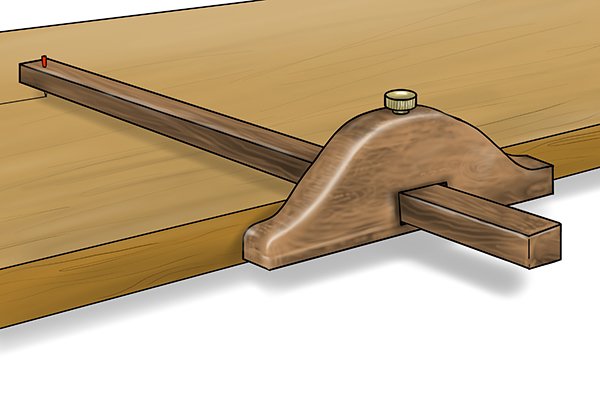

Panel gauge marking a large sheet of wood, the stem can reach much further than a regular marking gauge The main use for panel gauges is to mark large wooden boards to widths, for example when marking out doors, windows and cupboards.

They are also useful if you need to mark the centre of a piece of wood, as the long stem allows you to reach over the majority of the board.

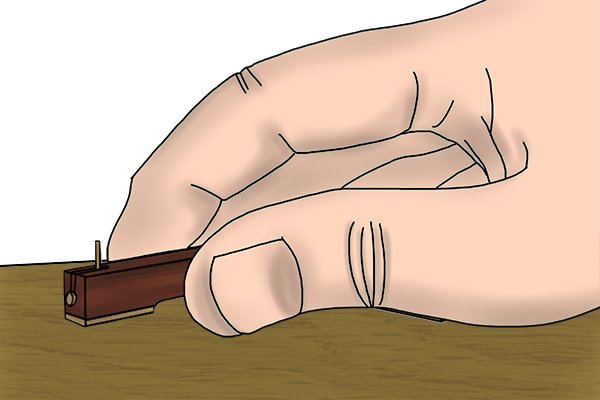

Using a cutting gauge to mark out a precision line on a small piece of wood, contrast to panel gauge used to mark large wooden boards As panel gauges are used for large scale marking, they have a very different purpose to other marking out tools, which mark small lines for intricate cuts in joinery and chisel work.

Panel gauge sizes

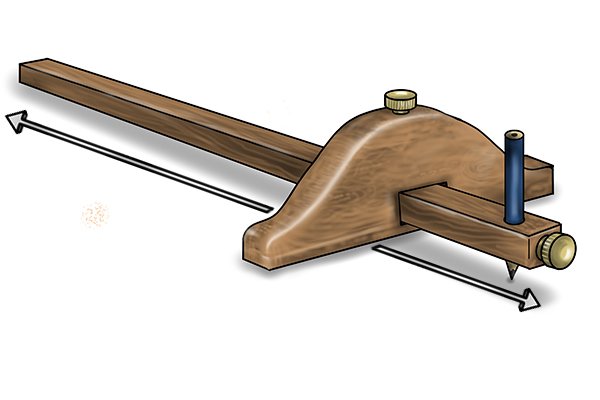

Length of a panel gauge stem, used to mark wood on a larger scale than a marking gauge, for example when scribing boards Panel gauge stem lengths can vary from 420mm (16.5″) to 750mm (25.9″). The size you use will depend on how large a sheet of material you are using.

As you can see, panel gauges are at least twice the length of marking gauges.
