What are the parts of a panel gauge?

What are the parts of a panel gauge?

Shop for Marking Out Gauges

Parts of a panel gauge; fence, stem, pin / spur, thumb screw

Panel gauge pin

Parts of a panel gauge; pin / spur, used to mark wood on large surfaces and work pieces A panel gauge has a large pin / spur through the end of the stem to mark the sheets of wood.

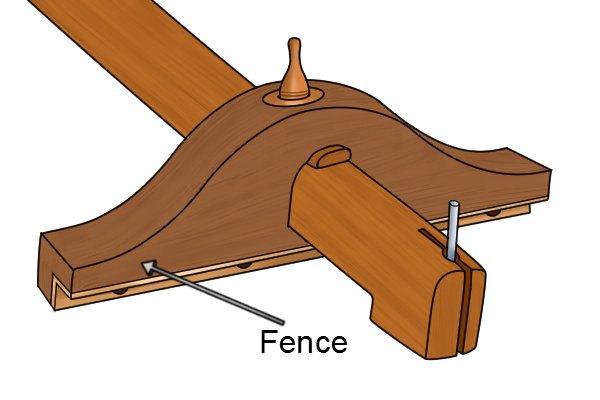

Panel gauge fence

Parts of a panel gauge; fence, the fence holds the measurement of the marking gauge The panel gauge, because of its longer stem, also needs a large fence to help keep the tool steady against the work surface.

The fence is usually around 228mm (9″) long.

Panel gauge stem

Parts of a panel gauge; stem, the stem is the main body of  the gauge. a panel gauge has a much longer stem than regular marking gauges The stem of the panel gauge is what allows the tool to reach over the surface to mark it in the correct position. The stem is much longer than on other marking out tools and this is what allows it to mark larger sheets of wood.

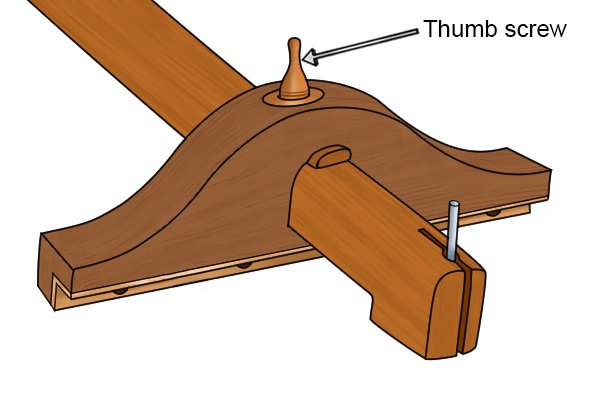

Panel gauge thumb screw

Parts of a panel gauge; thumb screw, the thumb screw tightens the fence holding its measurement The thumb screw of a panel gauge is located on top of the fence. When turned clockwise it locks the stem in position at the length required by the user. The thumb screw is turned anti-clockwise to release the stem.
