How to use a rod set

Shop for Rod Sets

Step 1 – Preparation

At the furthest end of the cavity, set up your cable reel or spool and unravel a small amount of the cable. Dangle this end of the cable into the cavity. Remember to check that you will have enough cable to complete the task.

Step 2 – Choose your rod

Back at the starting point of the cavity, choose which rod you need, by its diameter and flexibility, to match the size of the cavity you need to access.

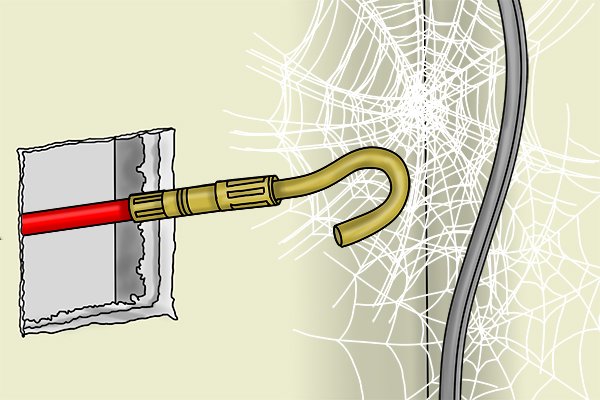

Step 3 – Fix attachment to rod set

Fix an attachment, for example a hook, to the end of the first rod, by screwing the attachment into the female thread at the end of the rod.

Step 4 – Start a rod set run

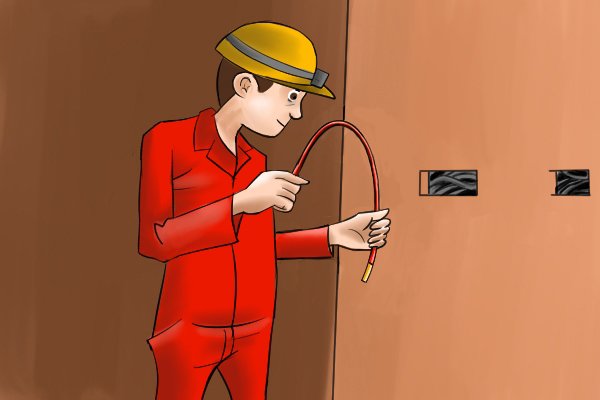

Insert the first rod, the one with the attachment, into the cavity. Push it onwards.

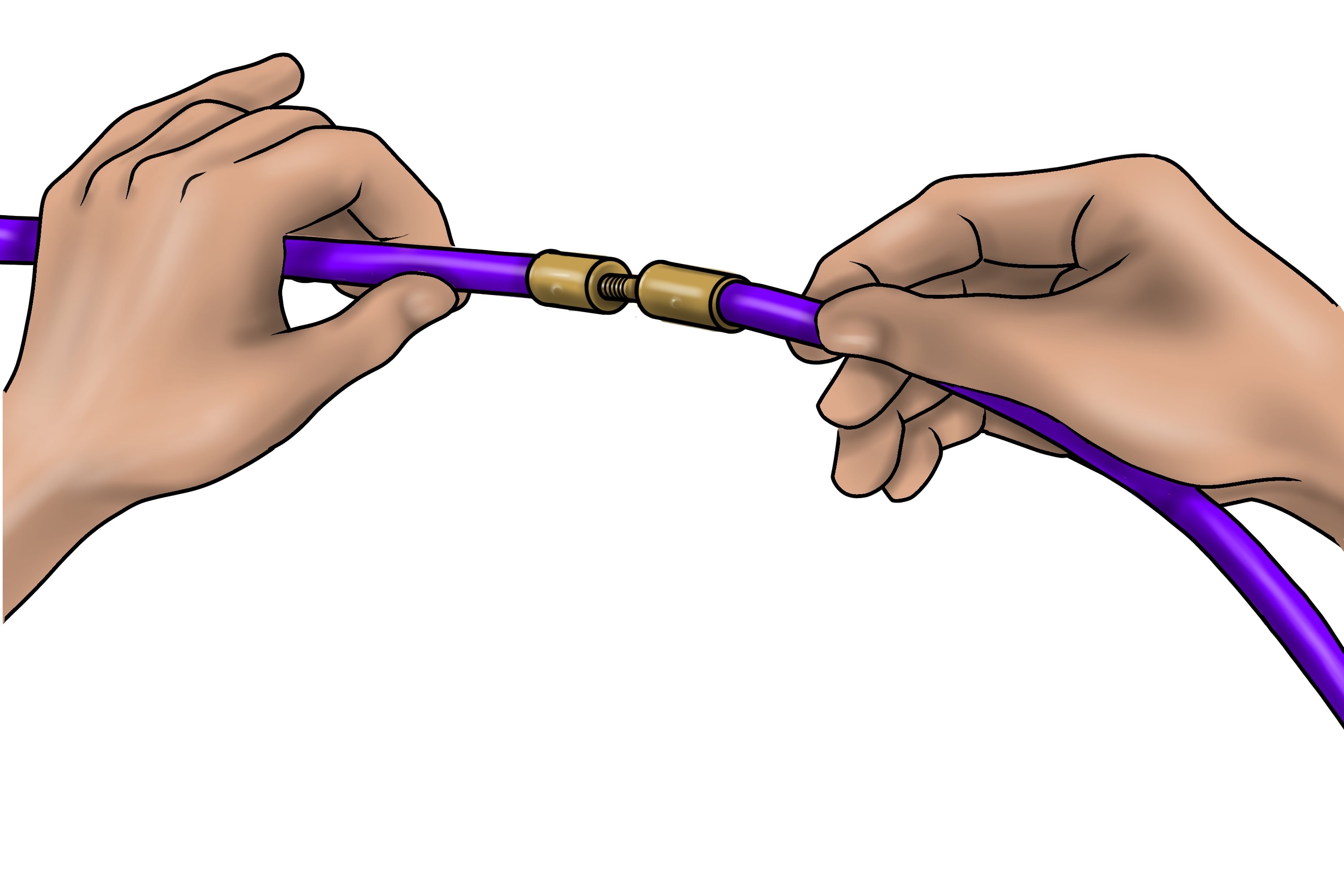

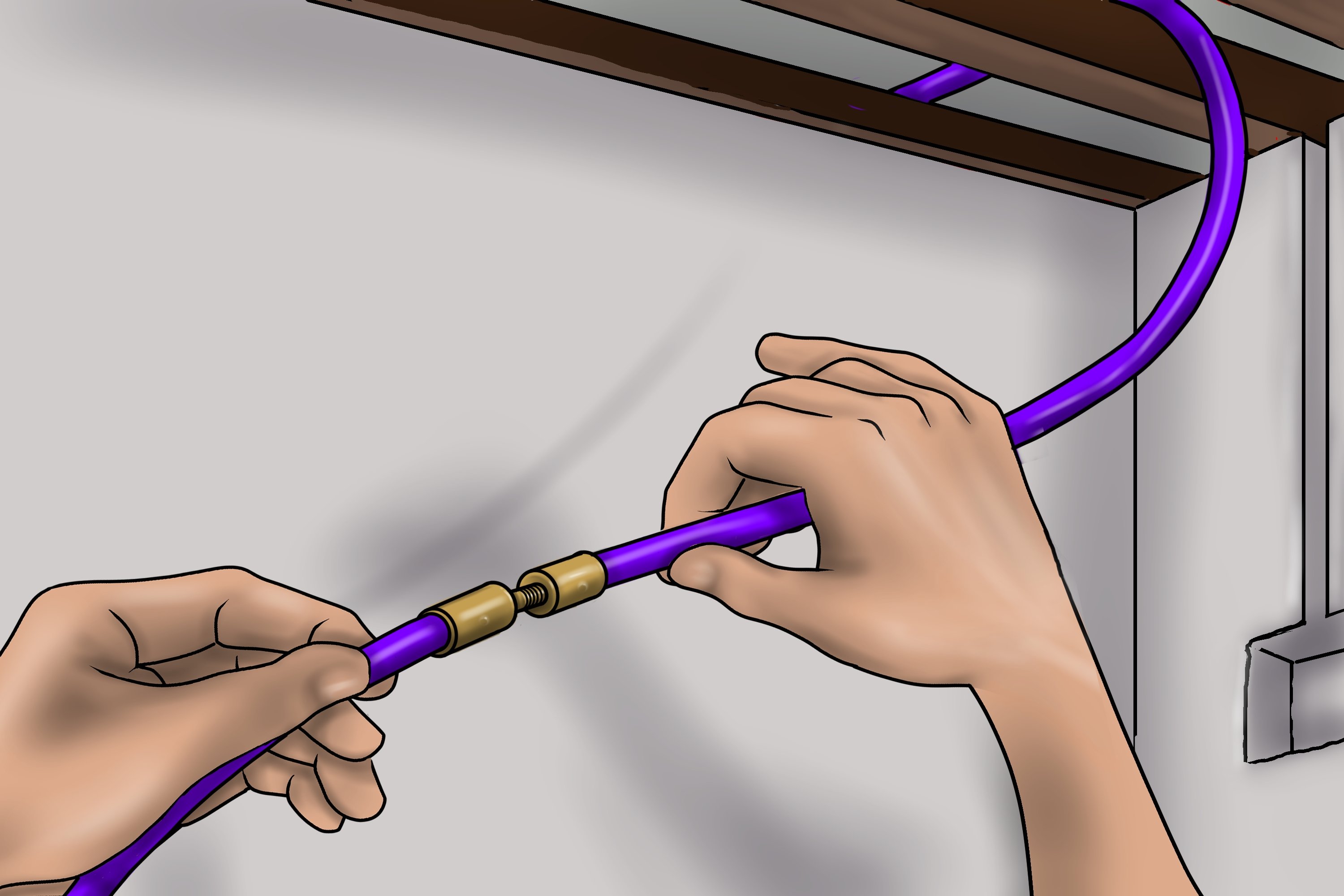

Step 5 – Attach extra rods

Attach extra rods as needed, at the same time as you are inserting the rods into the cavity, until you get to the furthest point that your cable needs to reach.

Step 6 – Push rods

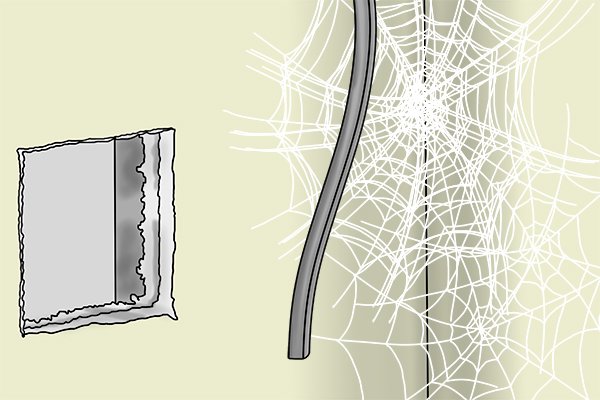

Push the rod set to the end of the cavity where your cable or wire is waiting.

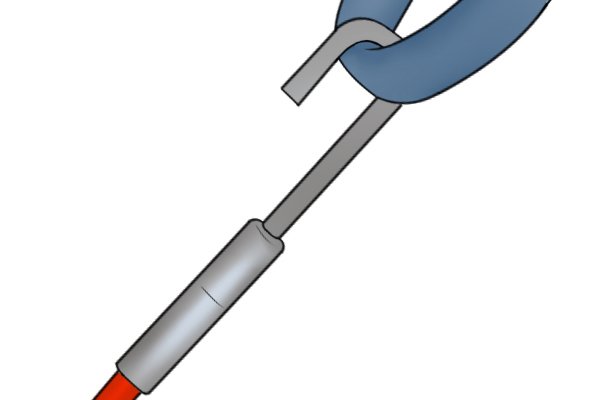

Step 7 – Hook cable with rod

Hook the cable at the end of the cavity, and start to pull it back towards you. The cable should be pulled firmly but slowly so that it unwinds from the reel at a regular rate.

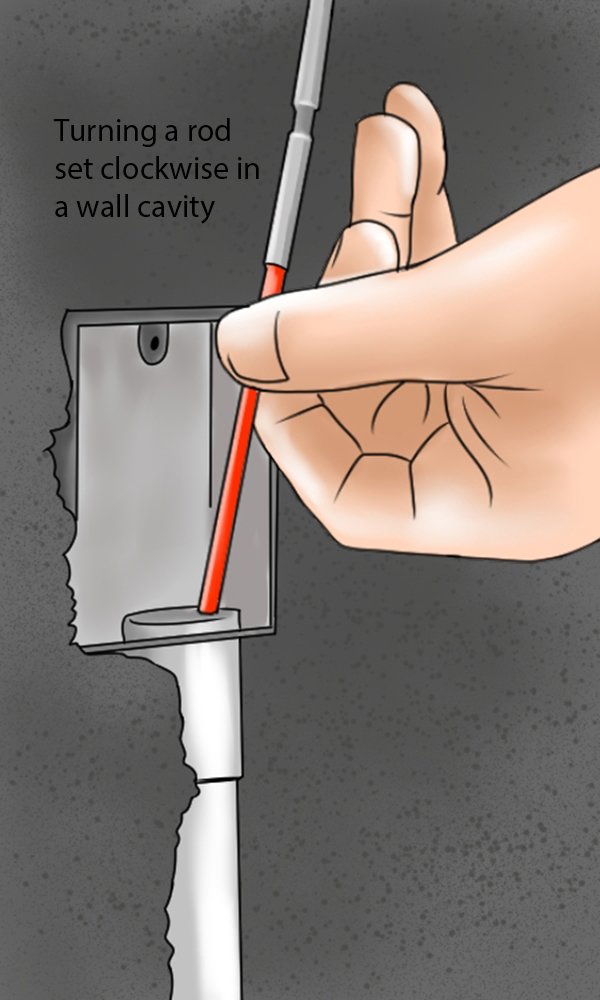

Step 8 – Pull rod through clockwise

Keep pulling on the rods, slowly and carefully, remembering to turn them clockwise only so that they don’t unscrew.

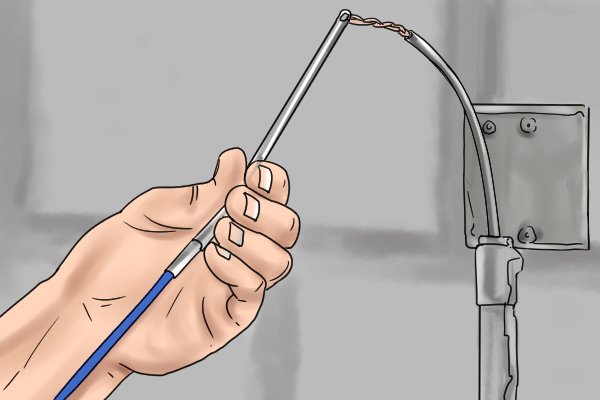

Step 9 – Pull rod and cable

Pull through the rod set with the cable/wire attached.

Step 10 – Detach cable from rod

Detach the cable from the rod set.

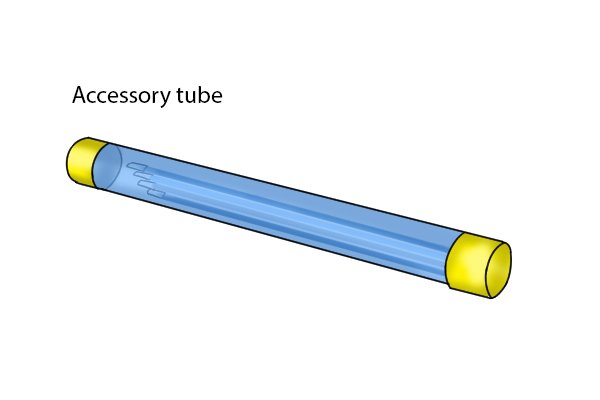

Step 11 – Return rod set to carry tube

Unscrew the rod set, wipe with a clean, dry cloth and then return the rods and any attachments to their carry tube, ready for their next task.
