What are the different types of flexible magnet?




 Shop for Flexible Magnets


 Types of flexible magnet: flexible magnetic sheet, flexible magnetic tape, and flexible warehouse magnets

There are three forms of flexible magnet: flexible magnetic sheet, flexible magnetic tape and flexible warehouse magnets.

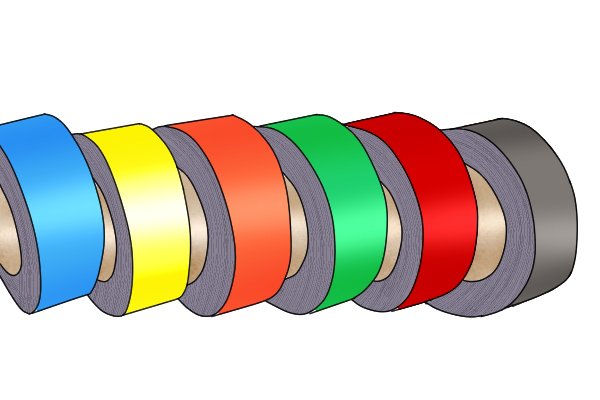

Flexible magnetic tape

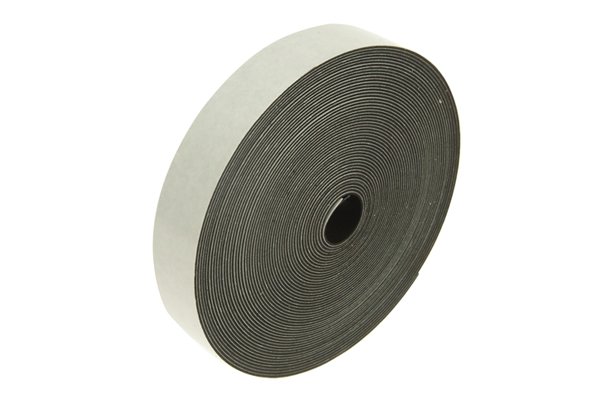

 White roll of flexible magnetic tape

Flexible magnetic tape consists of a long, thin, flexible magnet which has been extruded into a flat rectangular shape during manufacture.



For more information on extrusion, see page How are flexible magnets manufactured?



 Laminated flexible magnetic tape

The flexible magnetic tape is then wound onto a core to be used as a roll of tape. It can be available either with or without an adhesive backing, allowing it to be attached to ferromagnetic and non-magnetic materials.



For more information, see page What is flexible magnetic tape?



 Wonkee Donkee says "A core is the round piece of material in the centre of a roll of flexible magnetic tape"



Flexible warehouse magnet

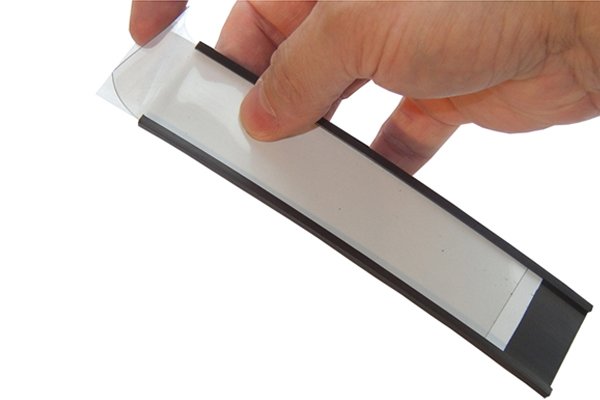

 Flexible warehouse magnet

A flexible warehouse magnet is flexible magnetic tape which has been made into a 'C' shape. The 'C' shape provides two lips for a piece of paper and a plastic cover to be slotted through, allowing the magnet to be used as a replaceable label.

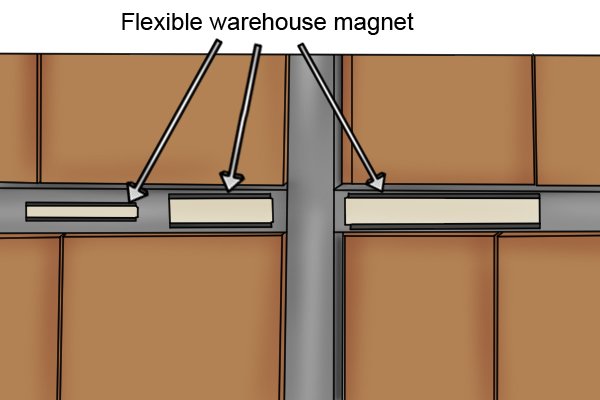

 Three flexible warehouse magnets labelling products on shelves

Flexible warehouse magnets are used in warehouses where stock is constantly changing, so the labels need to be replaced easily.



For more information, see page What is a flexible warehouse magnet?





Flexible magnetic sheet

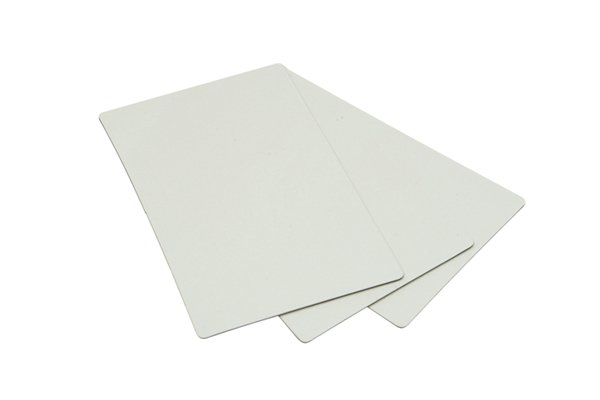

 Pre-cut magnetic sheet - magnetic label

A flexible magnetic sheet is a piece of flexible magnet which has been flattened into a large wide sheet. The difference between a flexible magnetic sheet and flexible magnetic tape is their widths. Flexible magnetic sheet has a width over 76.2mm (3"), whilst flexible magnetic tape is anything under this.



For more information, see page What is a flexible magnetic sheet?
