How to hold a deburring tool?

29th February 2020


	How to hold a deburring tool


	Shop for Deburring Tools

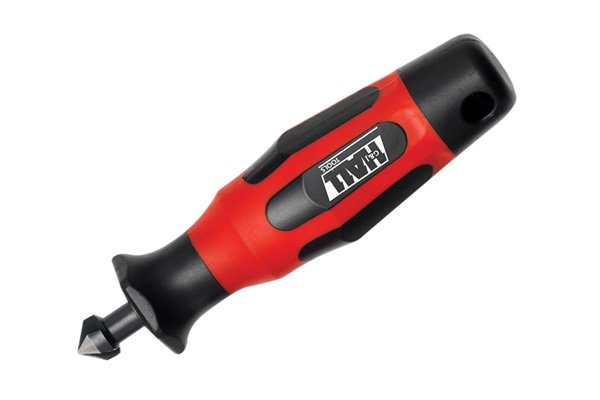

			Hand-held deburrers

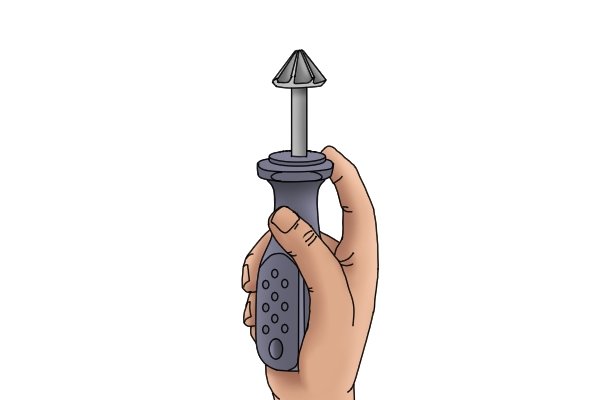

			The best way to hold the deburrer is with a closed grip, like you would hold a tennis racket.

			Extend your index finger if you feel the need for more control over the tool.

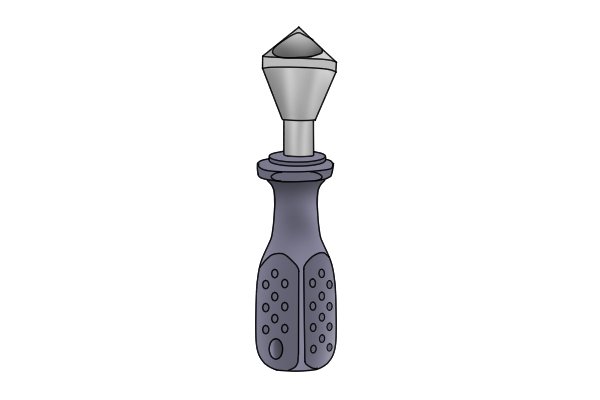

			The hand-held deburrer has a fixed handle which provides the user with maximum control over the tool tip.

			Deburring cutters

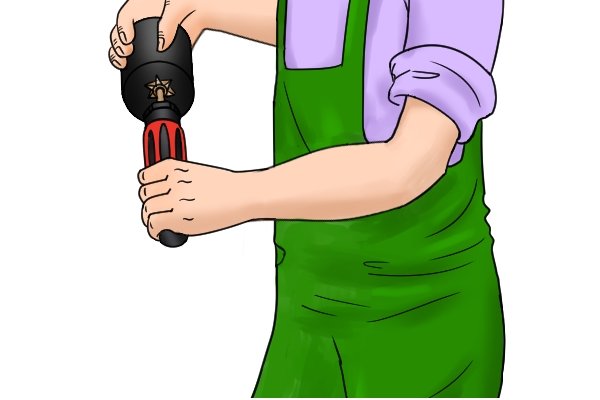

			A deburring cutter can be held in a few different ways: Hand-held If needed, the deburring cutter can be used by hand as the hexagon shank will fit into a 1/4″ (6.35mm) drive handle. This allows for the deburring cutter to be used in the same way as a hand-held deburring tool.

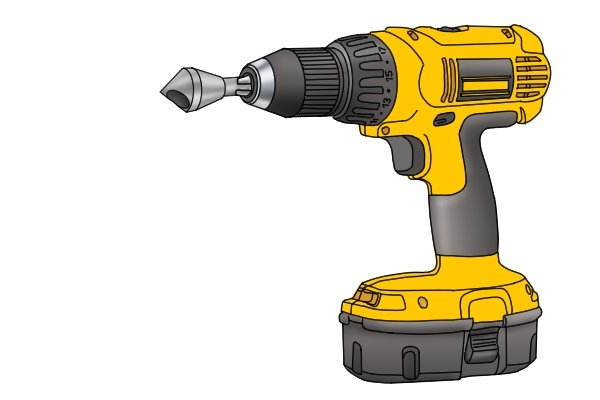

			Drill chuck A drill chuck can be tightened by hand or by key (chuck key) to ensure the jaws grip the deburring tool shank and hold it securely in place.

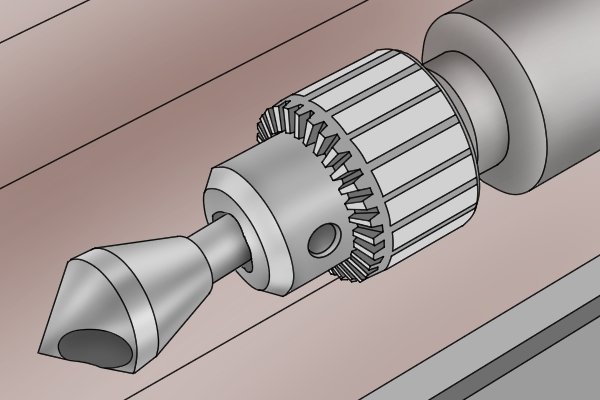

			Machine chuck A machine chuck is used with specialist machinery such as pillar drills, lathes and jig borers. It holds deburring tools in place whilst they are used to deburr a workpiece.

			The deburring cutter is held in the jaws of the chuck.

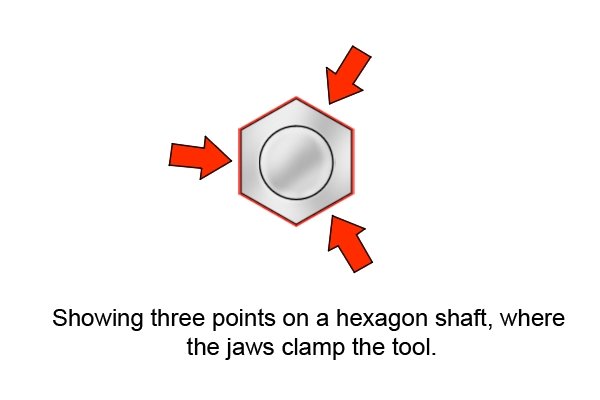

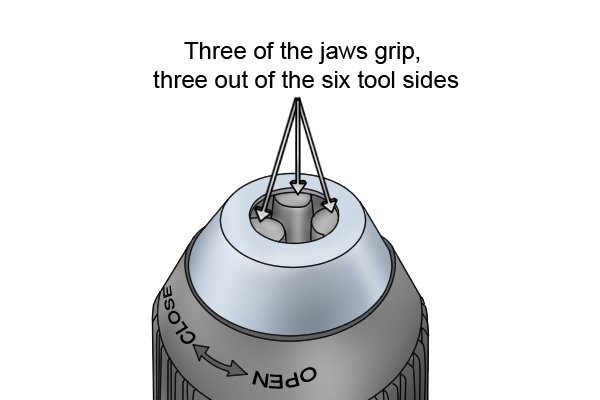

			The jaws of the chuck clamp down on three of the six sides on the shank of the cutter.

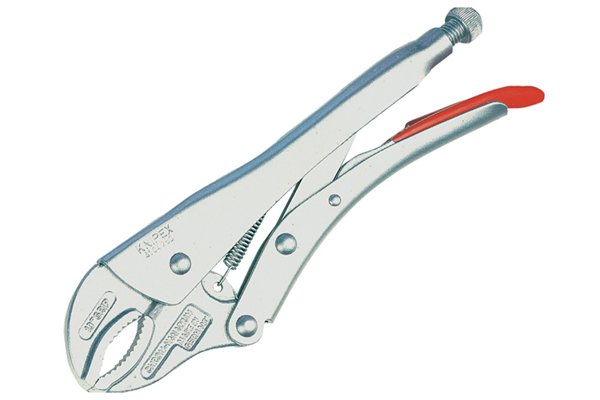

			Mole grips Mole grips are a form of pliers – the jaws can be locked into position whilst the shank of the deburring cutter is gripped in the jaws. Although this holding method is widely used, it is not recommended, as the shank of the deburring tool can sustain damage, which may affect the tool’s performance later on in its lifetime.
