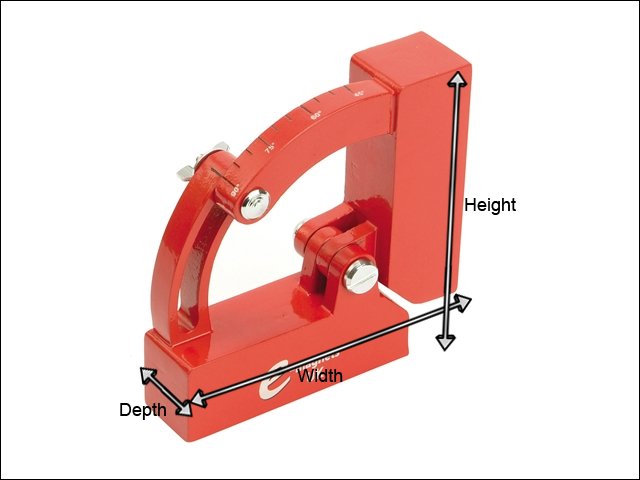

The measurements of the variable angle weld clamp magnets refer to their height x width x depth (when it is set at 90°).
The height is measured by the distance between the top of the vertical magnet and the bottom of the horizontal magnet. The width refers to the measurement of the longest length of the horizontal magnet.
The depth refers to the how wide the shortest length of the magnet is.
Heavy-duty variable angle weld clamp magnets
Heavy-duty variable angle weld clamp magnets are currently only produced in one size: 140 x 140 x 35mm (5.5″ x 5.5″ x 1.4″).

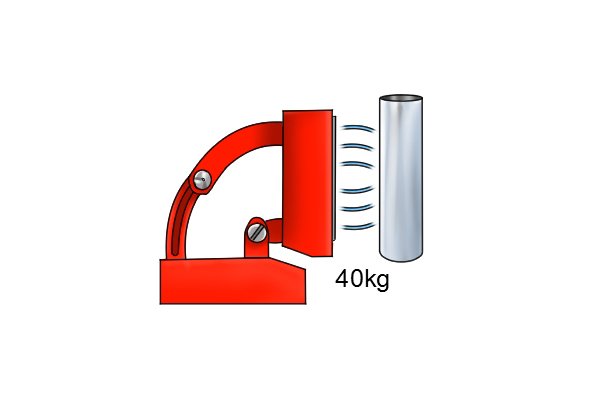

The magnetic pull of a heavy-duty variable angle weld clamp magnet is 40kg

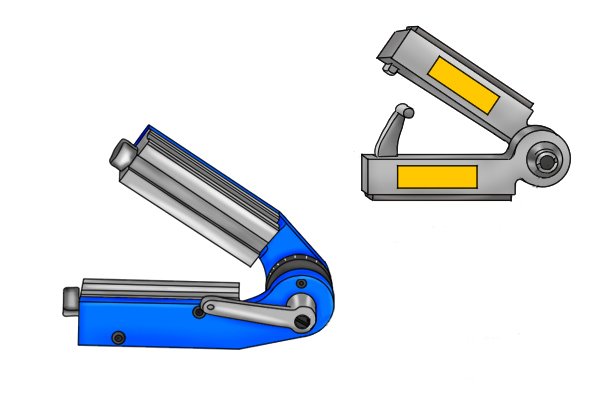

Single joint variable angle weld clamp magnets
Single joint variable angle weld clamp magnets can vary in size from 159 x 159 x 51mm (6.3″ x 6.3″ x 3.7″) to 197 x 197 x 95mm (7.8″ x 7.8″ x 3.7″)

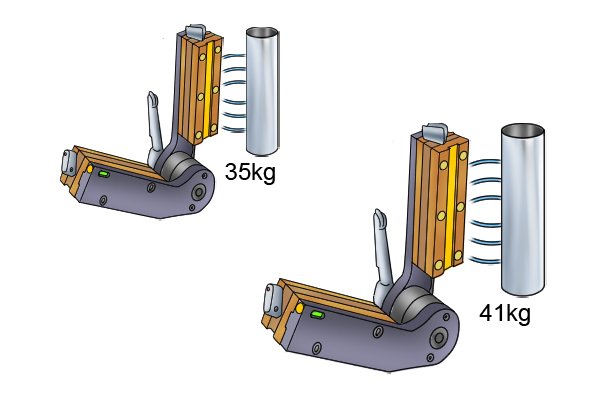

The magnetic pull of a single joint variable angle weld clamp magnet ranges from 35 to 41kg.

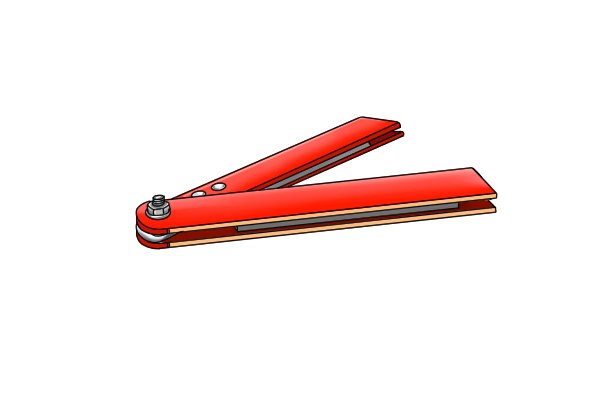

Lightweight variable angle weld clamp magnets
Lightweight variable angle weld clamp magnets are currently only produced in one size 200 x 195 x 11mm (7.9″ x 7.7″ x 0.4″).

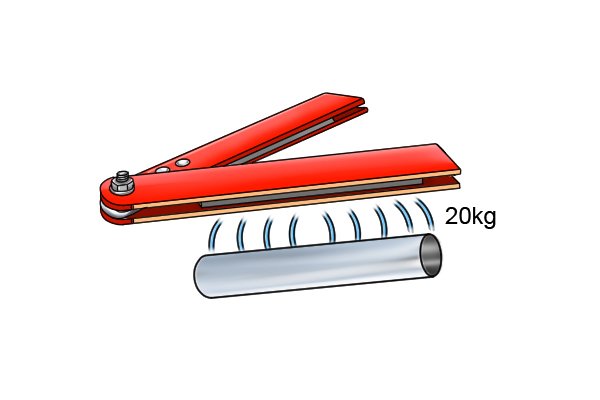

The magnetic pull of a lightweight variable angle weld clamp magnet is 20kg
