How to use a variable angle
weld clamp magnet

Shop for Weld Clamp Magnets

How to attach a variable angle weld clamp magnet

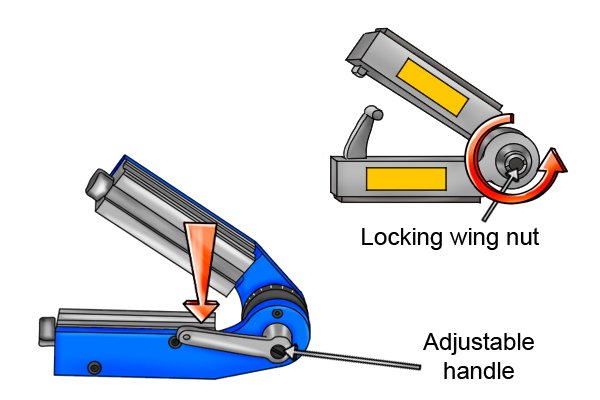

Variable angle weld clamp magnets with wingnut with anticlockwise arrows and adjustable handle with up and down arrows to reposition the magnet

Step 1 – Loosen magnets

Pull down the lever of the adjustable handle or unscrew the wing nuts so that the magnets can move freely.

Move the magnets to the required angle and then either push the adjustable handle back into position or tighten the wing nuts so that the magnets are held tightly in position.

orange Heavy duty variable angle weld clamp magnet holding two metal pipes, these need to be touching

Step 2 – Place magnet on material

Place the pieces of material onto the magnets (one piece of material per magnet) until they are toughing at the correct angle to be welded together.

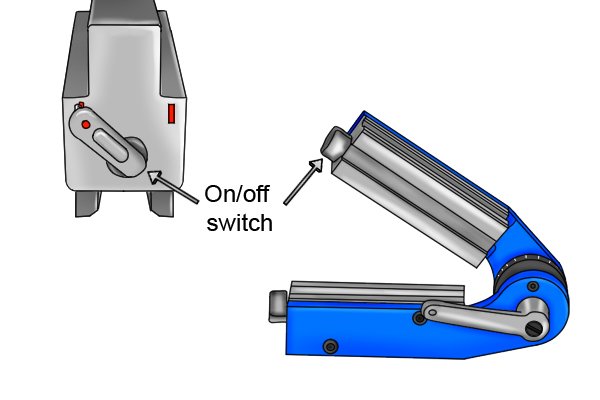

On off switch on a variable angle weld clamp magnet with a close up view of the switch If the magnet has an on/off switch, turn the magnet on to hold the two pieces of material together when they are in the correct position

How to remove a fixed multi angle weld clamp magnet

White headed rubber mallet Remove the magnets by knocking them off the joint with a rubber headed mallet.
On off switch on a variable angle weld clamp magnet with a close up view of the switch If the magnets have an on/off switch simply turn the magnet off before removing from the joint.
