			The measurements for fixed multi angle weld clamp magnets are always stated as their height x width x depth.

			6-sided fixed multi angle weld clamp magnets

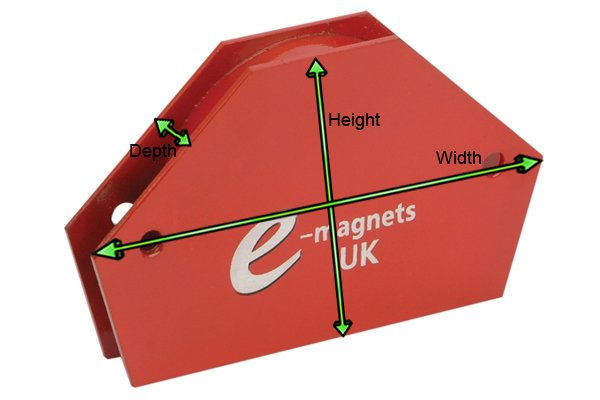

			The height is measured the distance between the top and the bottom of the 6 sided fixed multi angle weld clamp magnet (the longest edge is always the bottom). The width of this type of weld clamp magnet is measured by the distance between the two widest horizontal points. The depth measures the distance from the outside edge of one magnetic plate to the other.

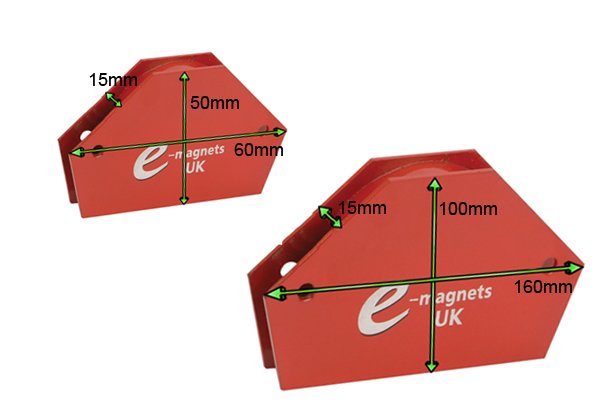

			The height and width of a 6 sided weld clamp magnet can range from 50 x 60 mm (2″ x 2.4″) to 100 x 160mm (4″ x 6.3″). The depth of this variety of weld clamp magnet is always 15mm (0.6″).

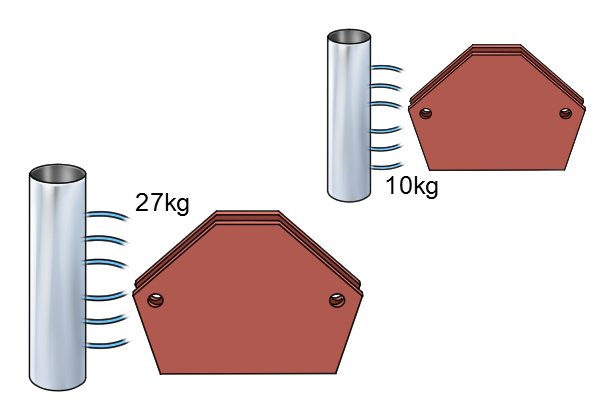

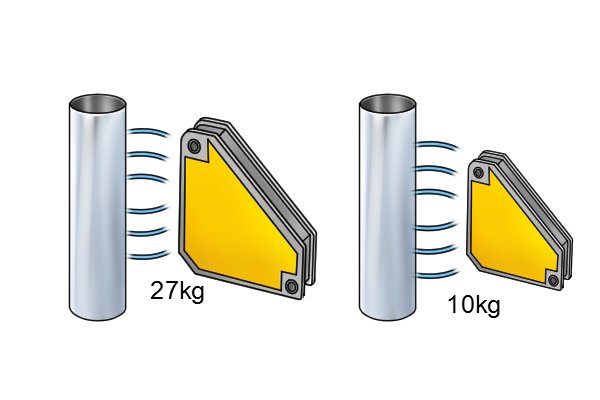

			Magnetic pull of a 6-sided fixed multi angle weld clamp magnet ranges from 10kg to 27kg



			Magnetic square fixed multi angle weld clamp magnets

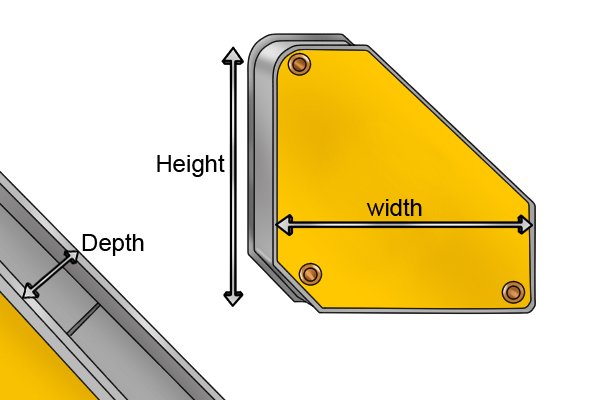

			The height of a magnetic square fixed multi angle weld clamp magnet measures the longest edge of the magnet, this measurement includes the lip of the magnetic plates. The width measures the distances between the two widest points (the shortest edge of the right angle triangle). The depth measures the distance from the outside edge of one magnetic plate to the outside edge of the other.

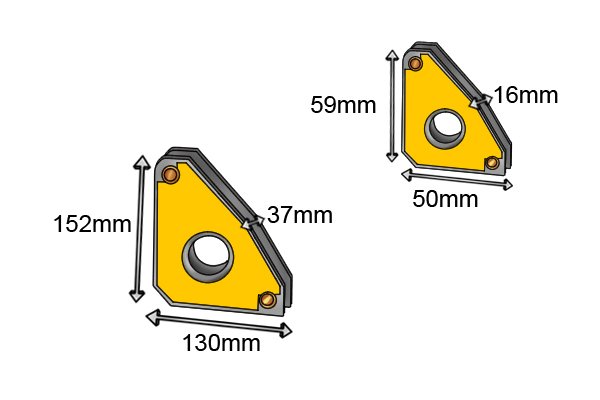

			Magnetic squares range from 59 x 50 x 16mm (2.3″ x 2″ x 0.6″) to 152 x 130 x 37mm (6″ x 5″ x 1.5″).

			The magnetic pull of a magnetic square fixed multi angle weld clamp magnet ranges from 10kg to 75kg

			Arrow fixed multi angle weld clamp magnets

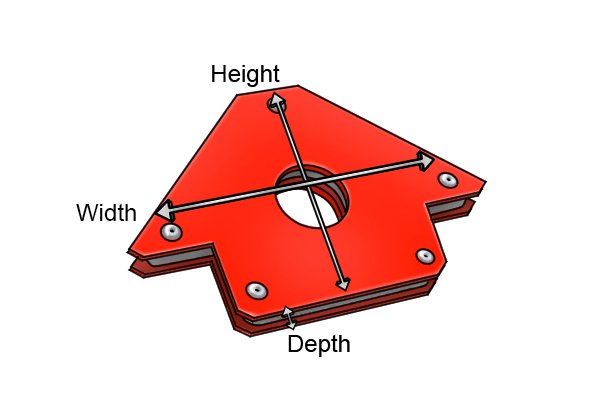

			The height measures the distance between the tip of the arrow to the bottom edge of the arrow fixed multi angle weld clamp magnet. The width measures the distance between the two furthest points of the arrow. The depth measures the distance from the outside edge of one magnetic plate to the other.

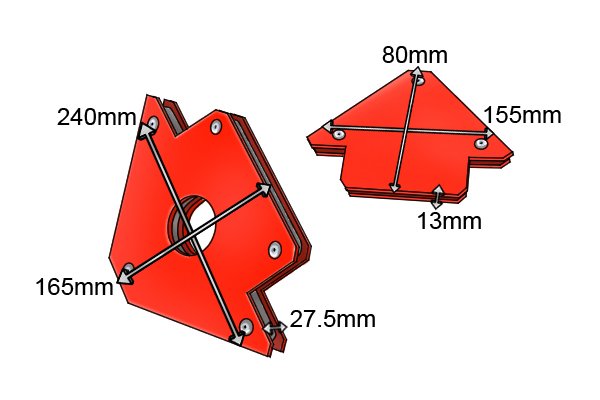

			Arrow weld clamp magnets range from 80 x 155 x 13mm (3″ x 6″ x 0.5″) to 165 x 240 x 27.5mm (6.5″ x 9.4″ x 1″)

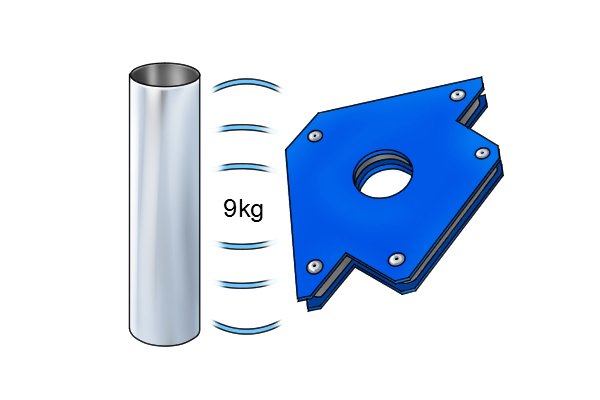

			It has a 9kg magnetic pull

			Corner fixed multi angle weld clamp magnets

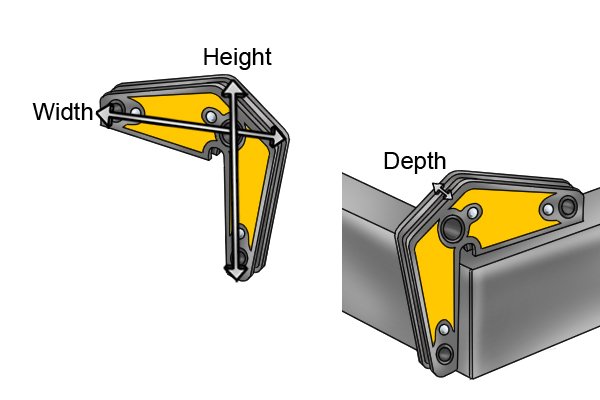

			The height is measured by the length of the longest part of the L shape. The width of the corner magnet measures the shortest length of the L shape. The measurement of the depth also includes the width of the two magnetic plates.

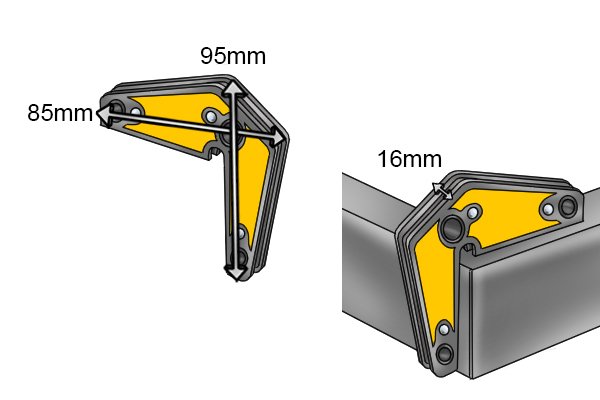

			There is only one size available which is 95 x 85 x 16mm (3.7″ x 3.2″ x 0.6″)

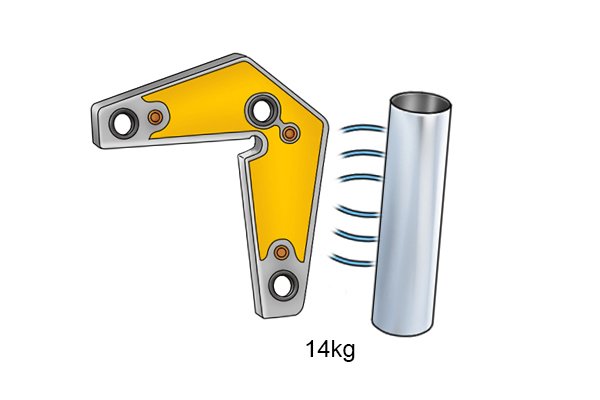

			The magnetic pull of a corner fixed multi angle weld clamp magnet is 14kg.
