How to use an adjustable links weld clamp magnet?

Shop for Weld Clamp Magnets

How to attach an adjustable links weld clamp magnet?

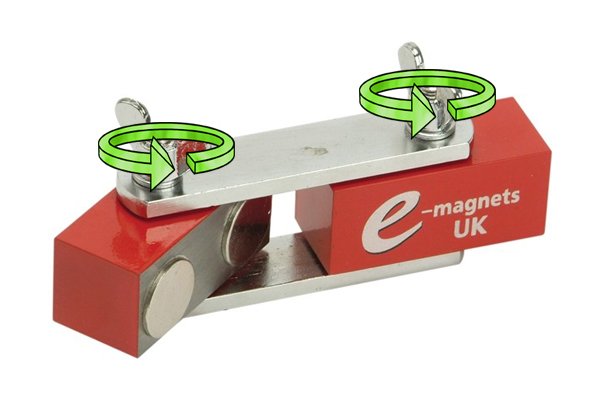

Turning the wing nuts anti-clockwise on an adjustable links weld clamp magnet

Step 1 – Loosen wing nuts

Loosen the wing nuts by turning them anti-clockwise until the magnets can be moved easily.

adjustable links weld clamp magnet set at 45 degrees

Step 2 – Move magnets

Move the two magnets around until the required angle is achieved, then retighten the wing nuts until the magnets are held firmly in place.

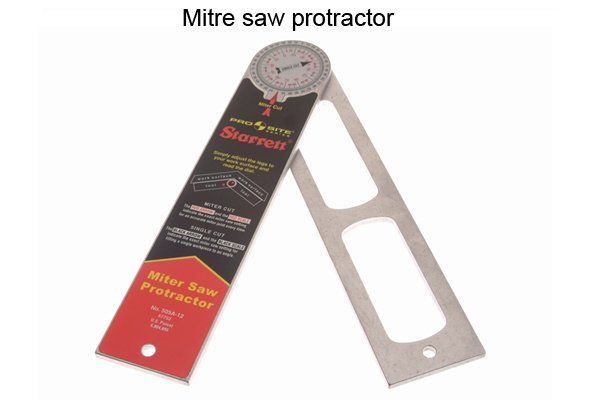

Mitre saw protractor You can measure the angles created with any angle measuring device.The measuring device needs to be non-magnetic to measure the angles accurately without being attracted to the magnets. An example of the type of tool you could use for this job would be a mitre saw protractor as it is made of aluminium and can measure angles between 0° and 360°.

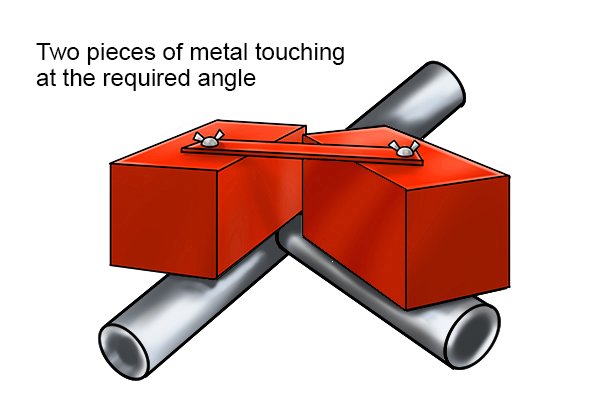

red adjustable links weld clamp magnet with two metal bars touching at the right angle

Step 3 – Place magnets onto material

Place the pieces of material onto the magnets until they are touching at the right angle.

How to remove the adjustable links weld clamp magnet?

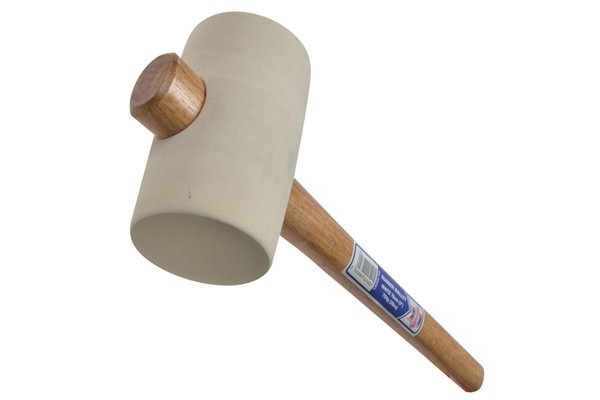

White headed rubber mallet Remove the magnets by knocking them off the joint with a rubber headed mallet.
