The size of an adjustable links weld clamp magnet refers to its width, depth and height. The measurements refer to the adjustable links weld clamp magnets when they are in alignment with the linking bars.

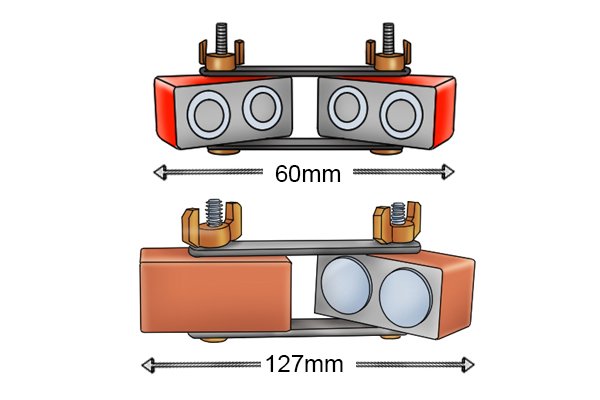

The width of an adjustable links magnet refers to the length of the two magnets from one end of the device to the other. The width can range from 60mm (2.4″) to 127mm (5″).

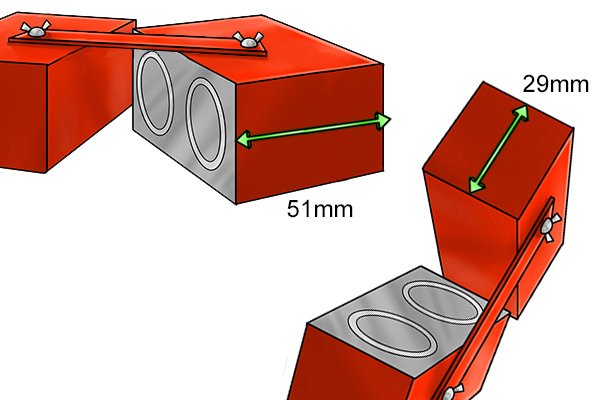

The depth refers to how wide the ends of the magnets are. This can range from 29mm (1.1″) to 51mm (2″).

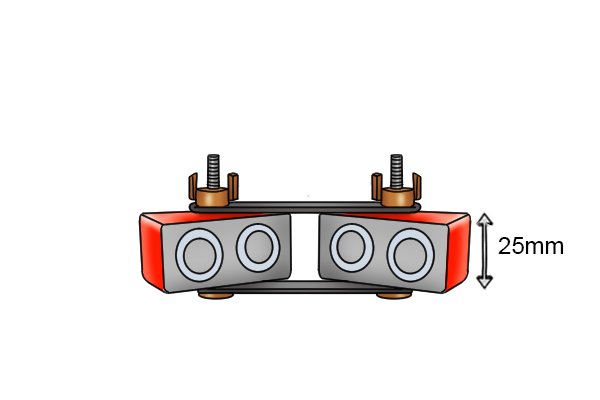

The height of an adjustable links weld clamp magnet stays the same at 25mm (1″) and refers to the height of the magnet excluding the wing nuts on the top.

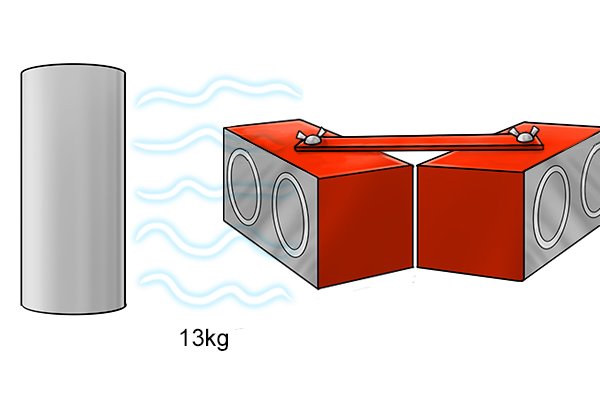

The magnetic pull of weld clamp magnets ranges from 12 – 13kg

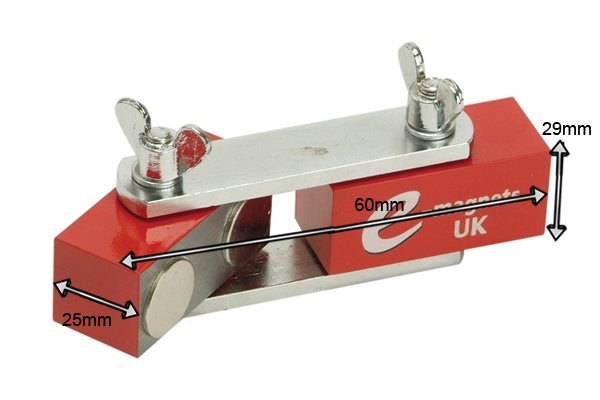

The best size of adjustable links weld clamp magnet is the 60 x 29 x 25mm (2.4 x 1.1 x 1″).This is because this size of weld clamp magnet does not differ widely in its magnetic pull in comparison to the larger sizes available. This means it would be able to take up less space but still have the capacity to hold a considerable amount of steel.
