What are the sizes of ring magnetic discs?

Shop for Magnetic Discs

Inner diameter, outside diameter and depth of a ring magnetic disc Ring magnets are measured by their outside diameter x inside diameter x depth.

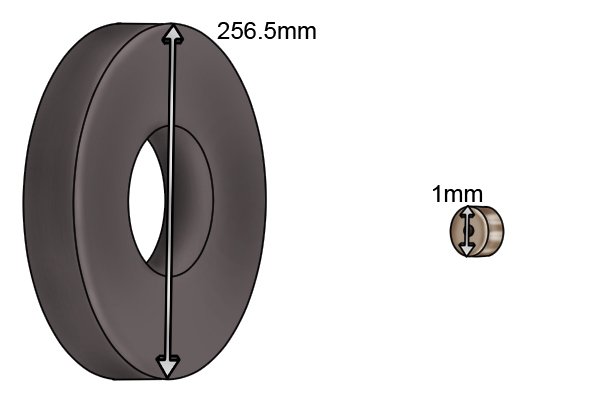

Diameter of a ring magnetic disc 1mm and 256.5mm The outside diameter of a ring magnetic disc refers to the distance between the two widest points. The outside diameter ranges from 1mm (0.039″) to 256.5mm (10.1″).

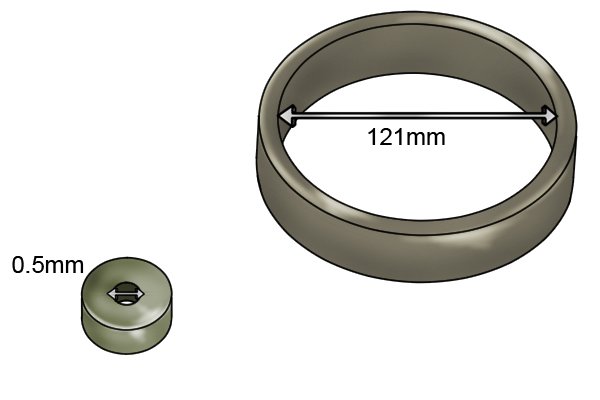

Inner diameter of a ring magnetic disc 0.5mm and 121mm The inside diameter of a ring magnetic disc measures the diameter of the hole can can range from 0.5mm (0.02″) to 121mm (4.76″).
Height of a ring magnetic disc 0.5mm and 44.45mm The depth of a ring magnetic disc is the distance between the two magnetic faces and can range from 0.5mm (0.02″) to 44.45mm (1.75″).
Magnetic pull of two ring magnetic discs one 0.018kg and the other 165kg The magnetic pull of ring magnetic discs ranges from 0.018kg (0.04lb) to 165kg (363.76lb).
Wonkee Donkee says "The magnetic pull is the maximum weight of ferromagnetic material the magnetic disc can hold"
