What are the parts of a metal
block plane?




 Shop for Woodworking Hand Planes


 Parts of a metal block plane

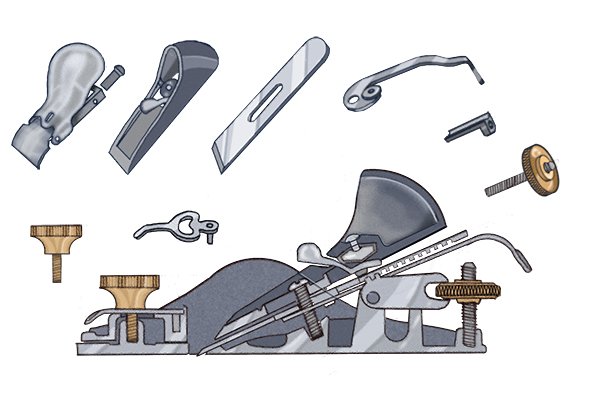

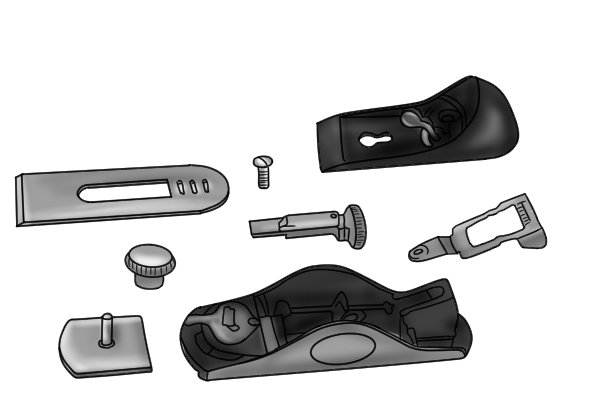

 Exploded view of metal block plane

Although they all look fairly similar, metal block planes vary in the design of their adjustment mechanisms and lever caps, and the shape of their lateral iron adjusters.



 Block lane with Norris-style adjuster

Some block planes have Norris-style adjusters that adjust the lateral angle of the iron (its horizontal alignment with the sole across the mouth of the plane) as well as its depth. See What is a Norris-style adjuster?for more information about the advantages and disadvantages of this type of adjuster.



 Block plane with vertical iron depth adjuster and separate lateral adjuster

Others have vertically-mounted iron depth adjusters and a separate lateral adjuster.



 Iron depth and lateral adjusters of some block planes

And there are block planes with adjusters that are fitted at the same angle as Norris adjusters, but adjust only the depth of the iron, and lateral adjusters that look like metal frames with wings.

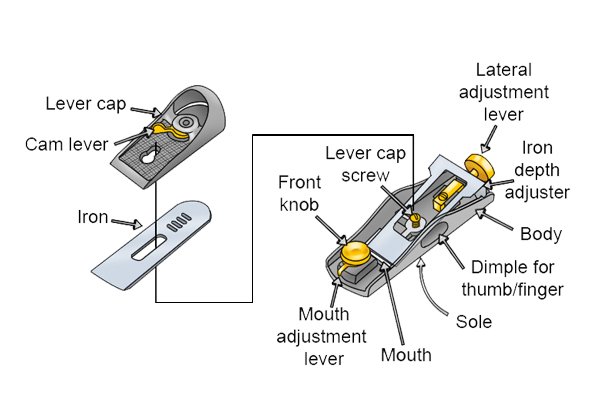

 Diagram of a block plane

Wonkee's guide to block plane parts is based on one particular style of block plane, but points out many of the differences in design along the way.



   Wonkee Donkee on differences between various types of block plane

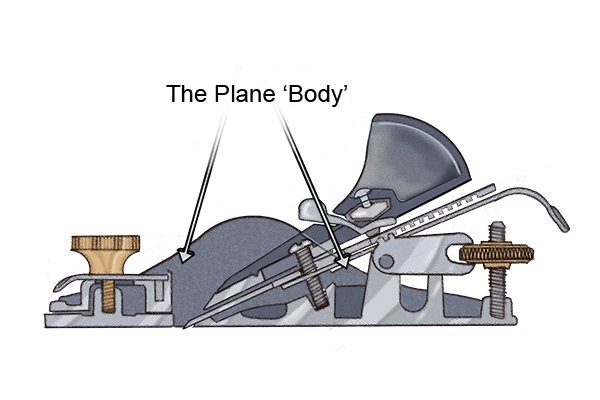

Body


 Body of a standard block plane

The body, or the base of the plane, to which all other parts are attached, is usually made of cast iron, but more expensive ones are made of brass or bronze. Bronze is an alloy (a mixture) of copper and tin, and brass is an alloy of copper and zinc.

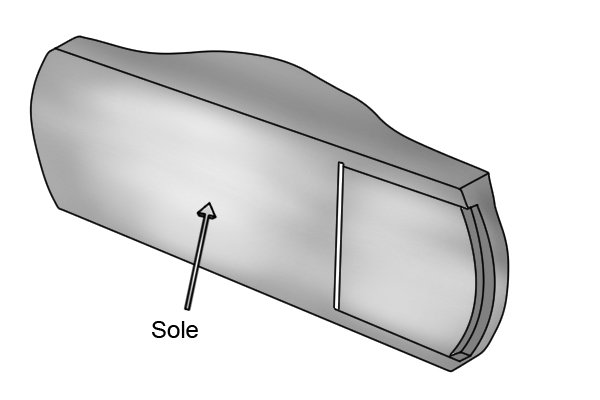

 The sole of a block plane

Some parts of the body – notably the sole and the bed, the area where the blade is seated – are "machined": that is, they are milled or ground on machines to make them perfectly flat, which is vital if the plane is to cut accurately.

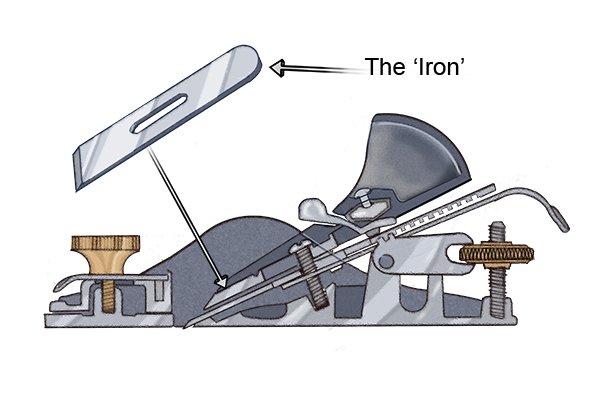

Iron


 Block plane blade or iron

The iron can be bedded at at 12 degrees (low angle block plane) or 20 degrees (standard block plane), and sits bevel up in metal versions of the plane.



Because the bevel is on the front of the iron and therefore meets the wood it is cutting, its angle is added to the bedding angle, or pitch, to give the overall cutting angle.





 Bevel-up block plane with a cutting angle of 37 degress

For instance, an iron with a pitch of 12 degrees and a bevel of 25 degrees has an effective cutting angle of 37 degrees.

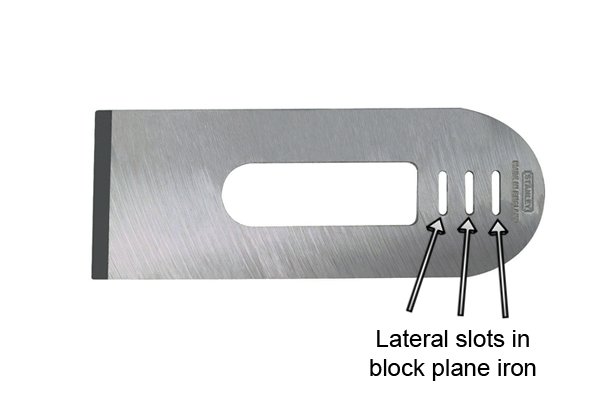

 Lateral slots in block plane iron for depth adjustment

The iron of a metal block plane often has a series of lateral slots cut into it. These are for the lug or "tooth" of the iron adjustment mechanism to fit into.



As the iron is repeatedly sharpened, it will get shorter, and so the lug will go into a higher slot, and so on until eventually all the slots have been used, and it's time to buy a new iron.





Lever cap


 Block plane lever cap

The lever cap holds the iron in place and can follow one of several designs, including cam lever and knuckle joint fasteners.



 Block plane cam lever and lever cap screw

Cam lever and lever cap screw

On some metal block planes, there is a cam lever which, when turned to the locked position, levers the cap against the lever cap screw that goes through the cap and into the body of the plane. This levering action holds the iron firmly in place.



 Knuckle joint lever cap on block plane

Knuckle joint

Lever caps on some other block planes have a knuckle joint mechanism. The keyhole slot of the cap goes under the lever cap screw and the hinged top of the lever cap - which is rounded rather like the back of a deep spoon - is pressed down until it snaps into the locked position to secure the blade.

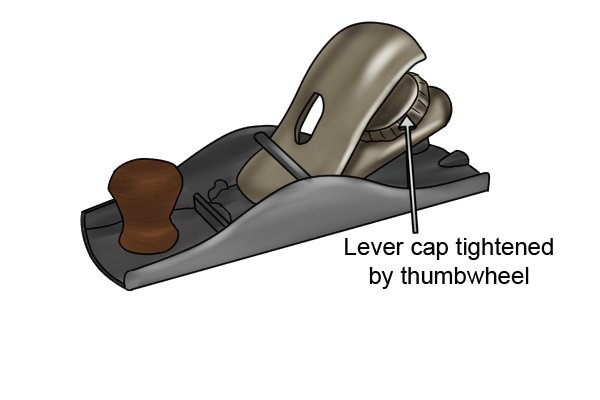

 Thumbwheel lever cap on a block plane

Thumbwheel

And there's yet another lever cap design. This one has a large thumbwheel which is turned to tighten the cap, putting pressure on the iron to hold it in place.



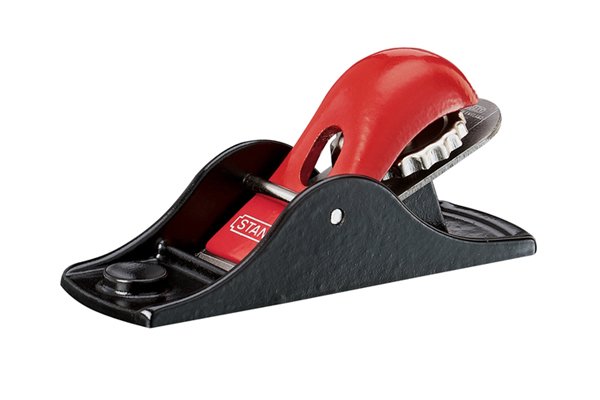

The thumbwheel can be under the hood of the lever cap . . .



 Lever cap knob or thumbwheel on top of block plane lever cap

. . . or over the top of the cap.

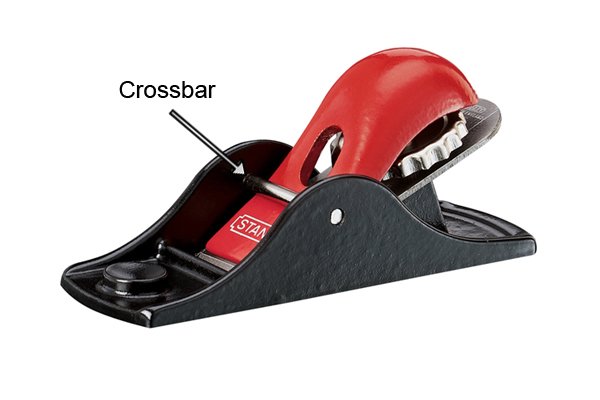

 Block plane with crossbar to retain lever cap

Block planes with this type of lever cap thumbwheel usually don't have a screw to hold the cap in place; instead, they have a crossbar.

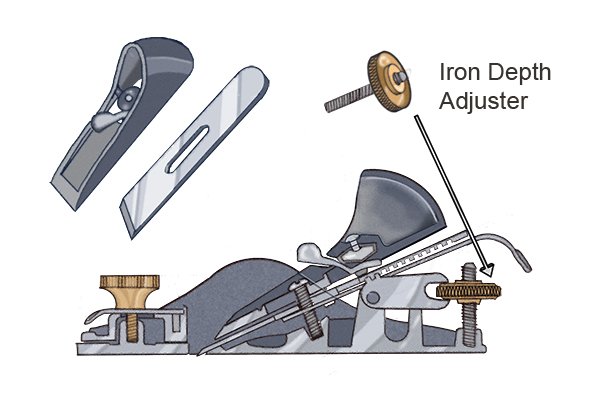

Iron depth adjuster


 Block plane - iron adjuster

Types of iron depth adjuster used in block planes include a vertically-mounted one, and one that sticks out from the back of the plane.



The wheels on the adjusters are often knurled – that is, a diamond-shaped (criss-cross) pattern is cut into the metal to give extra grip for the fingers.



 Block plane with Norris-style adjuster

A third type is the Norris-style adjuster, which adjusts the iron for depth and lateral position, so a plane with this type of adjuster does not need a separate lateral adjuster.



Some cheaper block planes have no iron adjustment mechanism – the blade is simply adjusted by hand after loosening the lever cap.

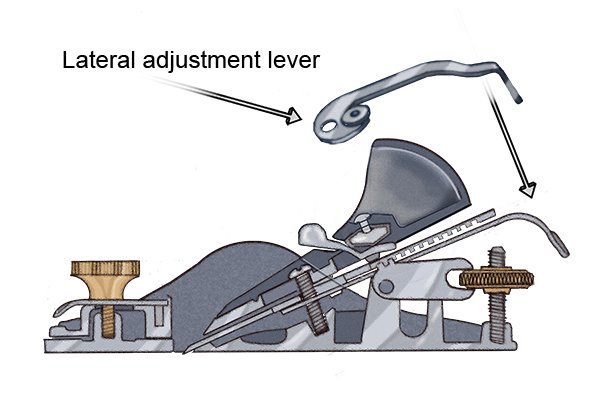

Lateral adjustment lever


 Block lane lateral adjustment lever

The lateral adjustment lever, where fitted, sits beneath the iron and has a bar that extends outwards and then downwards from the rear of the plane. Moving it left or right adjusts the blade's lateral angle – which should be parallel to the sole across the width of the plane.



A small circular plate on the adjustment lever fits into a slot in the iron. When the pivoted lever is moved, the blade is levered left or right.





Sole


 Parts of a block plane's sole

The soles of most block planes are split into two parts – a front plate, which is adjustable backwards and forwards to set the mouth opening, and the main part from the mouth to the heel of the plane.





Mouth


 Mouth of a block plane

The mouth is adjusted to allow different thicknesses of shaving (the chip) to pass up through the throat of the plane (the area above the mouth).



A tight mouth is called for when the iron's depth is set to take a very thin shaving, and a wide mouth when it's set to take thicker shavings.

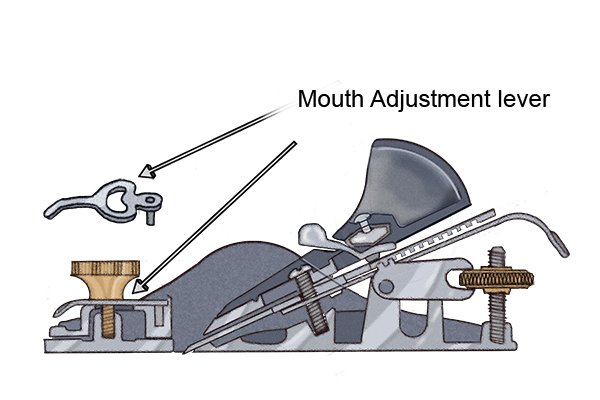

Mouth adjustment lever


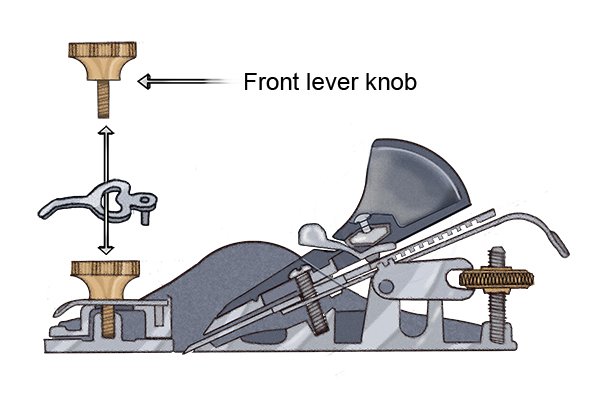

 Block plane mouth adjustment lever

The mouth is usually adjusted by means of an adjustment lever which is located below the front knob.



The knob is turned anti-clockwise to release the lever, which is then turned to adjust the mouth setting. Turning the front knob clockwise locks the lever, keeping the mouth at the new setting.



 Block plane with no mouth or blade adjustment mechanisms

On some block planes, there is no adjustment lever - the plate is moved backwards and forwards by pressure on the knob after it has been loosened.



And some metal block planes don't have adjustable mouths at all.





Front knob


 Font knob of a metal block plane

The front knob, usually made of steel or brass, has a rounded recess in its top. Block planes are held in the palm of the hand while the tip of the user's index finger rests in the indentation on the top of the knob, which helps with the guiding of the plane.

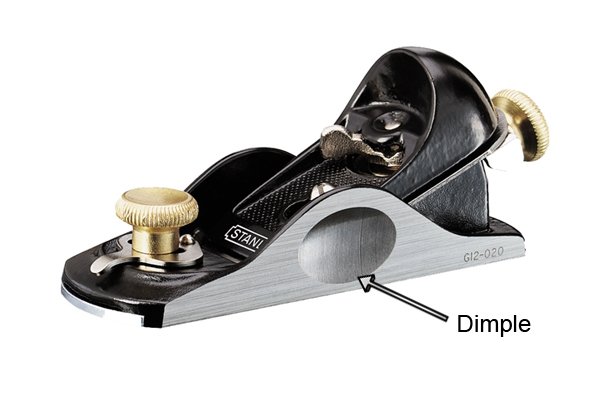

Dimple


 The dimple of a metal block plane

With the "hood" or rounded portion of the lever cap in the palm of the hand and the forefinger in the recess of the knob, the natural position for the other fingers and the thumb is the cheeks of the plane, which are dimpled for this very purpose.





 Two-handed planing with a block plane, woodworking hand planes

If two-handed planing is called for (perhaps on hard wood when lots of pressure is needed), the thumb of the non-dominant hand can be placed in the knob recess.
