How to replace the blade on a craft knife with a collet?

28th February 2020


How to replace the blade on a craft knife with a collet


	Shop for Craft Knives


		Once a blade has become dull it will need replacing. The method used to remove a blade depends on the blade securing mechanism which a craft knife uses. For more information on the different types of blade securing mechanisms, see What are the parts of a craft knife?

		The following instructions detail how to remove a blade and insert a new one on a craft knife with a collet.

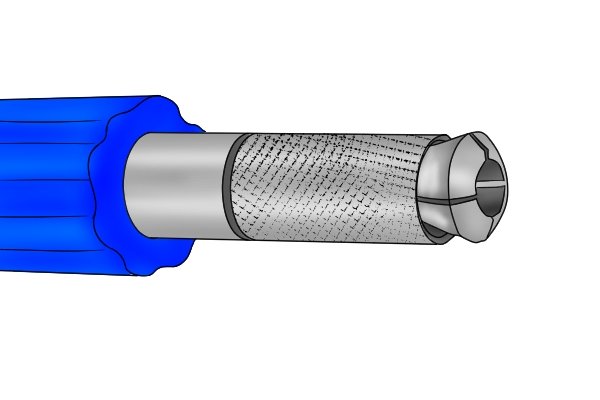

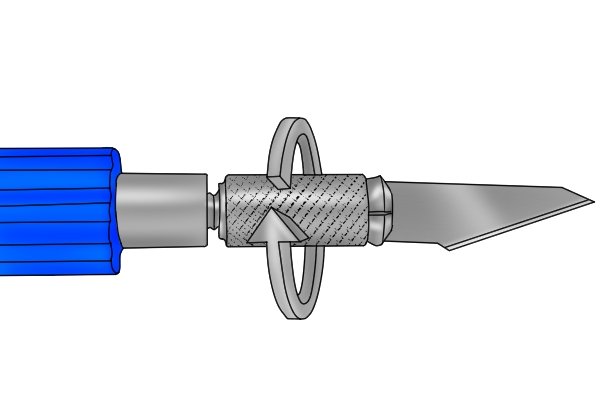

		Step 1 – Open collet To release the blade, the collet which secures it will need to be opened. Twist the collar to the left (with the blade away from you) in order to open the collet and loosen the blade.

		Step 2 – Remove blade Carefully remove the dull blade from the handle and dispose of it.

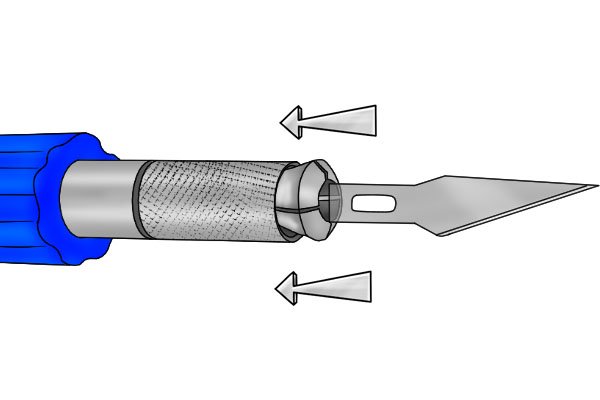

		Step 3 – Insert new blade Insert a new blade into the slot at the end of the handle.


		Step 4 – Lock handle Rotate the knurled collar to the right in order to close the collet. This will fasten the new blade securely within the handle.

		Once the blade has been replaced, your craft knife will be like new and ready to use.
