What is a four-way or multi-purpose radiator key?




  Shop for Radiator Keys

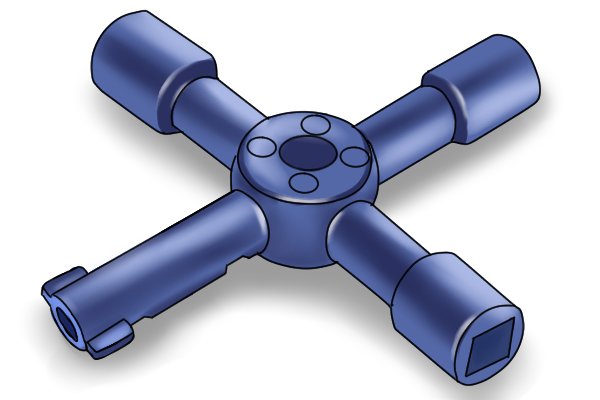

  Parts of a four-way key

  Four-way radiator key on radiator

 The parts of a four-way radiator key are:



  • The hub

  • The legs

  • The shapes – recesses and projections – at the end of each leg to fit various valves and fastenings


  Four-way multi-purpose radiator key

Also known as a utility key or services cabinet key, this type can be used on the drain-off cocks, also known as drain taps or drain valves, on some radiators.



Four-way keys are usually made of brass, galvanised or zinc-coated steel, an alloy (a mixture of two or more metals), or tough plastic. These materials ensure the key will not rust.

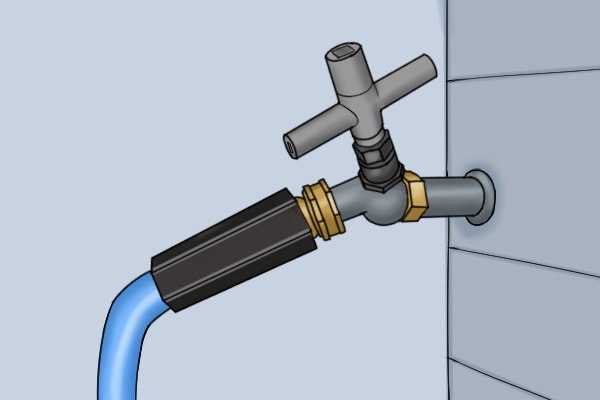

  Draining a central heating system

For certain kinds of maintenance work, all the radiators of a system might need to be drained.



Making use of a radiator drain cock near to an outside door, a hose can be attached to the drain cock or valve and the valve opened with the appropriate leg of the key.



  Four-way key diagram

This image shows some of the uses of one kind of four-way key.

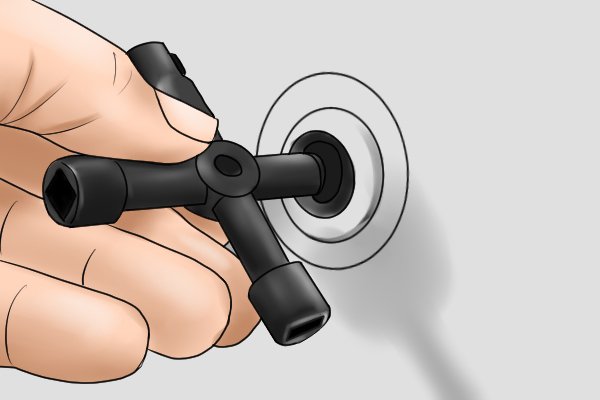

  Key in gas meter cabinet

Most four-way keys have fittings at the end of their legs to operate some radiator drain-off  valves; gas, water and electric meter cupboards, as seen here; some air conditioning units; some stop valves; mains consoles; some square headed gate valves; some central heating pump cocks; and some outside taps.



However, the keys are not all the same – they may have some fittings but lack others – so it’s best to check that a particular key fits the kind of fittings and fasteners you want to open and close.



  Lockshield gate valve

Some four-way keys are ideal for turning what are known as lockshield drain-off valves. These valves have a collar of metal around the square head to prevent operation except by the owner of the key.

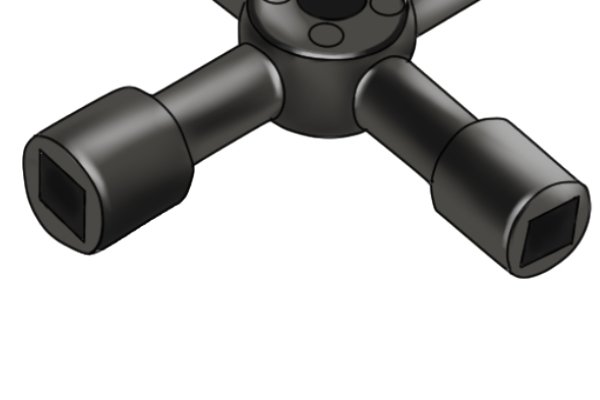

  Square sockets of four-way utility key

The appropriate leg of a four-way key fits perfectly inside the collar and over the square head.



  Brass four-way multi-purpose radiator key

Radiator drain valves can have different pipe sizes. Some four-way keys will fit square spindles on valves with 1/2 inch, 3/4 inch and 1 inch pipe connections.



   Four-way radiator key

Some four-way keys have a leg that fits air release valves for bleeding radiators.





Turning on stopcock with four-way key



The four-legged design is useful – two of the three legs not in use make very effective handles for turning sometimes stubborn valves
