What are the advantages and
disadvantages of micrometers?





Click to get the latest prices






Advantages


 They provide very accurate measurements The micrometer is one of the most accurate types of measuring device. Most micrometers can measure up to 0.001mm or 0.0001 inches.

Micrometers provide very accurate measurements

The micrometer is one of the most accurate types of measuring device.

Most micrometers can measure up to 0.001mm or 0.0001 inches.



 Ratchet speeder helps to provide reliable measurements The ratchet speeder/stop mechanism ensures that uniform pressure is applied to the thimble so that measurements are reliable and repeatable.

Ratchet speeder helps to provide reliable measurements

The ratchet speeder/stop mechanism ensures that uniform pressure is applied to the thimble so that measurements are reliable and repeatable.



 Integrated scales As the sleeve scale and thimble scale are built into the tool, another measuring instrument such as a ruler or tape measure is not required.

Integrated scales

As the sleeve scale and thimble scale are built into the tool, another measuring instrument such as a ruler or tape measure is not required.

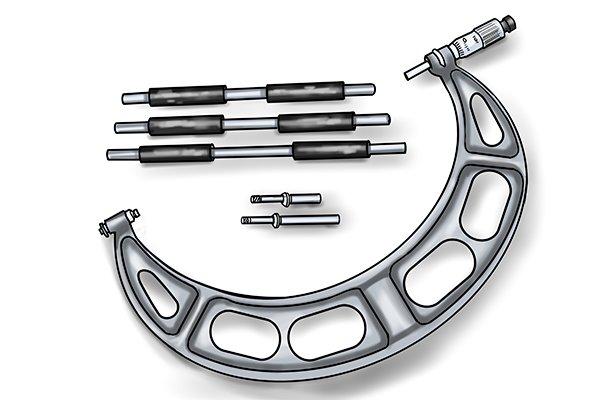

 Anvil micrometers Micrometers used to measure large objects can be very expensive. However, anvil micrometers are a cost effective option for users who wish to take a large range of measurements. These micrometers provide interchangeable anvils of a variety of different lengths so that multiple dimensions can be measured using a single frame.

Anvil micrometers

Micrometers used to measure large objects can be very expensive.

However, anvil micrometers are a cost effective option for users who wish to take a large range of measurements.

These micrometers provide interchangeable anvils of a variety of different lengths so that multiple dimensions can be measured using a single frame.

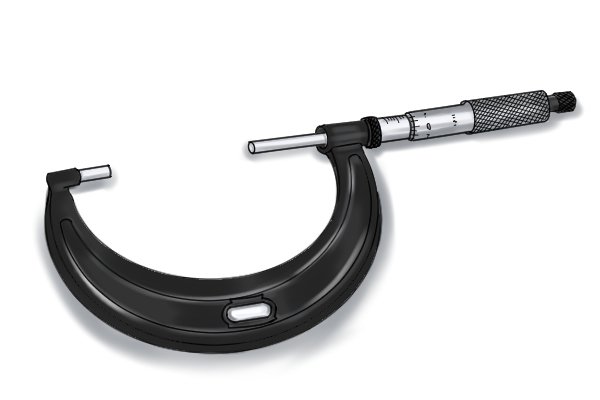

 Durability Micrometers are very durable as a result of their baked enamel frame and tungsten carbide coated measuring tips. They are very long-lasting and are are unlikely to need replacing or repairing.

Durability

Micrometers are very durable as a result of their baked enamel frame and tungsten carbide tipped measuring faces.

They are very long-lasting and are are unlikely to need replacing or repairing.



 Speciality micrometers There are a number of different types of specialty micrometers used to measure a particular type of work. For instance, blade micrometers are used to measure shrouded features such as grooves and paper thickness micrometers measure the thickness of paper.

Speciality micrometers

There are a number of different types of specialty micrometers used to measure a particular type of work.

For instance, blade micrometers are used to measure shrouded features such as grooves and paper thickness micrometers measure the thickness of paper.





Disadvantages


 Limited range Most micrometers have a measuring range of only 1 inch or 25mm. This means that different micrometers are required for measuring objects of different sizes.

Limited range

Most micrometers have a measuring range of only 25mm (metric) and 1″ (imperial).

This means that additional micrometers are required to measure objects that are larger than this.



 Larger micrometers can be expensive As a result of their size, micrometers used to take larger measurements can be very expensive compared to smaller micrometers.

Larger micrometers can be expensive

As a result of their size, micrometers used to take larger measurements can be very expensive compared to smaller micrometers.

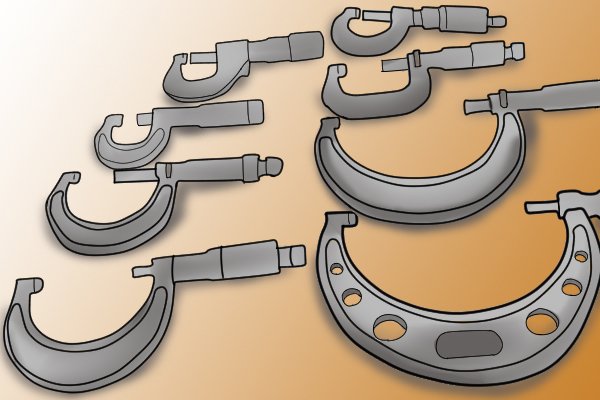

 Different types of micrometers are required for different measuring tasks Unlike dial calipers or vernier calipers which can take a number of different measurements (outside, inside, step and depth measurements), micrometers are only capable of performing a single measuring task. For instance, if you wanted to measure the diameter of a hole in a piece of wood as well as the outside width of that piece of wood, you would need both an inside micrometer and an outside micrometer.

Different types are required for different measuring tasks

Unlike dial calipers or vernier calipers which can take a number of different measurements (outside, inside, step and depth), micrometers are only capable of performing a single measuring task.

For instance, if you wanted to measure the diameter of a hole in a piece of wood as well as the outside width of that piece of wood, you would need both an inside micrometer and an outside micrometer.
