How does the scale of an
imperial micrometer work?

Shop for Micrometers

Measurements provided by a micrometer are made up of a combination of values taken from the sleeve scale, the thimble scale and, on some micrometers, the vernier scale. Measurements provided by a micrometer are made up of a combination of values taken from the sleeve scale, the thimble scale and, on some micrometers, the vernier scale.

Micrometer sleeve scale

The sleeve scale of an imperial micrometer has a measuring range of 1 inch. It is divided into increments of 0.025 inches and is numbered every 0.1 inches. The sleeve scale of an imperial micrometer has a measuring range of 1 inch.

It is divided into increments of 0.025 inches and is numbered every 0.1 inches.

Micrometer thimble scale

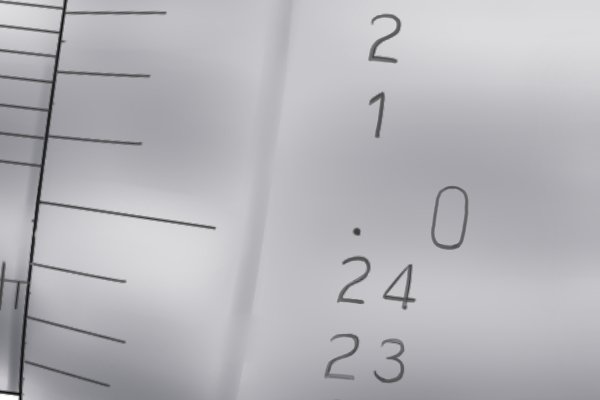

The thimble scale has a measuring range of 0.025 inches (the smallest value that can be measured on the sleeve scale). It is divided into 25 numbered increments, with each increment representing 0.001 inches (0.025 ÷ 25= 0.001). The thimble scale has a measuring range of 0.025 inches (the smallest value that can be measured on the sleeve scale).



It is divided into 25 numbered increments, with each increment representing 0.001 inches (0.025 ÷ 25= 0.001).

Micrometer vernier scale

Some also have a vernier scale on the thimble, which provides the user with readings of even greater accuracy (up to 0.0001 inches). The vernier scale has a range of 0.001 inches and is graduated in 10 numbered increments, each of which represents 0.0001 inches. Some also have a vernier scale on the sleeve, which provides the user with readings of even greater accuracy (up to 0.0001 inches).

The vernier scale has a range of 0.001 inches and is graduated in 10 numbered increments, each of which represents 0.0001 inches.
