What riveter sizes are available?
What riveter sizes are available? |
||||
 |

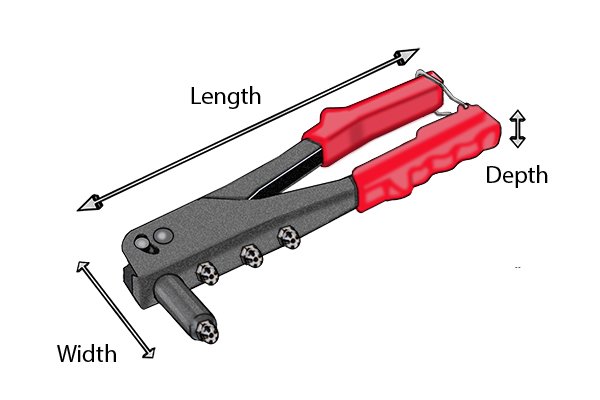

Riveters are measured by their width, length and depth. | |||
 |

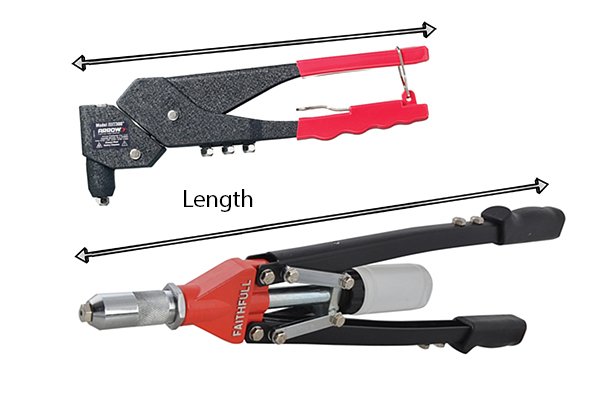

The lengths of most riveters range from 200 to 460mm (8 to 18″). | |||
 |

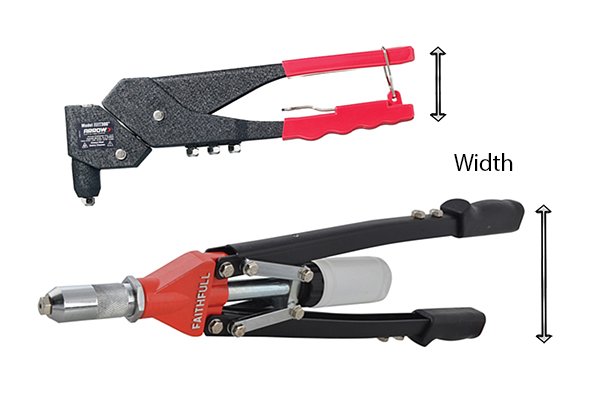

Riveter widths generally range from 80 to 240mm (3 to 9″). | |||
 |

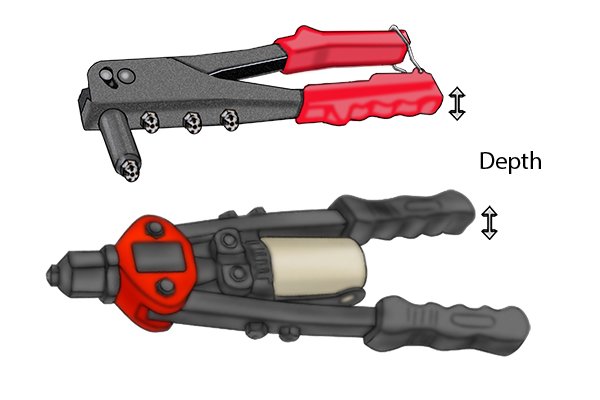

They normally range in depth from 20 to 58mm (1 to 2″). | |||
 |

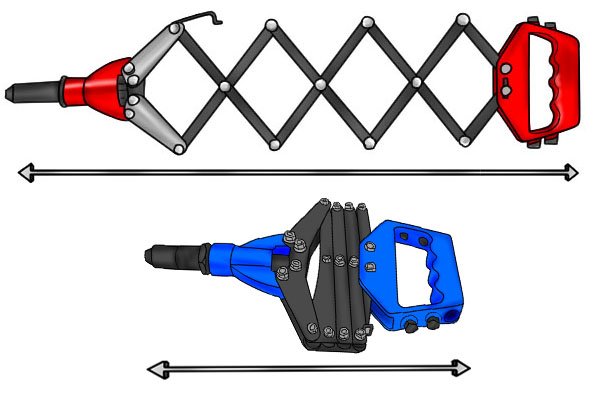

Lazy tong rivetersLazy tong riveter lengths range from 790 to 1220mm (31 to 48″) when stretched open. When closed, they range from 240 to 370mm (9 to 15″). |
|||
 |
The available widths for lazy tong riveters are from 140 to 200mm (5.5 to 8″). | |||
 |

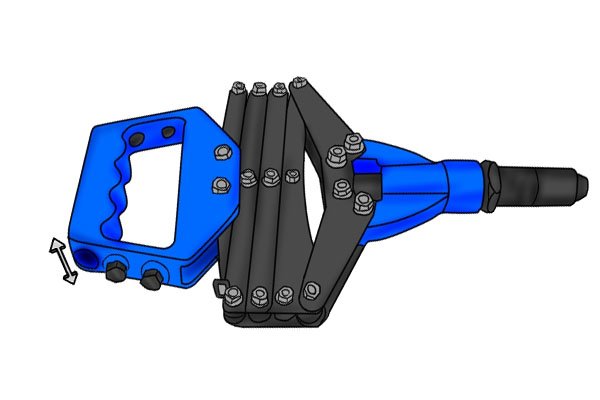

Lazy tong riveter depth varies from 35 to 54mm (1 to 2″). | |||

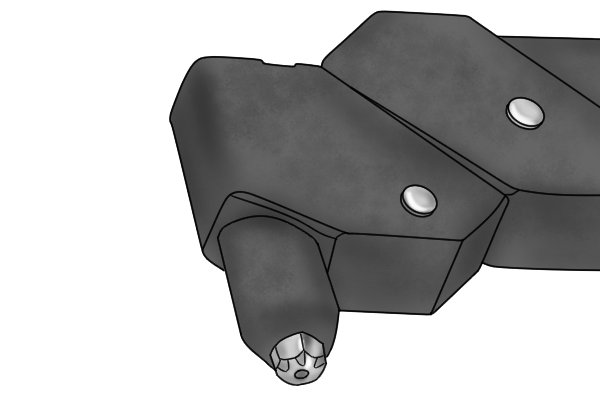

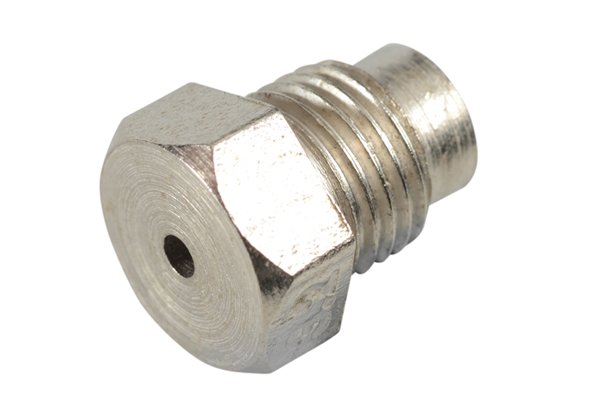

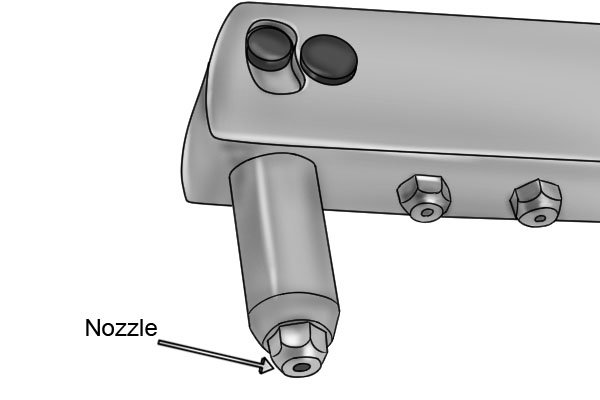

Nozzle sizes |
||||
 |

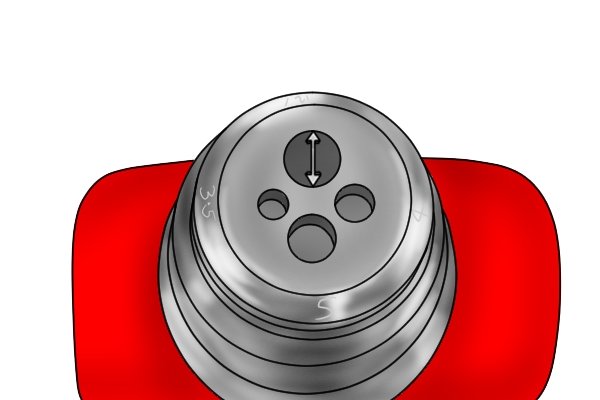

The nozzle sizes are just a guide for what diameter rivet you are able to install. Nozzles do not actually have the same diameter as their corresponding rivets – they have a diameter that is slightly bigger than the mandrel of that rivet.
For example, if you are installing a 4.8mm rivet, the nozzle size would be smaller, even though it’s called a 4.8mm nozzle. |
|||
 |
The nozzle diameters available are:
|
|||
 |
|
|||
 |
|
|||
