	What are the parts of a riveter?
			Shop for Rivet Guns

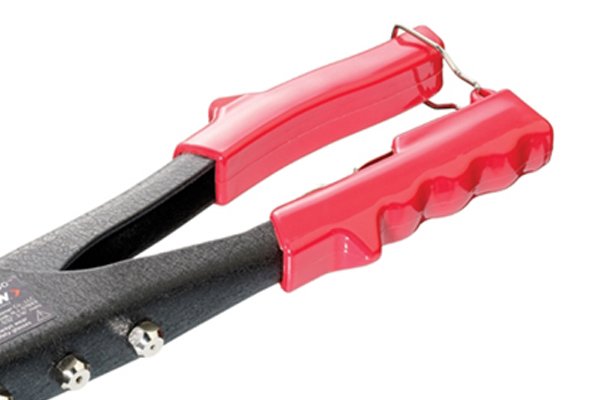

			Riveter handle
			The handle provides users with a comfortable grip while squeezing to install rivets.

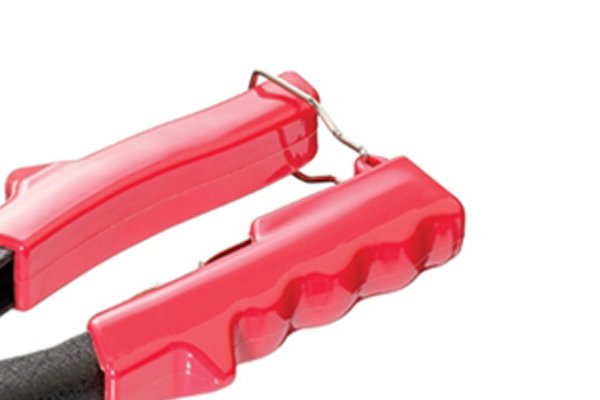

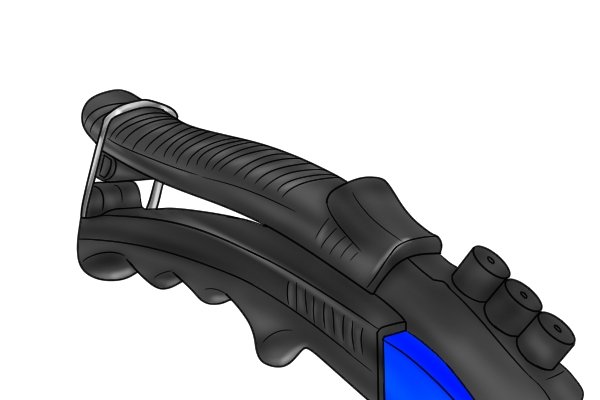

			Riveter handle lock
			The lock secures both handles together, making the riveter easier to store.

			Riveter long arm handles
			Riveters are available with long arm handles so that users can install rivets using two hands. The arms provide extra reach and the ability to apply more pressure when squeezing the handles.

			Riveter pistol handle
			This handle is similar to a pistol’s. The ergonomically styled handle has finger grooves which provide a comfortable and secure grip while installing rivets.

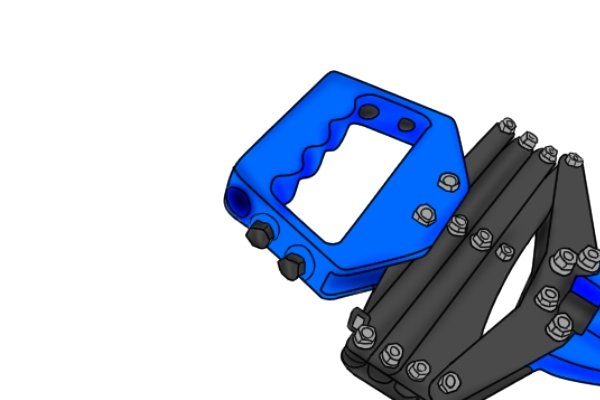

			Riveter one handed handle
			This type of handle – fitted to riveters with extending bodies (see below) – allows one hand to be used to install rivets. It has finger grooves for a comfortable grip.

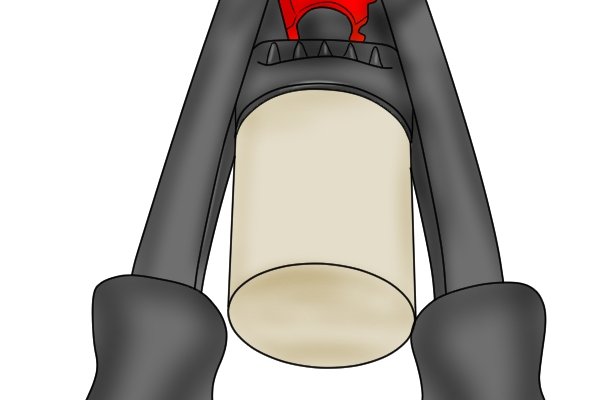

			Riveter mandrel collector
			The mandrel breaks away when the rivet is installed. On some types of riveter, mandrels are stored in a container between the handles, known as the mandrel collector, which saves them being scattered around the work area.

			Riveter head
			The head’s of many riveters can turn 360 degrees, enabling the nozzle to be positioned at any angle while the handles remain in a comfortable position for the user to squeeze.

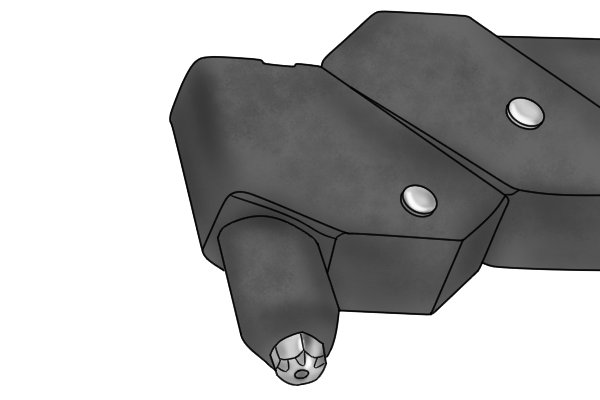

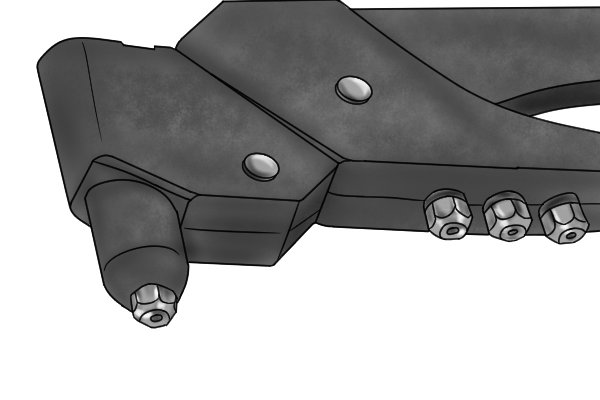

			Riveter nose
			The nose holds the nozzle which is used to hold the rivet while it is being installed.

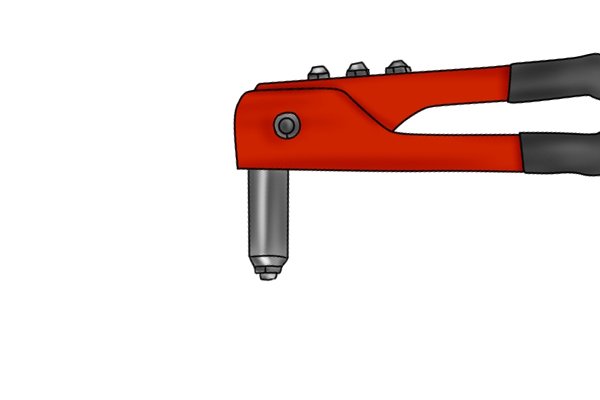

			Riveter long nose
			On some models, a longer nose provides extra reach for accessing recessed areas.

			Riveter nozzle
			The nozzle is the part of the riveter that grips and pulls the mandrel while the rivet is being installed. The nozzles are interchangeable so they can be used with different sized rivets.

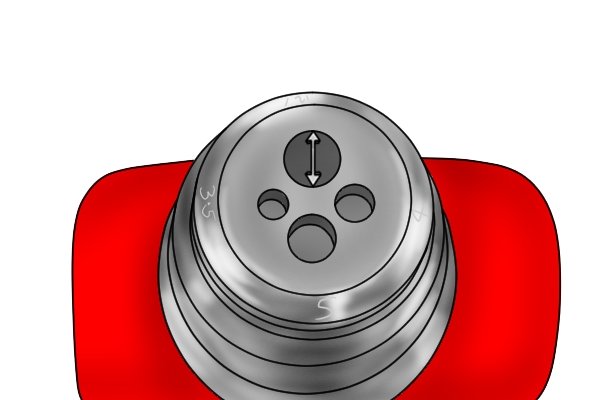

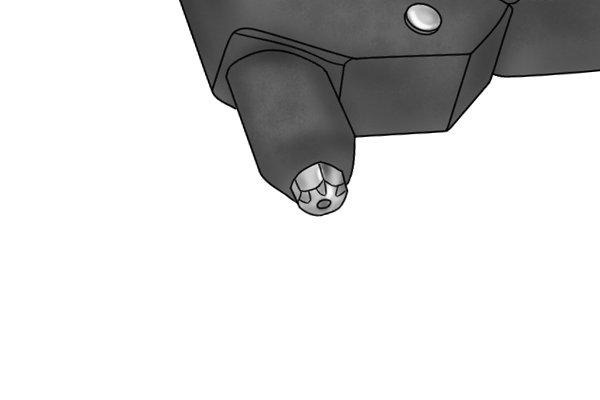

			Riveter adjustable nozzle
			Adjustable nozzles can handle four sizes. Turning the nozzle changes the size.

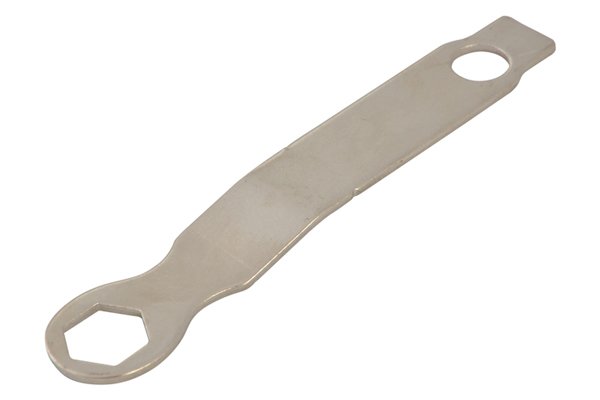

			Riveter spanner
			The spanner is usually attached to the body of the riveter. It can be detached and used to loosen or tighten the different sized nozzles which are attached to the nose of some types of riveter.

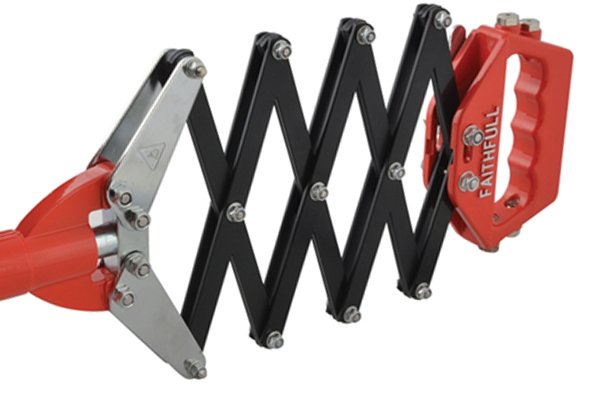

			Riveter extending body
			An extending body is used on certain types of riveter. The body is extended then pushed back on itself to install rivets.
