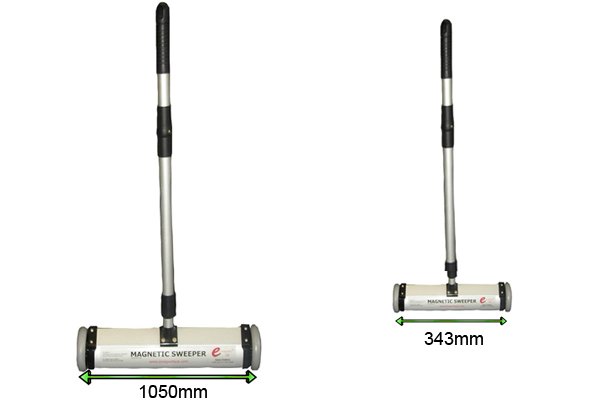

The overall width of a push magnetic sweeper is the distance between the two widest points. The overall width ranges from 343mm (13.5″) to 1050mm (41.3″).
The size of the magnet within the magnetic sweeper can range from 305mm (12″) to 914mm (12″-36″).

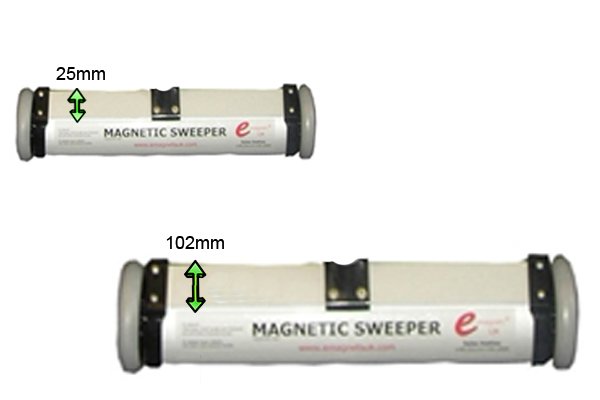

The depth measures how wide the end of the magnet is and can range from 25mm (1″) to 102mm (5″).

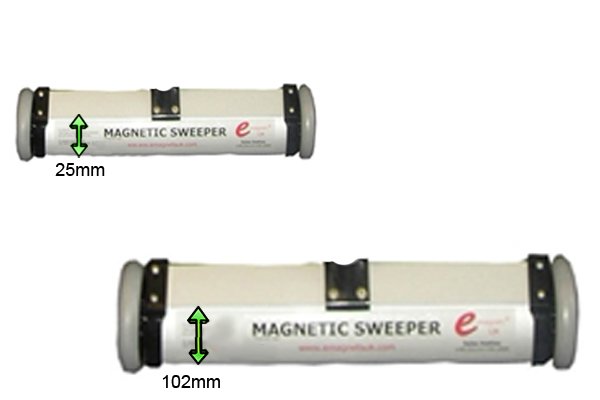

The height of the standard push magnetic sweeper measures how tall the casing of the magnet is and excludes the size of the handle. The height ranges from 25mm (1″) to 102mm (4″).

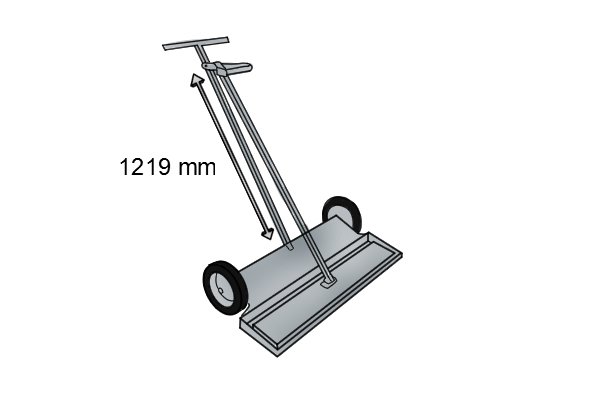

The length of handle is 1219mm (48″).
The wheel diameter measures the distance between the two widest points of the wheel. The wheel diameter ranges from 76mm (3″) to 250mm (9.8″).

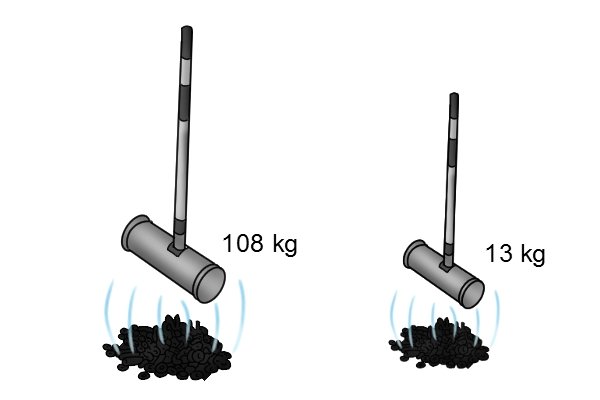

The magnetic pull ranges from 13kg (28lb) to 108kg (238lb)
Heavy-duty push magnetic sweepers

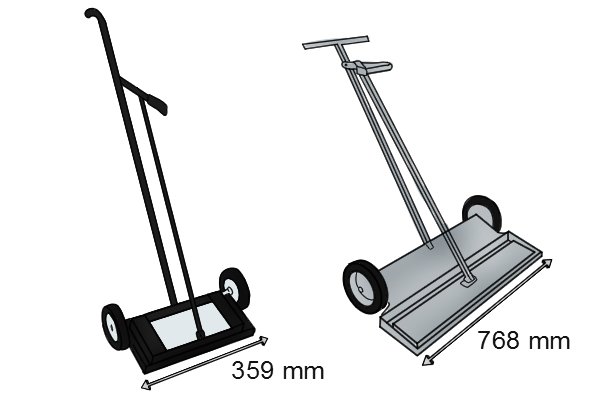

The overall width of a push magnetic sweeper is the distance between the two widest points. The overall width ranges from 359 (14.1″) to 768mm (30.3″).

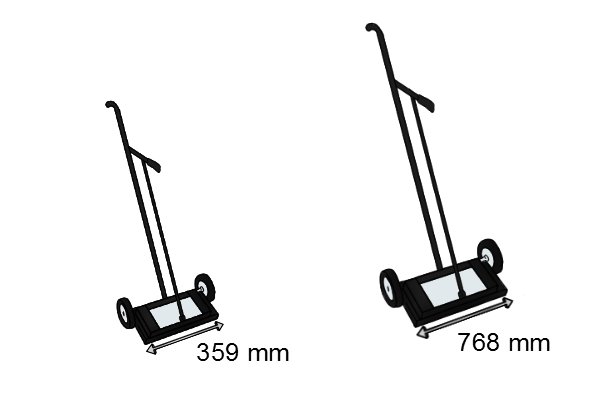

The size of the magnet within the magnetic sweeper can range from 356mm (14″) to 610mm (24″).
The height of the heavy-duty push magnetic sweeper measures how tall the casing of the magnet is and is 102mm (4″). The depth on the other hand measures how wide the edges of the magnet are and is 406mm (16″).
The length of the handle is 1219mm (48″).

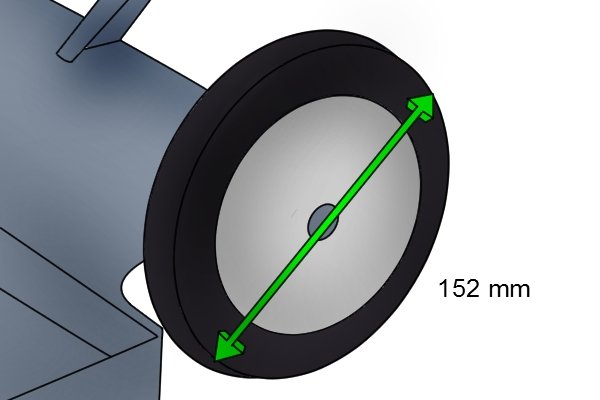

The wheel diameter measures the distance between the two widest points of the wheel and is 152mm (6″).

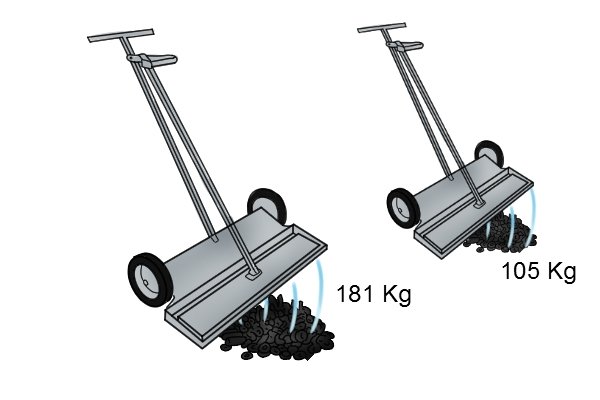

The magnetic pull ranges from 105kg (231lb) to 181kg (399lb)
