What is a through hole magnetic
mounting pad?

Shop for Magnetic Mounting Pads

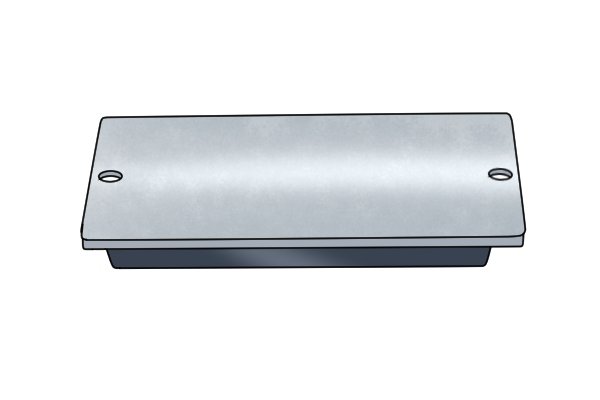

Through hole magnetic mounting pad A through hole magnetic mounting pad is a type of magnetic mounting pad which can be attached to a non-ferromagnetic object through the use of two through holes.
Wonkee Donkee says "A through hole is a hole which has been drilled all the way through a piece of material"

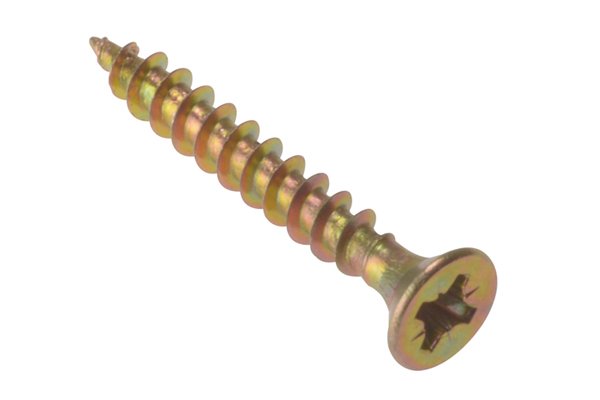

Screw A through hole magnetic mounting pad can be attached to a non-ferromagnetic material with the help of two screws. The screws are drilled into the through holes and the non-ferromagnetic material, to create a secure hold.

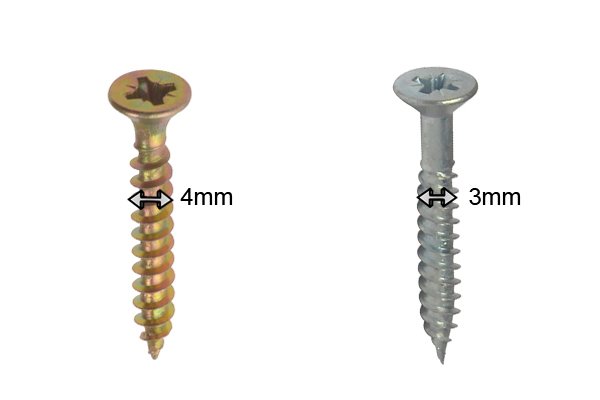

Two screws one with a gauge of 4mm, the other 3mm The best type of screw to use is a flat head screw, which has a gauge (shank diameter) of 3mm (0.12″) or 4mm (0.16″).

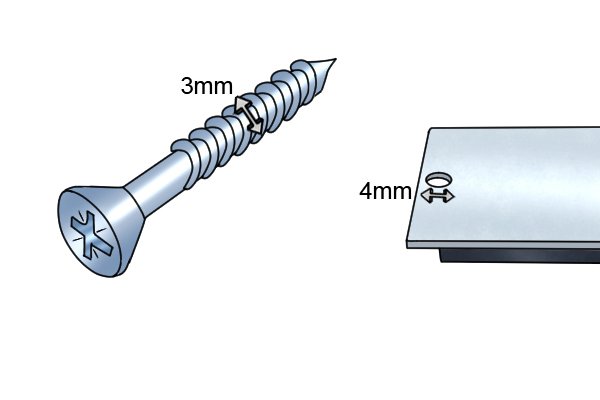

A flat head screw with a 3mm gauge and a 4mm through hole magnetic mounting pad This is because a magnetic mounting pad has a through hole diameter of either 4mm (0.16″) or 5mm (0.2″). A screw with a gauge of 1mm (0.04″) less than the through hole will provide a secure fit e.g. use a 3mm (0.12″) screw for a 4mm (0.16″) through hole.

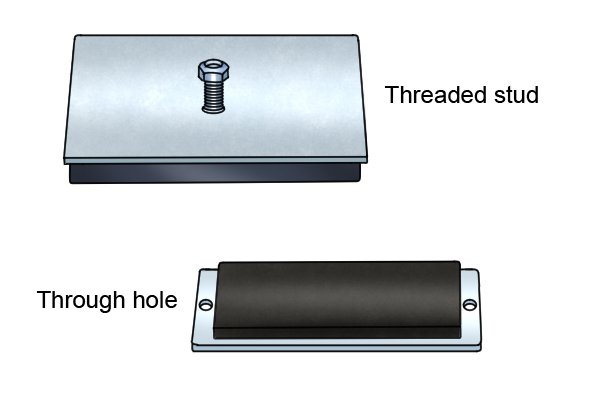

Threaded stud magnetic mounting pad and a through hole magnetic mounting pad A through hole magnetic mounting pad is particularly useful for holding small non-ferromagnetic materials such as a small taxi sign.

This is because the overall area of the through hole magnetic mounting pad is a lot smaller than the threaded stud magnetic mounting pad.

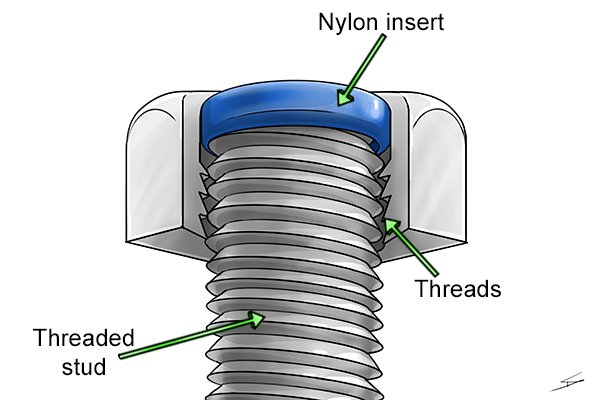

Threaded stud inside a nylon insert lock nut with labelled threads and nylon insert Also, a pair of screws would not be able to hold the material as securely as a threaded stud and nylon insert lock nut. This is because a screw can work its way loose, whereas a nylon insert lock nut cannot be moved, once it has been attached, without a sufficient level of force.
