How to Cut Angles with a Laminate Floor Cutter?

How to cut angles with a laminate floor cutter?

Shop for Laminate Floor Cutters
making an angled cut on laminate Before starting to cut laminate it is best to know what you are doing so that you don’t waste any material. Read our step by step guide to making an angled cut on laminate.
lay laminate floor cutter on steady surface

Step 1 – Stabilise cutter

Make sure the laminate floor cutter is placed on a sturdy surface.

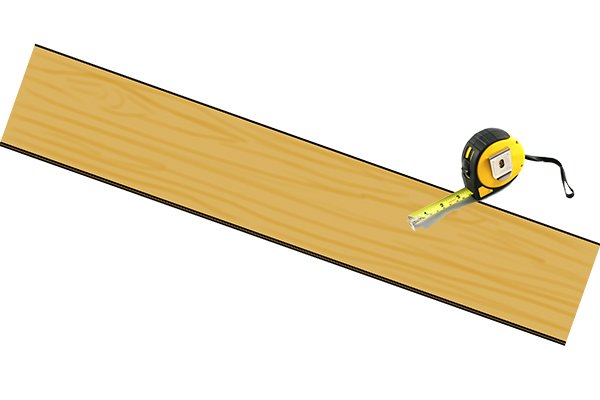

measuring laminate

Step 2 – Measure and mark

Measure and mark the piece of laminate to be cut.

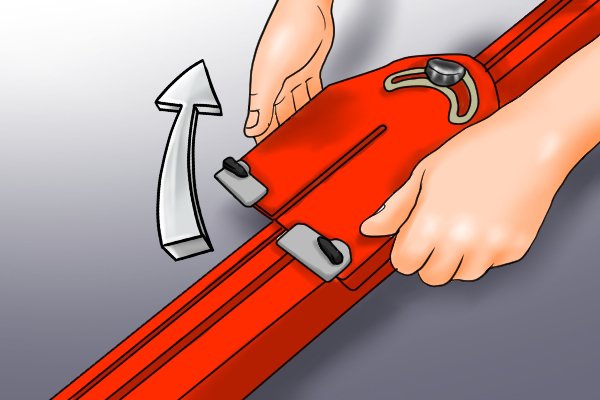

removing board stopper If necessary, remove the board stopper from the laminate floor cutter.
setting the angle lock on laminate floor cutter

Step 3 – Set angle lock

Set the angle lock to the desired angle. To do this, loosen the screw and rotate the dial until the arrow points to the desired angle, then tighten the screw again.

   the angle lock can be rotated up to 45 degrees in either direction
placement of laminate on cutter

Step 4 – Insert laminate

Lift the blade and place the laminate, finished side up.

setting the blade on the laminate floor cutter

Step 5 – Align laminate

Align the marking on the board with the edge of the blade. It is important that you have the side to be used on the outside of the blade, and he sliver the blade removes must be taken into consideration.

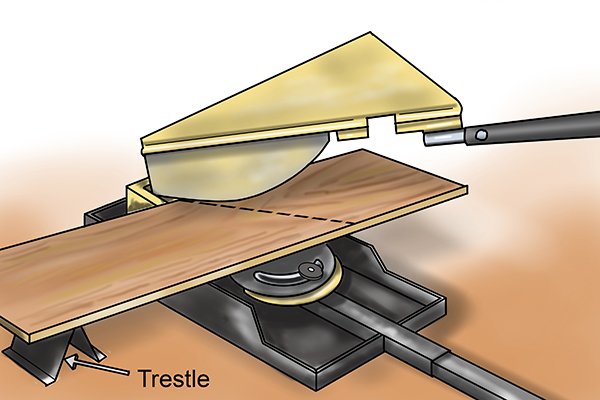

trestle placement for laminate floor cutter Place the trestle under the board if needed.
completing angled cut on laminate floor cutter

Step 6 – Begin cut

Lower the blade, using both hands.
