What are the parts of a chalk line?

What are the parts of a chalk line?

Shop for Chalk Lines

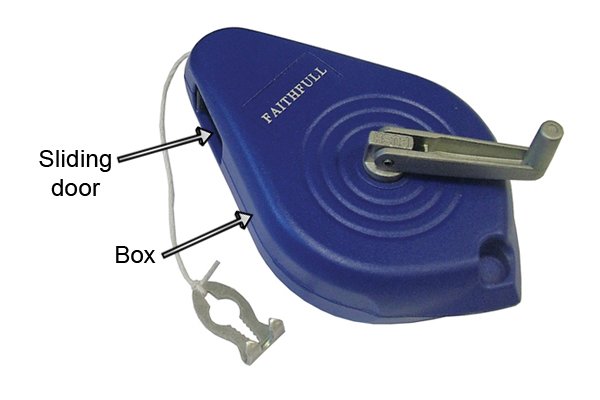

Chalk line with labelled parts, chalk line reel wonkee donkee tools DIY guide how to use a chalk line reel

Box

chalk line reel box and sliding door, wonkee donkee tools DIY guide how to use a chalk line The box of the chalk line is the part that holds the string line and chalk powder. There is typically a sliding door on the side of the box through which you can fill the box with chalk powder.

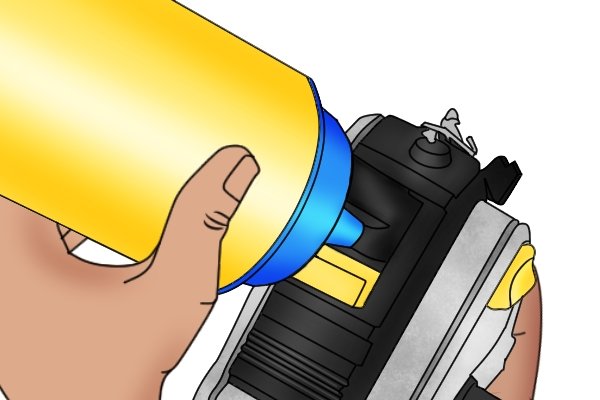

chalk line reel sliding door chalk powder wonkee donkee tools DIY guide how to use a chalk line

Door

The door is commonly found on the top or side of the box and usually has a small sliding panel which can be opened and closed.

String

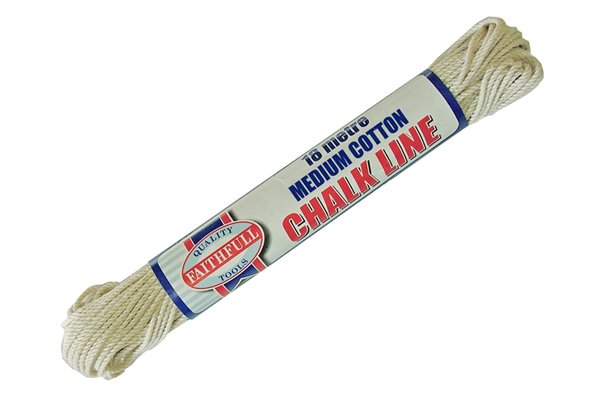

chalk line string reel, cotton string, wonkee donkee tools DIY guide how to use a chalk line The string or “string line” is the part of the chalk line that imparts the line of chalk onto the surface of the object. The string is coiled on an internal reel inside the box, and can be wound in via the crank.

The string used in chalk lines is typically thinner (2mm thickness) than regular string as this helps to make clean, crisp lines. Replacement strings are available.

Hook

chalk line hook, string line and tapered hole for hooking onto nails, chalk line reel chalk box wonkee donkee tools DIY guide At one end of the string is a small steel hook which is used to secure the string at the far side of the object or surface you want to impart a line on to. The hook has two claws which allow it to do this, as well as a tapered hole for hooking over nails and screws.

Reel

chalk line reel wonkee donkee tools DIY guide how to use a chalk line reel The reel (sometimes called the “spool”) is the part of the tool that the string line is wrapped around. It is similar to a fishing line reel and sits inside the box on a central axis.

Crank

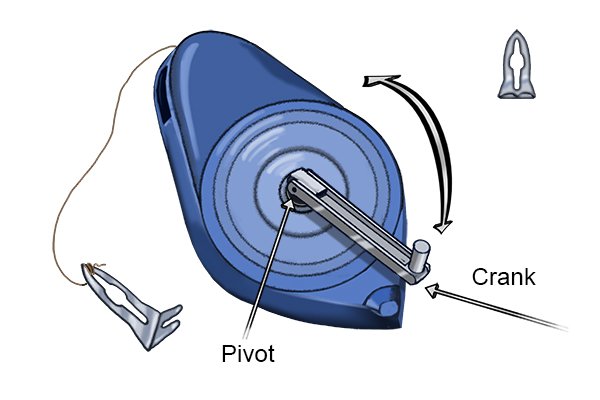

Chalk line reel crank lever rotate around the central access wonkee donkee tools DIY guide how to use a chalk line The crank is essentially a lever that you rotate to wind in the string line. It is attached to the box via a pivot pin which allows it to be rotated around its central axis, which, in turn, rotates the internal reel and winds in the string. The crank can also be flipped over 180 degrees for ease of storage.
