How to sharpen concave and convex cabinet scrapers

Shop for Cabinet scrapers

Cabinet scraper, card scraper, concave, convex, scraping, woodwork, DIYer, carpenter. When your concave and convex cabinet scrapers become difficult to run along the surface of your work or produces sawdust instead of shavings, this is the sign that they need sharpening.

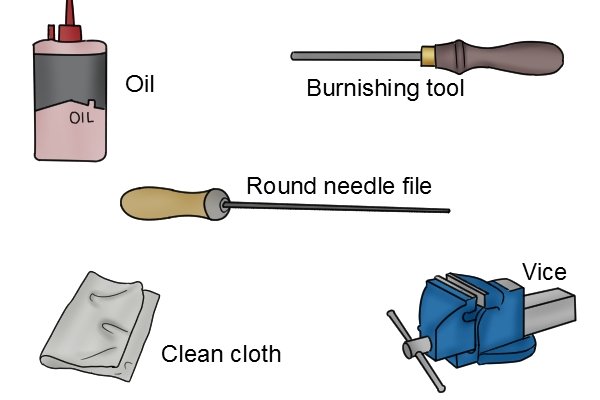

Cabinet scraper, card scraper, concave, convex, scraping, woodwork, DIYer, carpenter. The tools needed to sharpen the curved edges of the scrapers are a vice, a round file, a diamond stone, a burnishing tool, a piece of dowel, oil, a clean cloth and silicon carbide sandpaper.
Cabinet scraper, card scraper, concave, convex, scraping, woodwork, DIYer, carpenter.

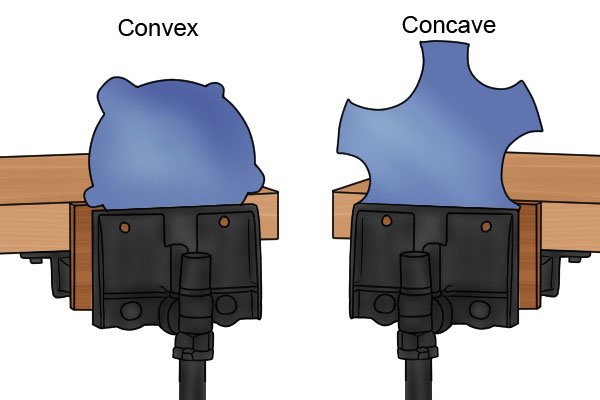

Step 1 – Clamp scraper

Clamp the scraper in a vice, with the edge you want to sharpen sticking out.

Cabinet scraper, card scraper, concave, convex, scraping, woodwork, DIYer, carpenter.

Step 2 – Filing curve

Run the round file forwards and backwards over the edge of the concave or convex curve and repeat until smooth.

Cabinet scraper, card scraper, concave, convex, scraping, woodwork, DIYer, carpenter.

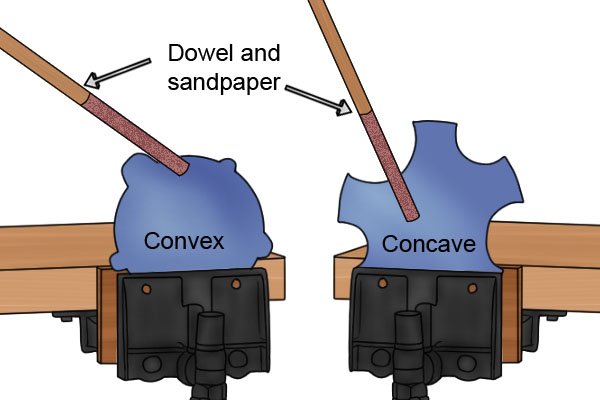

Step 3 – Sanding curve

Wrap the silicon carbide sandpaper around the dowel.

Run the dowel and sandpaper forwards and backwards over the edge of the curve. Repeat this action until the edge of the scraper is smooth.

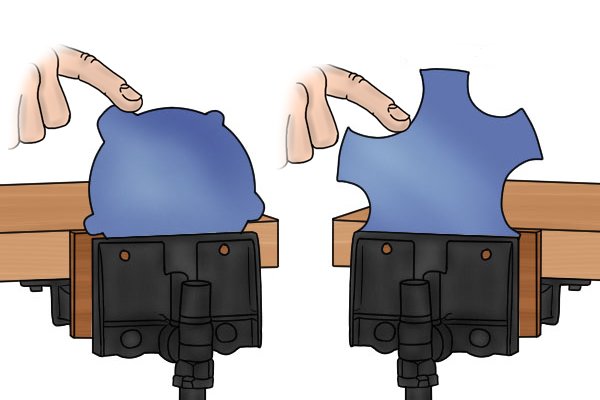

Test the smoothness by carefully running your finger along the edge of the scraper.
Cabinet scraper, card scraper, concave, convex, scraping, woodwork, DIYer, carpenter.

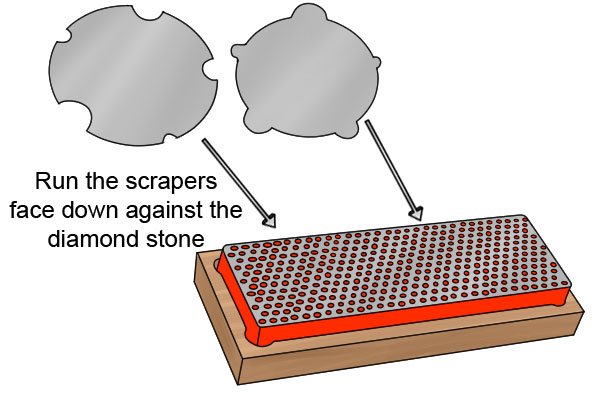

Step 4 – Remove burr (rough edge)

Place the diamond stone on a level surface. Lie the convex or concave scraper flat on its side against the stone.

Run the side of the scraper forwards and backwards a number of times to remove the burr (rough edge) created when filing and sanding the edges. Repeat on the other side.

Cabinet scraper, card scraper, concave, convex, scraping, woodwork, DIYer, carpenter.

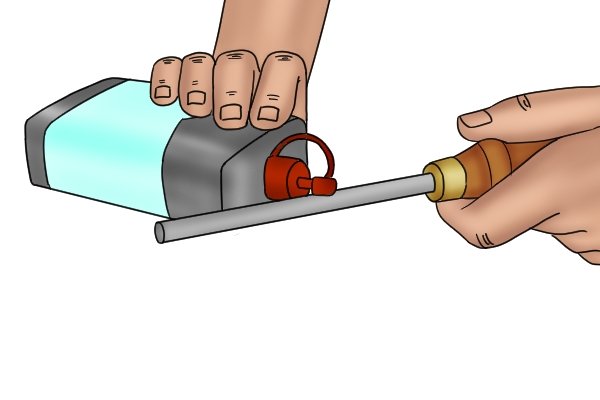

Step 5 – Apply oil

Apply oil to the burnishing tool.

Cabinet scraper, card scraper, concave, convex, scraping, woodwork, DIYer, carpenter.

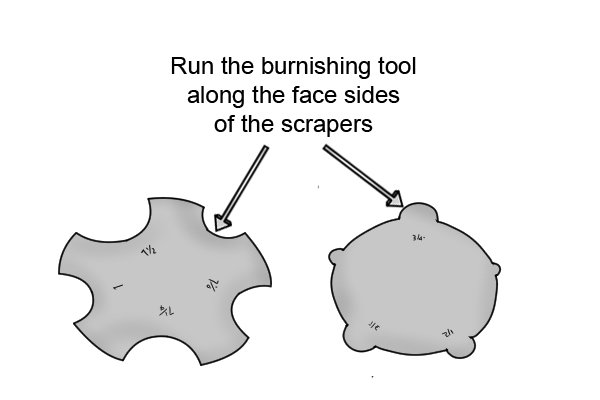

Step 6 – Burnish sides

Place the scraper on a level surface. Hold the scraper with one hand, then with the burnishing tool, press down and rub against the sides of the scraper.

Turn the burnishing tool over a couple of times, to make sure you use most of the oil. Repeat this on both sides of the scraper.

Cabinet scraper, card scraper, concave, convex, scraping, woodwork, DIYer, carpenter.

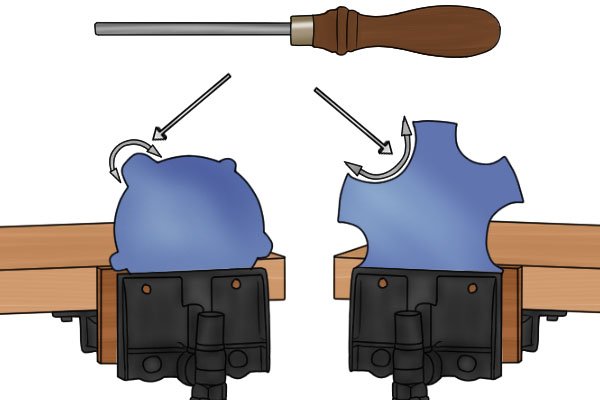

Step 7 – Burnish curved edges

Clamp the scraper in the vice.

Run the burnishing tool along the curved edge of the scraper, either towards you or away from you. The burnishing tool only needs to go over the edges once or twice.

Cabinet scraper, card scraper, concave, convex, scraping, woodwork, DIYer, carpenter.

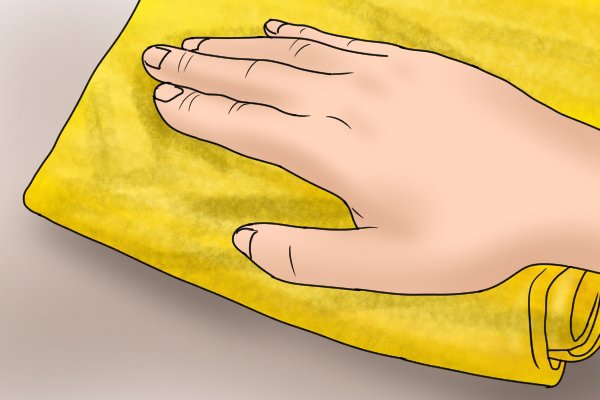

Step 8 – Wipe scraper

Use a clean cloth to wipe the edges of the scraper, to remove any leftover oil or material.

Cabinet scraper, card scraper, concave, convex, scraping, woodwork, DIYer, carpenter.

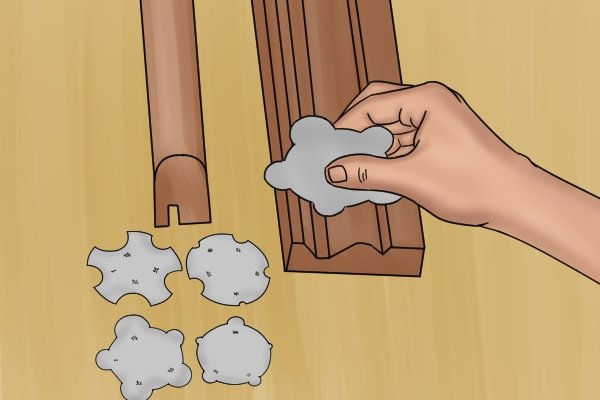

Step 9 – Test scraper

Using a scrap piece of wood, test the scraper to see if it’s sharp.

If the scraper produces shavings, then it is sharp enough. If it creates sawdust, it will have to be further sharpened.
