How to insert a blade into a two handled cabinet scraper?

How to insert a blade into a two-handled cabinet scraper

Shop for Cabinet scrapers

Cabinet scraper, card scraper, two handled cabinet scraper, insert blade, cast iron, high carbon steel, scraping, woodwork, carpenter, DIYer.

Step 1 – Place scraper

Place the cabinet scraper on a level surface.

Cabinet scraper, card scraper, two handled cabinet scraper, insert blade, cast iron, high carbon steel, scraping, woodwork, carpenter, DIYer.

Step 2 – Place blade

When placing the blade the cutting edge needs to slightly protrude through the mouth of the scraper body, just enough to catch the surface you will be scraping.

Loosen the retaining and clamping screws.

Cabinet scraper, card scraper, two handled cabinet scraper, insert blade, cast iron, high carbon steel, scraping, woodwork, carpenter, DIYer. Drop the blade between the clamping bar and the the body of the scraper, with the cutting edge facing towards the clamping screws.

This type of blade has only one cutting edge (burr) and not one on each side like other scrapers.

Cabinet scraper, card scraper, two handled cabinet scraper, insert blade, cast iron, high carbon steel, scraping, woodwork, carpenter, DIYer.

Step 3 – Tighten clamping and adjustment screws

Tighten the clamping screws slightly by turning them clockwise using your fingers.

Cabinet scraper, card scraper, two handled cabinet scraper, insert blade, cast iron, high carbon steel, scraping, woodwork, carpenter, DIYer. Turn the retaining screw clockwise to tighten and secure the blade in place.
Cabinet scraper, card scraper, two handled cabinet scraper, insert blade, cast iron, high carbon steel, scraping, woodwork, carpenter, DIYer.

Step 4 – Level blade

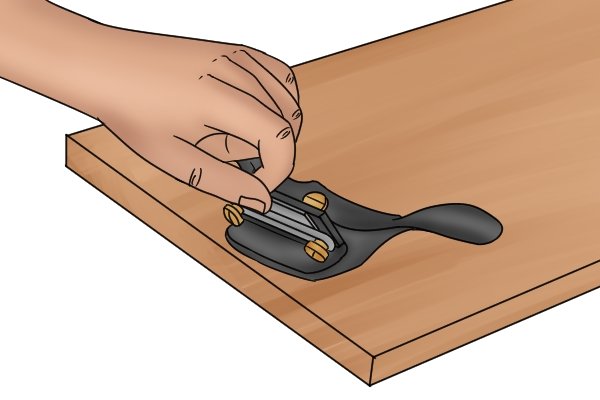

Use the end of your finger or nail to push the blade downwards to make sure the blade is level.

Cabinet scraper, card scraper, two handled cabinet scraper, insert blade, cast iron, high carbon steel, scraping, woodwork, carpenter, DIYer. Tighten the clamping screws using a flat head screwdriver.
