The following guide aims to provide help with changing a loose, worn or broken paver’s maul handle without causing damage to your new handle, your tools or yourself.
Replacing a handle may take time but it will certainly save you money and gives you the perfect excuse to work on your DIY skills.

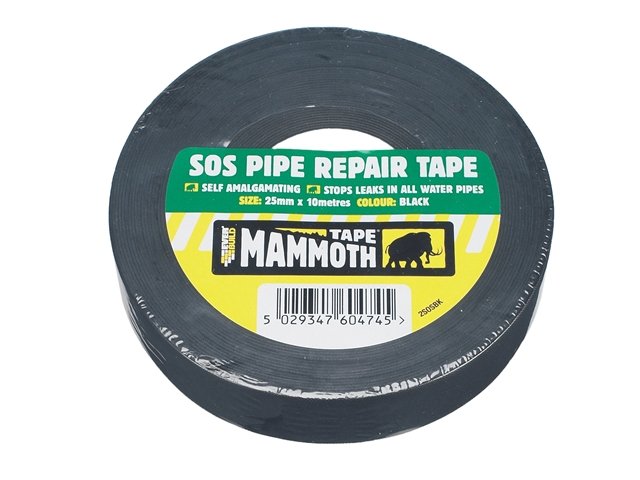

If your handle is rough to the touch, then repair it with waterproof grip tape or self amalgamating tape, to give you a stronger grip as well as protection against wear and tear.
However, you should replace the paver’s maul handle if it is splintered, broken or loose as a damaged handle is dangerous to use.
Removing a wooden handle secured with a wedge

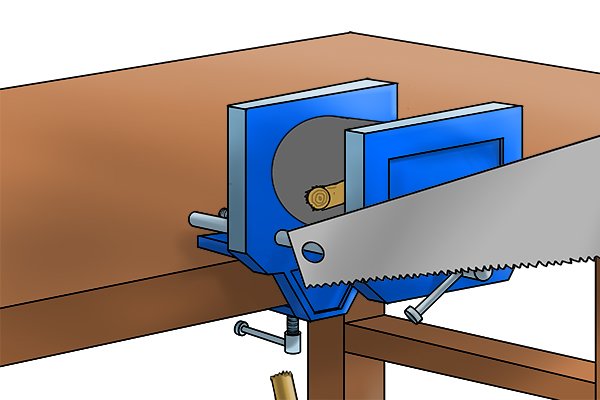

Step 1 – Secure in vice
Secure the maul head in a vice, protecting the head. Use a fine-toothed hand saw to cut off the old handle as close to the head as possible without damaging it.

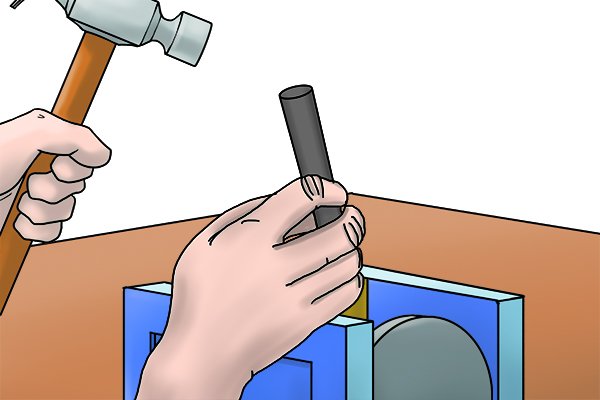

Step 2 – Remove remaining handle

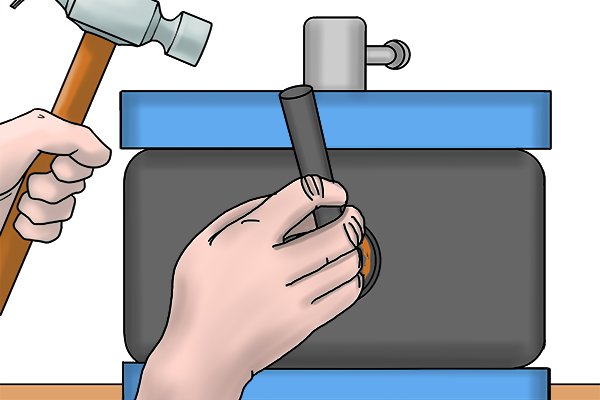

Remove the remainder of the handle with a hammer and a punch or a large bolt. This should ease out after a few taps with the hammer.
Step 3 – Loosen stubborn handle

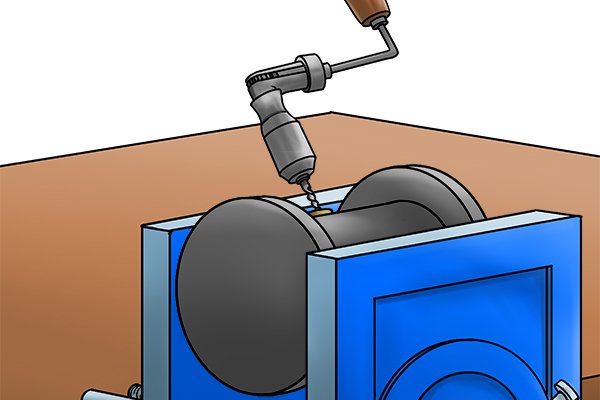

To loosen a stubborn piece of handle, use a drill with a 6mm (¼ inch) drill bit and drill through the wood several times. Then use a hammer and punch to drive out the remainder. Once this is removed, clean the eye of the paver’s maul head and remove any debris.
Removing a wooden handle fastened with glue
Repeat steps 1 to 3 above, drilling as much of the heandle out using a 6mm or larger drill bit to ease out the glued in wood. Use a chisel to chip away any remaining material and glue. Clean the eye of the head thoroughly.
Fitting the new wooden paver’s maul handle
Step 4 – Adjust handle to fit
Before you begin, check the new maul handle for size. Most replacement handles will not be a perfect fit and should be larger than required.

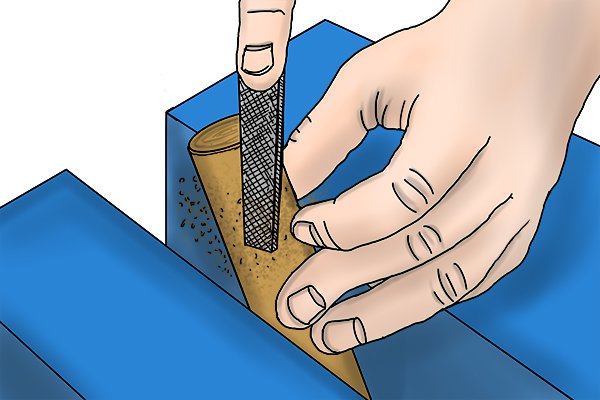

Use a wood rasp or file to adjust the handle to fit into the eye of the maul head, removing excess wood as necessary. The top of the handle should be tapered gradually ready to drive into the eye later; use the original shape of your new handle as a guide.
Step 5 – Check fit
Regularly try the handle for size to avoid taking off too much material. Aim for a tight push fit.

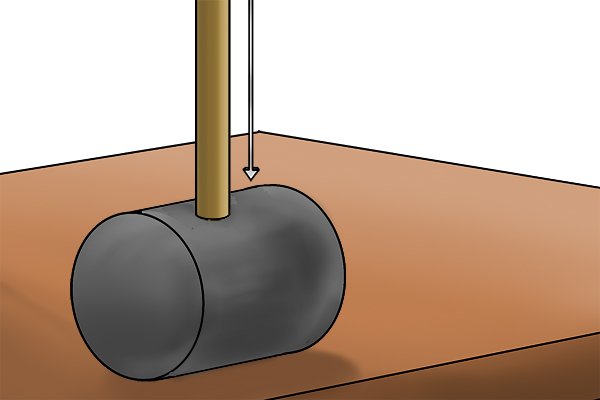

Step 6 – Insert handle

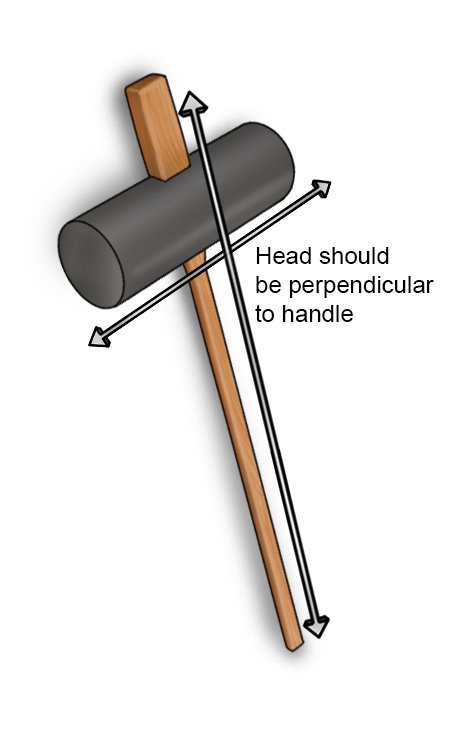

Insert the handle into the eye. Make sure the striking surface of the maul head is perpendicular or at right angles to the handle.
There should be a length of handle protruding through the head. If, however, it extends more than about 13mm (½ inch), saw off this extra.
Step 7 – Drive in wooden wedge
Replacement handles are usually accompanied with both a metal and a wooden wedge. If only a metal wedge is supplied, follow the instructions from step 8.

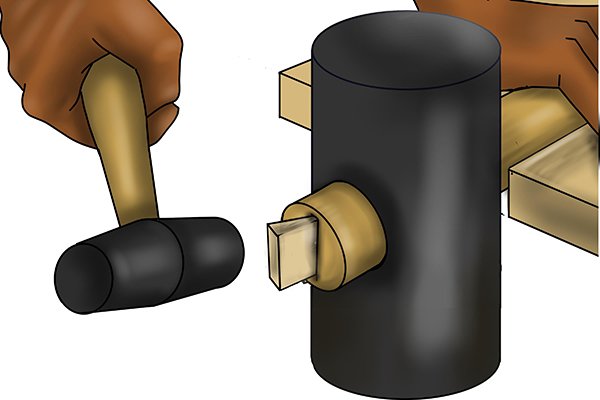

Once the handle is held firmly in the eye of the head, drive the wooden wedge into the slot with a mallet. This should be in the same direction as the head.
Note: You may need to open the wedge slot with a chisel (or create a new slot if you needed to trim the handle in which case use the cutoff as a guide).

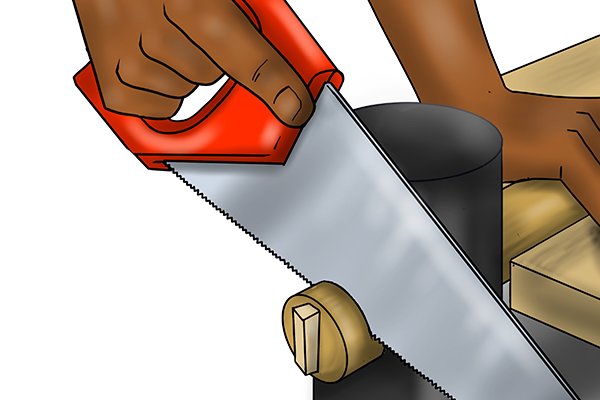

Step 8 – Saw off protruding handle
Saw off any protruding length of handle including wooden wedge, if used, until it is almost flush with the head. Use a fine-toothed saw to avoid damaging the maul head. Finish off with sandpaper for a clean finish.

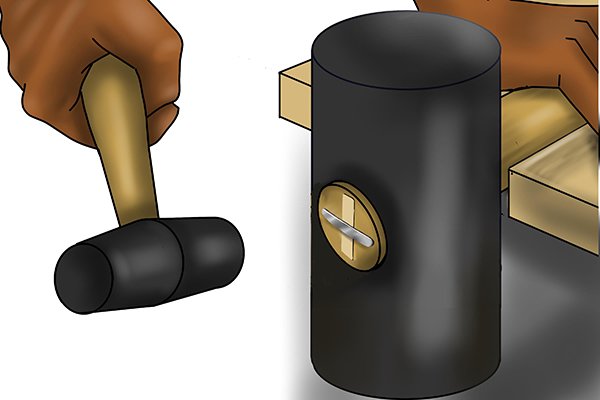

Step 9 – Insert metal wedge
It is important that the metal wedge is inserted. This ensures that the wooden handle expands to fit tightly in the eye of the maul head. Drive the metal wedge into the centre of the handle and perpendicular to the maul head.
Check that the handle is secure – if so, your maul is now ready to use.
