How to insert a mortar rake in an SDS plus drill?

Shop for Mortar Rakes

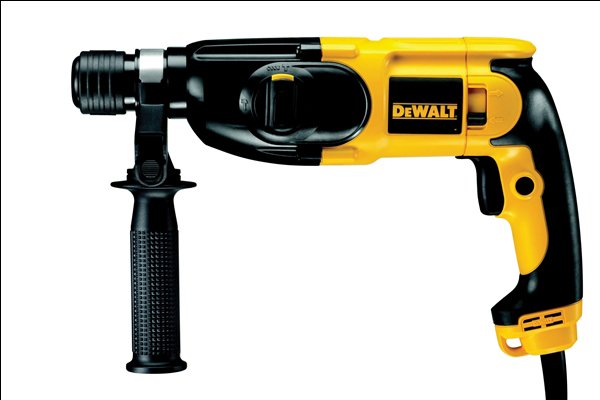

SDS Plus Drills On SDS plus drills, the chuck works differently to that on standard power drills.

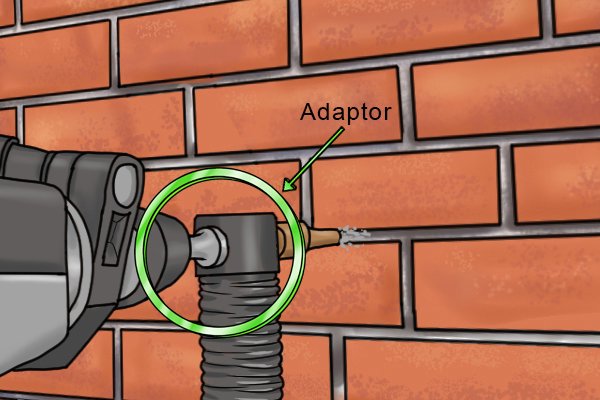

A mortar rake designed for an SDS Plus Drill needs to be screwed onto an adaptor that sits between the mortar rake and the SDS Plus Drills chuck As a result, a mortar rake designed for an SDS plus drill needs to be screwed onto an adaptor that sits between the mortar rake and the chuck.
dust extraction unit for an sds plus adaptor

Removing an old bit

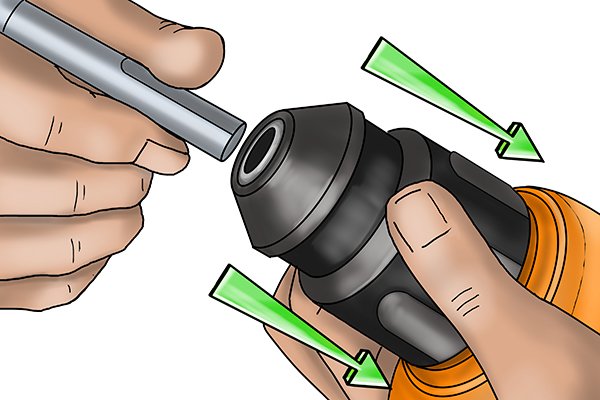

pull down the chuck sleeve

Step 1 – Pull down sleeve

To remove a bit from the chuck, pull down the chuck sleeve/outer collar.

Inserting a mortar rake

Push the drill into the chuck

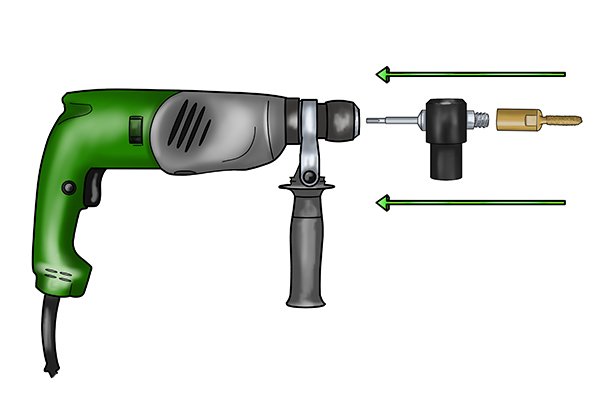

Step 1 – Install adaptor, mortar rake and dust extraction

A mortar rake screws onto an adaptor before being inserted into a SDS Plus Drill.



Step 2 – Install mortar rake

Push the mortar rake adaptor into the chuck.

turn the drill bit until it slots into place

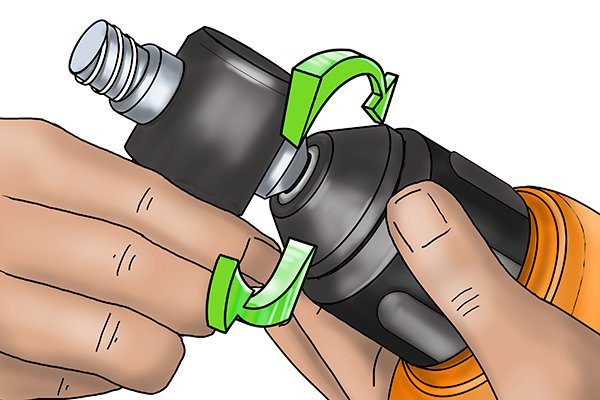

Step 3 – Turn adaptor

Turn the adaptor until it slots into place.

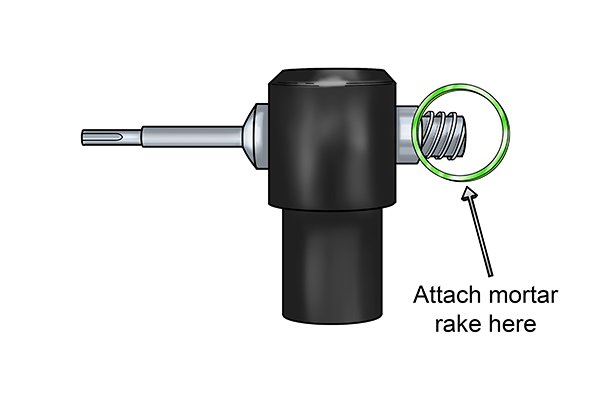

Onto the other end of the adaptor you screw the mortar rake !

Step 4 – Install mortar rake

On the other end of the adaptor, you can install the mortar rake.

insert dust extraction unit sds plus, adaptor and mortar rake all set up

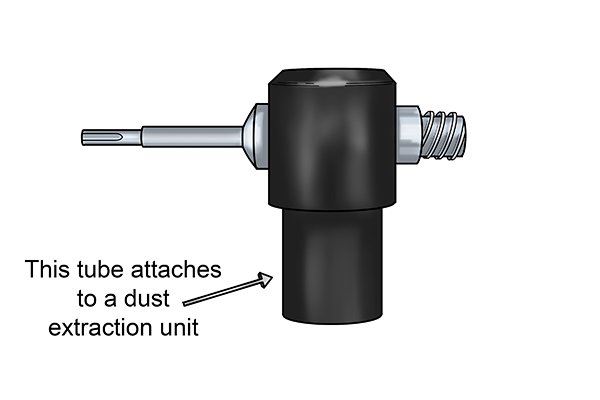

Step 5 – Attach dust extraction unit

To the adaptor you can then add a dust extraction unit.
