What are the parts of a magic mitre box?

What are the parts of a magic mitre box?

Shop for Mitre Boxes

   Wonkee Donkee The basic component parts of a magic mitre
Wonkee Donkee Magic Mitre is perfect for walls with unusual angles Most mitre boxes only allow for cutting mitre joints at specific angles, for example 22.5 degrees, 45 degrees and 90 degrees, but what do you do if your wall corner is not one of these angles?

The magic mitre box enables the user to measure the exact angle of a wall corner and then transfer this angle to the mitre box to ensure a very precise mitred joint.

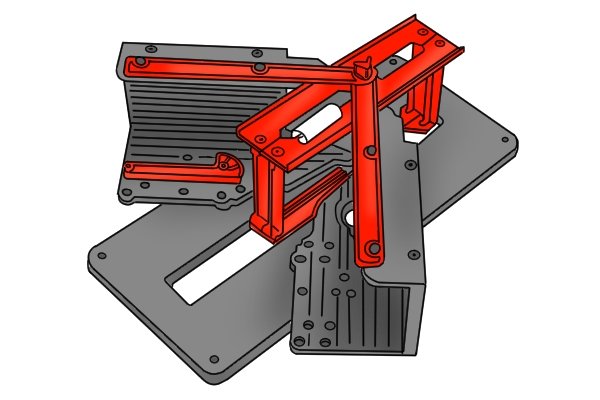

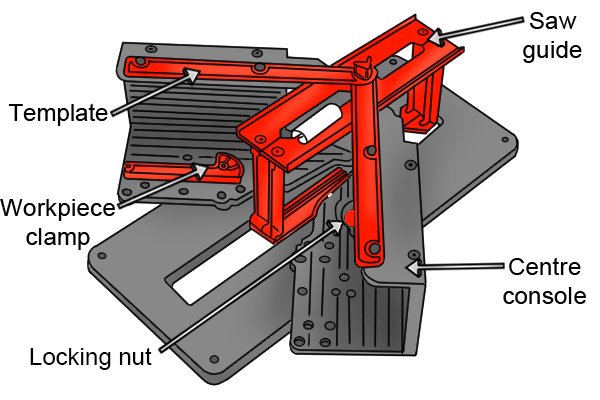

The individual parts that make up the magic mitre box are shown below.

Template

Wonkee Donkee Magic Mitre Template for measuring the exact angle of your wall The magic mitre box has a measuring template which can be removed and allows the user to measure the exact angle of a wall corner.
Wonkee Donkee Magic Mitre measuring template is used to measure the exact angle of a wall corner The template is placed against the corner to be measured and then mounted on the magic mitre box to set the angle to be cut.

Centre console

Wonkee Donkee The Magic Mitre centre console forms part of the main body of the mitre box The centre console of a magic mitre box forms part of the body of the tool. The centre console works in unison with the template to fix the angle of the cut on the workpiece.

Locking nut

Wonkee Donkee Magic Mitre locking nut secures the angle of the mitre box Once the angle is set using the template, the centre console is locked into position by turning the locking nut and the template can then be removed. Turn the locking nut clockwise to lock the centre console and anticlockwise to unlock the console.

Saw guide

Wonkee Donkee Magic Mitre saw guide ensures an accurate and precise cut every time By inserting your saw into the centre groove of the saw guide you will obtain an exact angled cut that matches the wall that has been measured by the template.

Workpiece clamp

Wonkee Donkee The workpiece clamp holds your workpiece firmly and securely in the magic mitre The workpiece clamp holds your workpiece firmly and securely in the magic mitre box, enabling a precise cut to be made.
