How to install an Essex flange into a
hot water cylinder using a hole saw



 Shop for Hole saws


 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

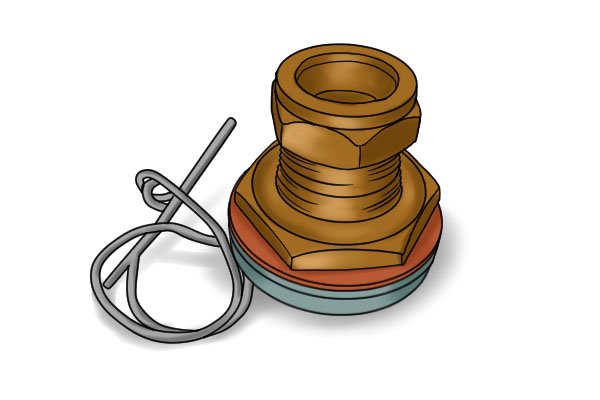

An Essex flange is used to add extra connections to a hot water cylinder (for example: a power shower connection).



Note: a piece of wire is always supplied with an Essex flange, and it is essential you have it for the installation process.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

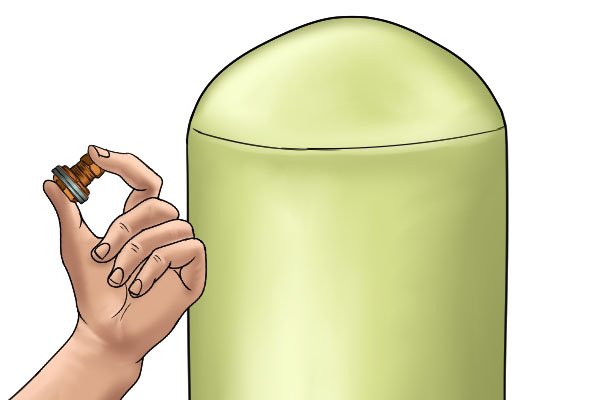

Step 1 - Disassemble Essex flange

Position yourself in front of the cylinder that you wish to add a connection to and have your Essex flange ready (all parts disassembled from the main body).



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Step 2 - Cut hole in lagging

Take a utility knife and cut a square hole out of the lagging (insulation). Make sure your hole is an inch or two below the top seam of the cylinder.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Step 3 - Pry out lagging

Pry out the cut lagging with a screwdriver.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Step 4 - Draw circle

Draw a circle around your brass washer.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Remember to make sure it is about an inch below the cylinder seam. You do not want to cut into the cylinder seam as this will fundamentally weaken the immersion heater.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

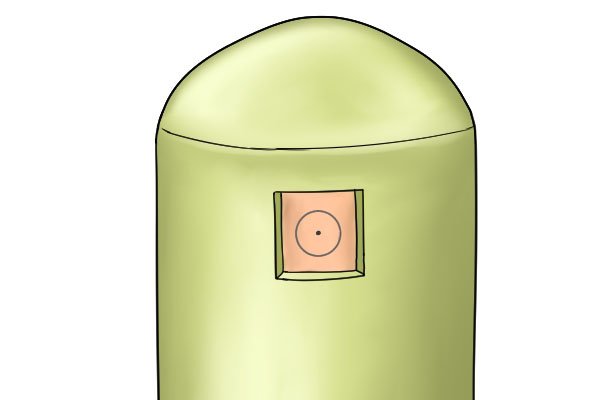

Step 5 - Mark centre point

Mark a dot in the centre of the circle you have just drawn.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

You can do this by eye or measure it with a ruler to be precise.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Step 6 - Drill pilot hole

Drill a pilot hole through the central dot. You can use the pilot drill bit on your hole saw (if it has one).



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Step 7 - Select correct sized hole saw

Choose a hole saw that is the same size as the diameter of the body of your Essex flange.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Step 8 - Cut out hole

Using the pilot hole as a guide, cut a hole into the body of your cylinder. (This should leave a space between the drawn circle and the hole which is roughly the same size as your brass washer).



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

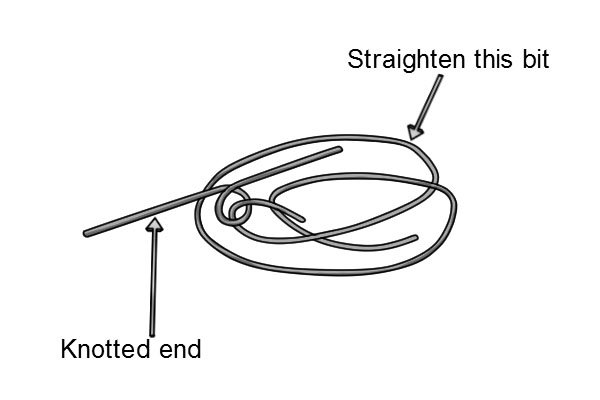

Step 9 - Straighten wire

Take your piece of wire and straighten it out. Make sure the knotted end of the wire remains knotted and the arms stick out.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Step 10 - Insert wire

Insert the wire through the body of your Essex flange so that when you hold the wire by its straight end, the Essex flange dangles but does not fall off the wire. A bit like if you were playing conkers.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

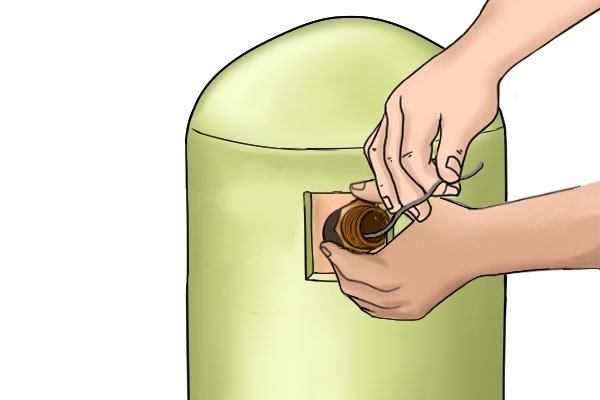

Step 11 - Insert Essex flange

Insert the Essex flange into your newly-cut hole (lug end first).



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Once the Essex flange is inside the cylinder, do not let go of the wire.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

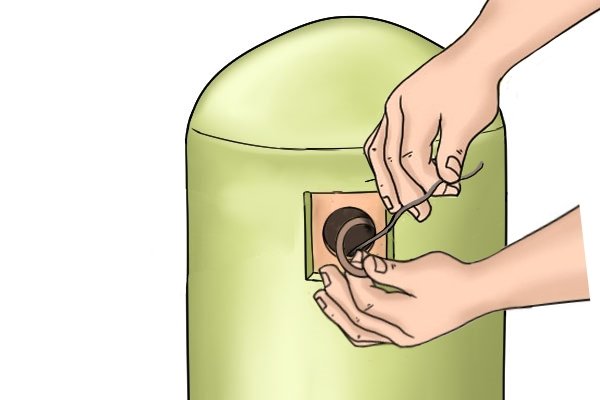

Step 12 - Internal brass washer (split)

Take your internal brass washer, slip it over the end of the wire and insert it through the hole.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

The internal brass washer has a split in it so that you can slip it into the immersion heater cylinder in a similar way to putting a key onto a keyring.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Step 13 - Insert rubber washer

Take your internal rubber washer, slip it over the wire and insert it through the hole. You will need to bend it to fit it through the hole.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Step 14 - Pull wire

Pull the wire until the threads of the Essex flange protrude back out of the cylinder. Do not pull too hard.



This will secure the two internal washers against the immersion heater cylinder wall.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Step 15 - External rubber washer

Slip the external rubber washer over the wire and over the threads of the Essex flange.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

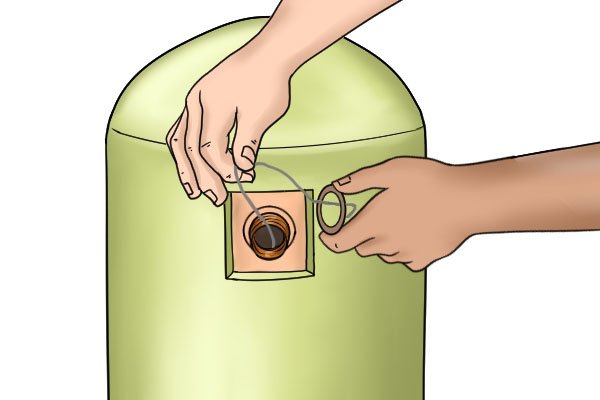

Step 16 - External brass washer (solid)

Slip the external (solid) brass washer over the wire and over the threads of the Essex flange.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

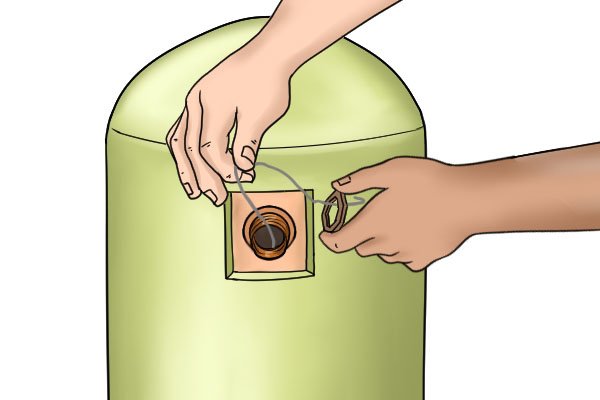

Step 17 - Back nut

Slip the back nut over the wire and begin to screw it onto the threads of the Essex flange body.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

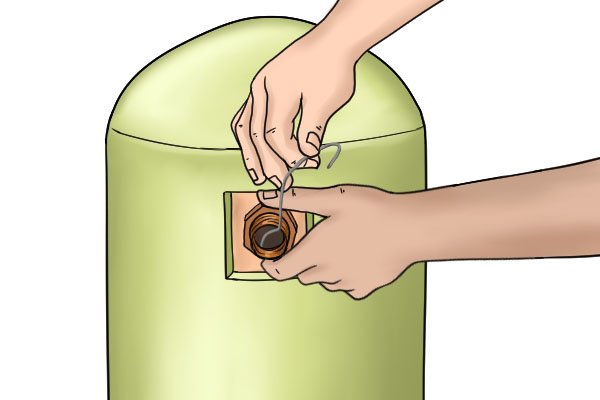

Step 18 - Tighten

Tighten the back nut by hand. This will secure all of the parts in place and you can let go of the wire.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Using a pair of mole grips or a spanner, fully tighten the back nut.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Step 19 - Pull wire back through

Pull the wire back out through the hole. You may need to pull quite hard to bend the knotted end and arms.



 Hole saw, hole cutter, annular saw, cutting tools, wonkee donkee tools DIY guide how to use a how hole saw

Step 20 - Screw on nut

Screw on the final nut and your job is done.
