What are the parts of bolt cutters?

Shop for Bolt Cutters

Diagram of bolt cutter parts showing position of tool blades, jaws, neck, handles, handle grips and stops and blade adjustment bolts

Jaws

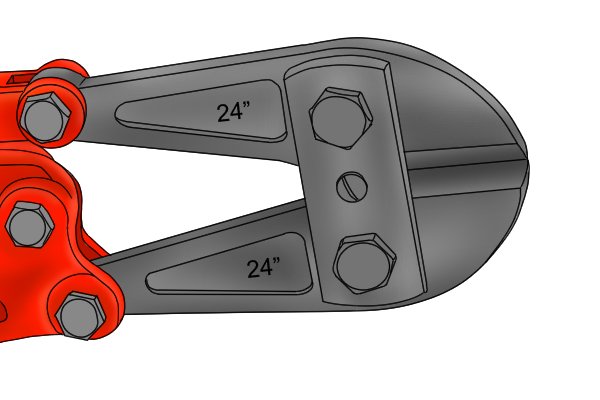

The jaws of a pair of red bolt cutters The jaws form the head of a pair of bolt cutters and are forged separately from the handles. The part of the tool where the blades are connected to the handles is called the neck. They are secured in place by a pair of bolts. By contrast, compact bolt cutter blades and the handle diagonally opposite are forged in one piece and connected by a single bolt, much like a pair of scissors or shears.

Blades

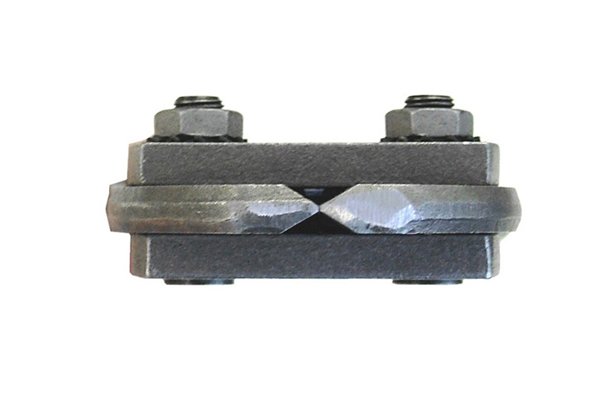

Bolt cutter jaws, head on, with centre cut blades The blades are the actual cutting surfaces of the jaw section. They are made to be extremely hard and they come in a variety of configurations (such as centre cut or shear cut) to make them suitable for different uses.

For more information on bolt cutter blades, see: What are the different types of bolt cutters?

Joints

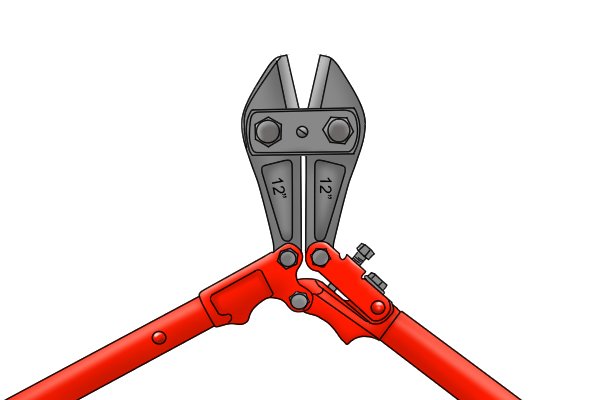

Diagram of bolt cutter hinges, showing jaw joint bolts, middle bolts and handle bolt. The multiple joints on most bolt cutters are vital to the tool’s strength, as they compound – or multiply – the force applied to the handles.

There are three key joints: the handle bolt (which connects the two handles), the middle bolts (which attach the jaws to the handles) and the jaw joint bolts (which keep the blades aligned).

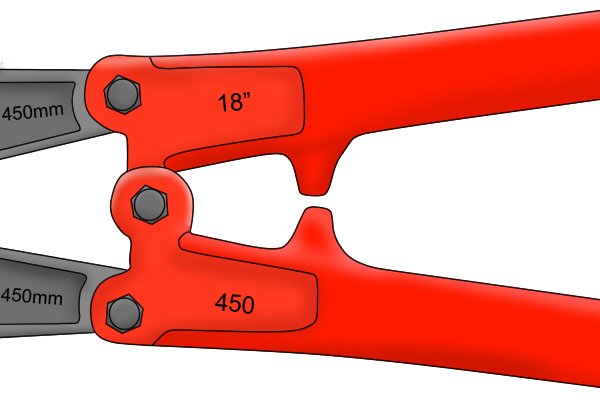

Head of pair of bolt cutters with multiple pivotal joints allowing movement back and forth of blades All three joints act as pivots when the jaws are opened and shut, and this compound arrangement helps to magnify the force that the user applies to the handles of the tool much more than a single hinge would. The jaw joint bolts are subject to great strain from different directional forces as they allow the jaws to open while holding them flat.

Adjustment bolts

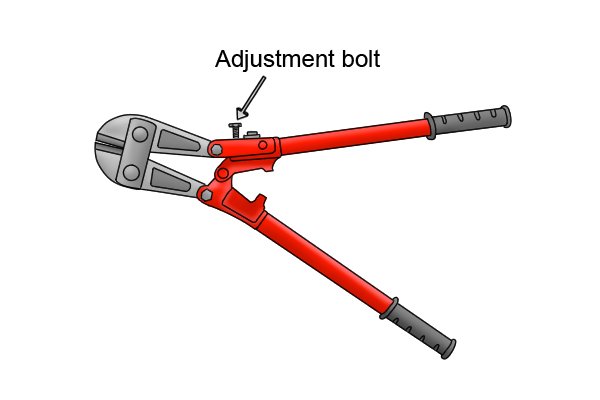

Red bolt cutters with blade adjustment bolt labelled at neck. Most bolt cutters (except fixed-head compact types) have one or two adjustment bolts on the neck which can alter the angle of the blade they are closest to. Where tools have two bolts, both blades can be adjusted.
Labelled picture of adjustable jaw joint bolts on a pair of bolt cutters In addition, the bolts on the jaw plates can be turned to adjust the gap between the blades.
Image of an eccentric bolt, showing the off-centre shank and the shape of the head These are all “eccentric” bolts, which means they have an irregularly-shaped shank, similar to a cam. Turning the bolt moves one of the bolt cutter blades. Adjusting the jaws with either set of bolts can help to compensate for sharpening, or fine-tune your bolt cutters to allow them to fit around thicker pieces of material.
Man examining his bolt cutters while held in a vice so that he can adjust them using the neck adjustment bolt For more information on how this works, and on setting up your bolt cutters so the blades are the correct distance apart, see: How to adjust the jaws on bolt cutters.

Handles

Builder holding red, long-handled bolt cutters Bolt cutter handles vary both in length and in the material they are made from. This makes a significant difference to their weight and usability. Longer lengths are helpful for cutting materials which are down low, up out of reach or require a large amount of force, while short pairs are lightweight and useful for thinner materials which are easily within range.

Handle stops

Handle stops on orange, long-handled bolt cutters Regular long-handled bolt cutters often have a pair of metal protrusions (or “stops”) at the neck or a short way down the handles. These prevent the handles – and hence also the blades – moving too close together and overlapping at the end of a cut.

Handle grips

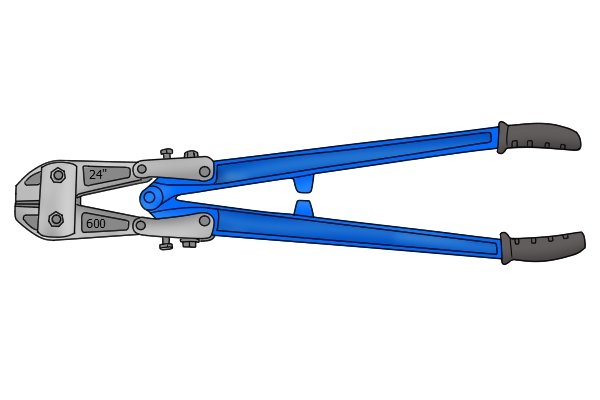

Long-handled blue bolt cutters with black handle grips For extra comfort and tool control, most long-handled bolt cutters have grips at the end of the handles.
