What are trammel heads used for?

What are trammel heads used for?

 Shop for Trammel Heads

Trammel heads are used in layout work to scribe circles and arcs that are too large to be drawn with a divider or compass. Trammel heads are used in layout work to scribe circles and arcs that are too large to be drawn with a divider or compass.
Wonkee Donkee says: 'What is a divider? A divider is a tool used to scribe arcs or circles. It has two sharp points held together by a spring, which is adjusted by a screw and nut.'

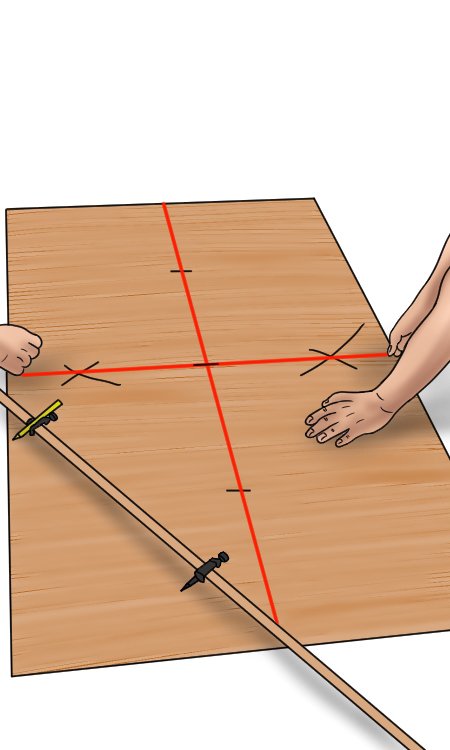

Trammel heads can also be used to bisect lines and angles. Trammel heads can also be used to bisect lines and angles.

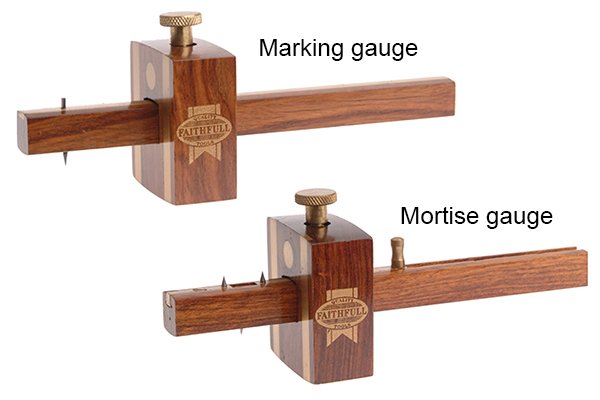

They can be used as an alternative to both a marking gauge and a mortise gauge to draw lines a set distance from an edge. See How do you use trammel heads as a marking gauge? and How do you use trammel heads as a mortise gauge? They can be used as an alternative to both a marking gauge and a mortise gauge to draw lines a set distance from an edge.See How to use a trammel head as a marking gauge and How to use a trammel head as a mortise gauge
Like dividers, when used with a beam, trammel heads are an effective transfer measuring tool. The trammel points are positioned on either side of an object or set distance. The distance between the trammel points is then checked against a measuring device like a ruler. Like dividers, when used with a beam, trammel heads are an effective transfer measuring tool. The trammel points are positioned on either side of an object or set distance. The distance between the trammel points is then checked against a measuring device like a ruler.
